Xerox WorkCentre 5687 Installation Guide

Installation
Xerox® Smart Card
Installation Guide
31

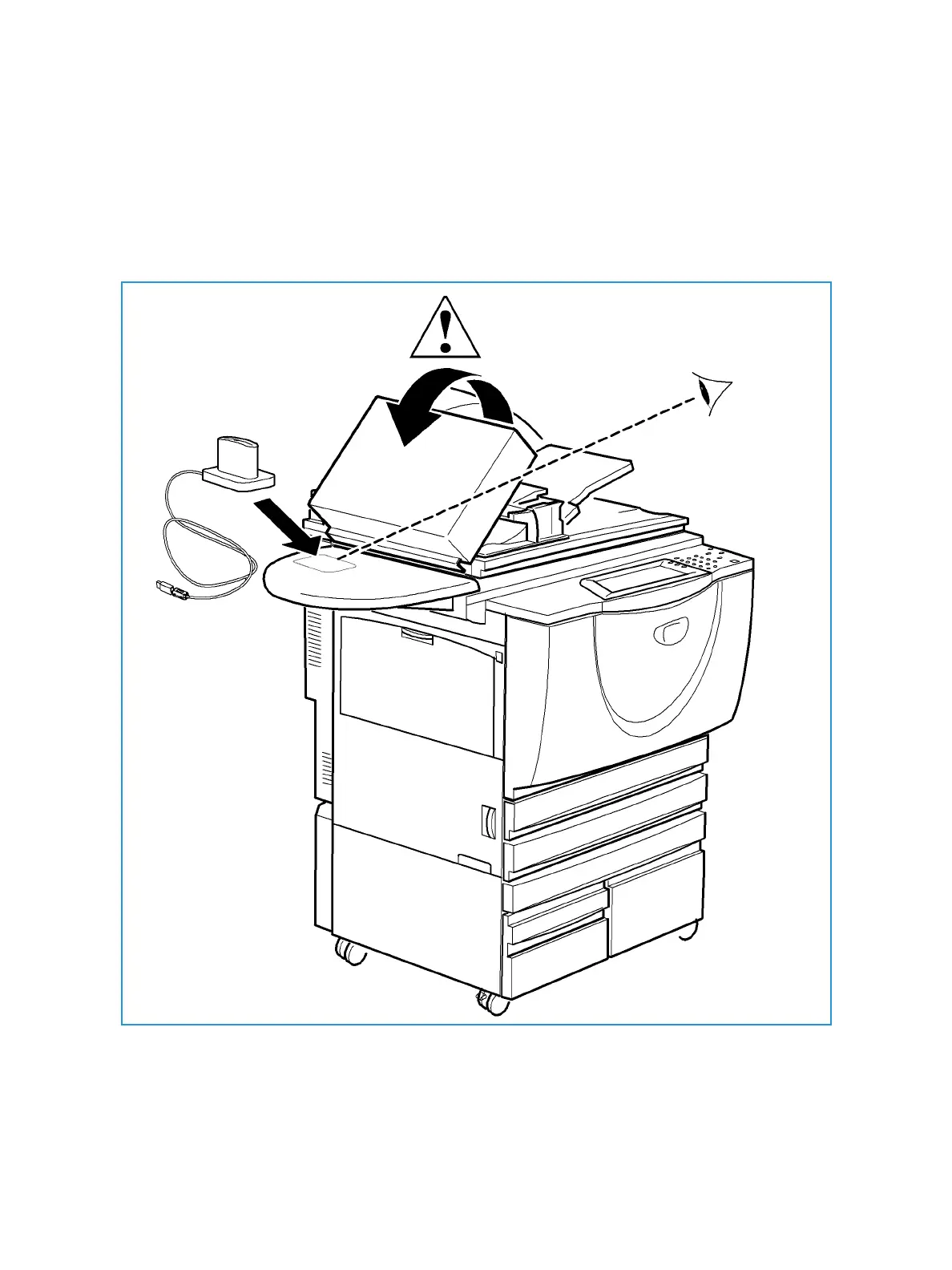

6. Place the card reader on the Xerox device
• Gently place the card reader on the device (do not fix in place at this point).
• Position the card reader in a suitable location, ensure it does not obstruct the opening of the
document handler side cover.
• Check the cable has sufficient length to connect to the rear of the network controller.
• Once it is in a suitable location, press firmly on the card reader to fix it in place.

Xerox WorkCentre 5687 Specifications

General

Brand	Xerox
Model	WorkCentre 5687
Category	All in One Printer
Language	English
