8-14
Exploded View & Parts List
Service Manual

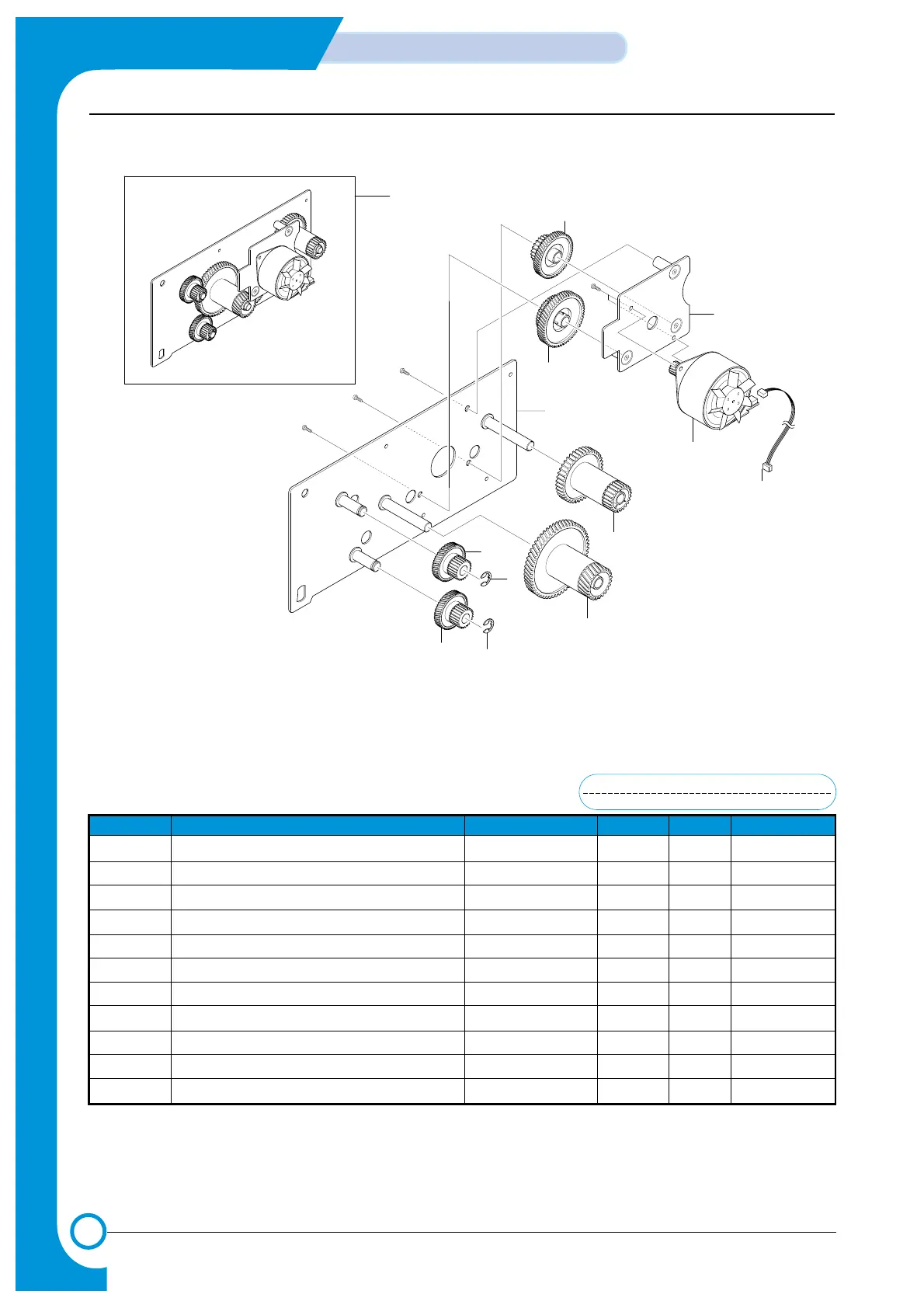

8.6 Drive Unit Assembly
0
1
2
3
4
4
5
6
7
8
9
HARNESS-MOTOR
5
No. Description SEC.Code Q’ty SA Remark
0 ELA UNIT-DRIVE JC96-03138A 1 O
1 BRACKET-P-GEAR 1400 JC61-00598A 1 X
2 GEAR-RDCN 53/26 JC66-00388A 1 X
3 GEAR-RDCN 113/33 JC66-00391A 1 X
4 GEAR-RDCN 57/18 JC66-00389A 2 X
5 WASHER-PLAIN 6031-000023 2 X
6 BRACKET-P-MOTOR 1400 JC61-00599A 1 X
7 GEAR-RDCN 103/41 JC66-00390A 1 X
8 GEAR-RDCN 90/31 JC66-00392A 1 X
9 MOTOR STEP 7.5 JC31-00020A 1 X
10 PMO-IMPELLER_DRV JC72-00825A 1 X
Drive Unit Assembly Parts List
SA : Service Available
O : Service available X : Service not available
