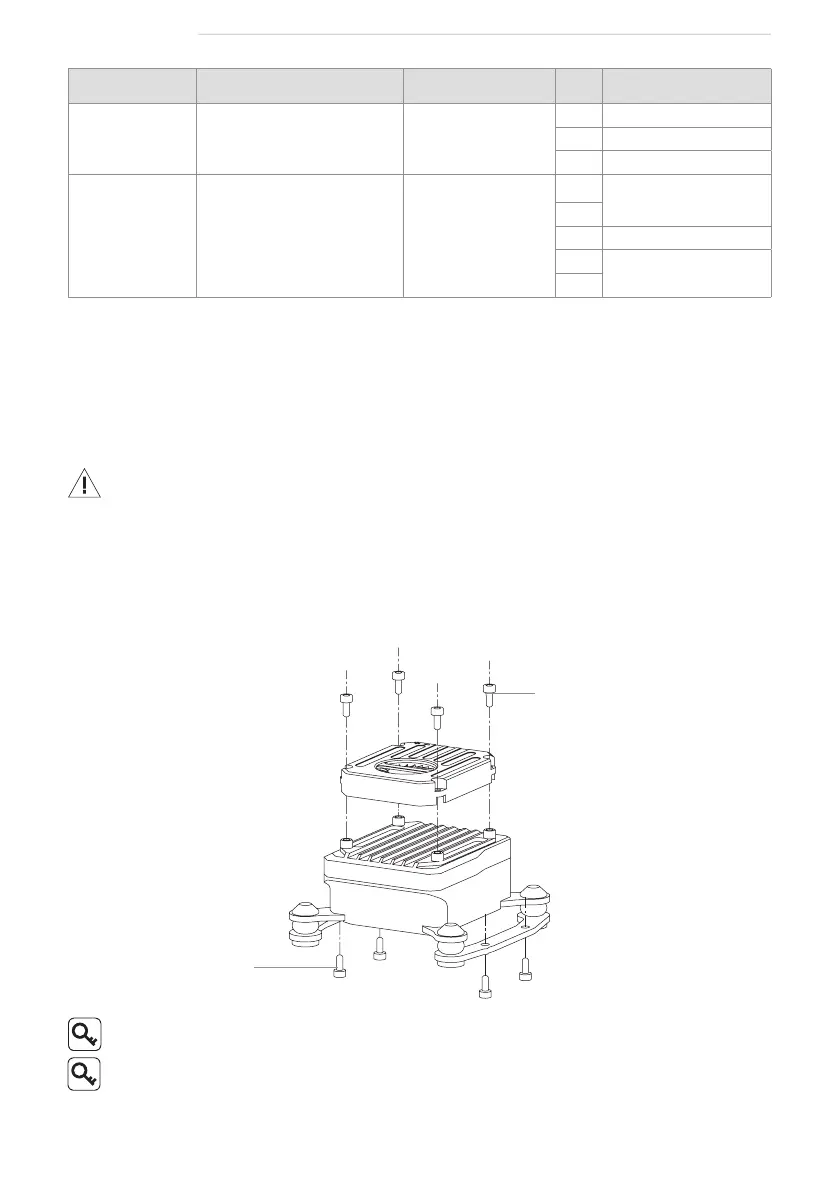

XF ROBOT Z-2Mini - Installation

4
NANJING XIANFEI ROBOT TECHNOLOGY CO., LTD.
Z-2 User Manual
Port Description Header Pin De󽗉nition
UART1 Port For gimbal upgrading SM03B-SRSS-TB
1 GND
2 UART_Rx (0~3.3V)
3 UART_Tx (0~3.3V)
Power Port
Power in.
Operating Voltage:
10~26.4VDC
SM05B-SRSS-TB
1
Power In
2
3 NC
4
GND
5
Installation
The pod heats while operating. Please ensure that the device is well cooled.
The Micro-pod Cooling Kit can be used to assist with heat dissipation.
Install the cooling kit on the top of the pod with 4 M1.6 x L4mm screws.
The Micro-pod Cooling Kit is sold separately.
The Micro-pod Cooling Kit needs to be powered separately, and the
power supply range is 10~26.4VDC @0.5W.
Use 4 x M2 screws to 󽗉x the damping platform to the carrier and reserve
enough space for damping.
Do not hard-connect the pod to the carrier , and make sure that the pod
does not come into contact with the carrier during use.
M1.6 x L4
M2
