ACCESS LEVELS MENU TREE

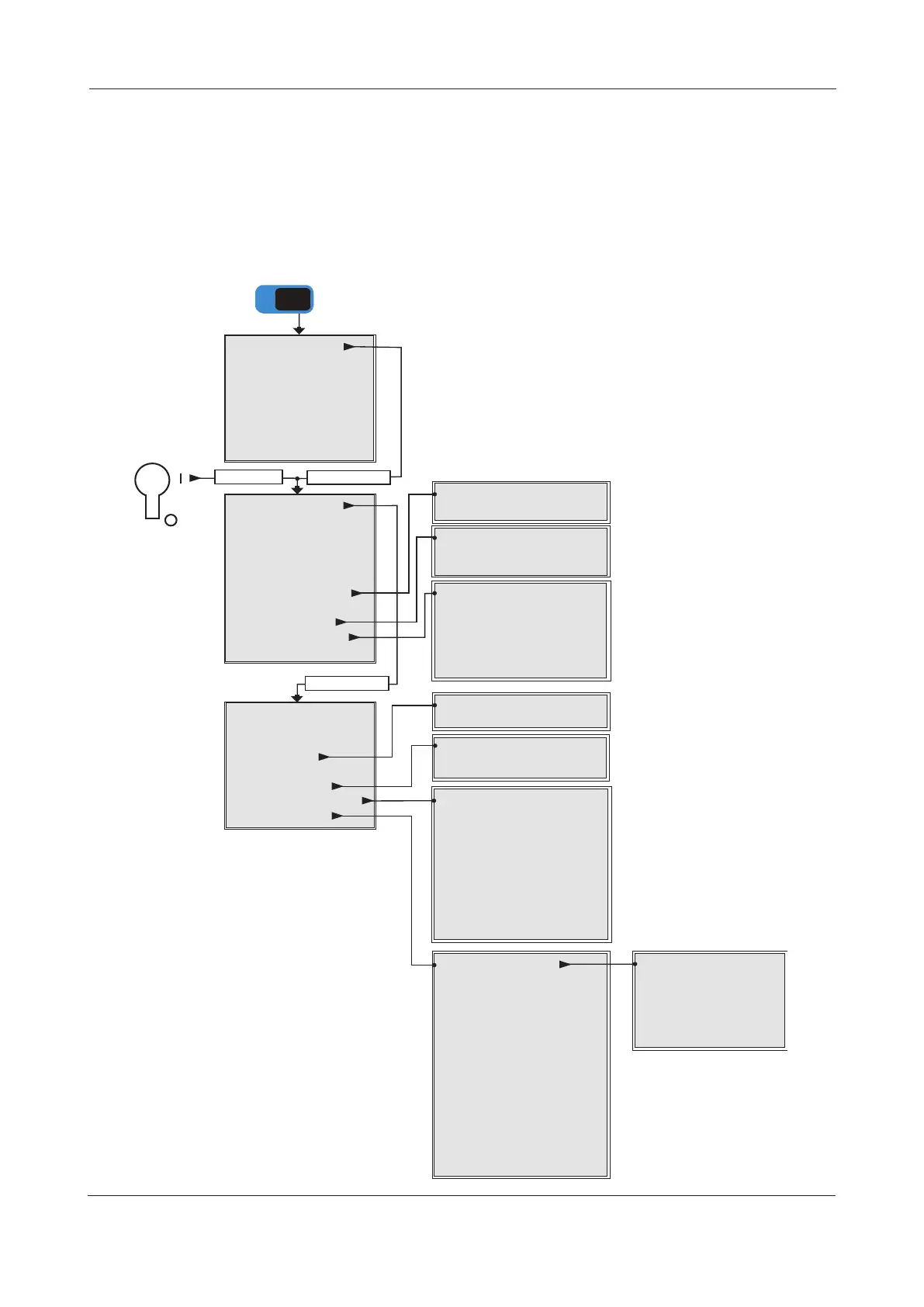

Three access levels are available at the panel - access level 1 (general user), access level 2 (authorised
user) and access level 3 (engineer). The diagram below shows the menu options available at each level,
all of which can be navigated using the panel’s scroll (56), Accept (4) and Escape (3) buttons.
Note: The menu options shown in bold will only be available if relevant to the panel’s status.
This manual focusses on the functions available at access level 3 only (access levels 1 and 2 are
covered in the panel’s separate user manual). Details of how to gain entry to access level 3 and an
explanation of the various functions available can be found on the following pages.
XFP 16 ZONE ANALOGUE ADDRESSABLE FIRE ALARM PANEL
ENTER ACCESS LEVEL 3
DISPLAY FIRE EVENTS
DISPLAY FAULT EVENTS
DISPLAY DISABLEMENTS
DISPLAY ZONES IN TEST
LAMPS TEST
DISPLAY ALARM COUNTER
SET TIME/DATE
EVENT LOG FUNCTIONS
SET/CLEAR DISABLEMENTS
CHANGE ACCESS LEVEL 2 CODE
DISPLAY ALARM COUNTER
Clear to todays date?
PRINT EVENT HISTORY?
DISPLAY EVENT HISTORY?
RESET EVENT HISTORY?
ENABLE/DISABLE ZONES
ENABLE/DISABLE SOUNDERS
ENABLE/DISABLE OUTPUTS
ENABLE/DISABLE RELAYS
ENABLE/DISABLE DEVICES
ENABLE/DISABLE FAULT RELAY
ENABLE/DISABLE OUTPUT DELAYS
ENTER ACCESS LEVEL 2
DISPLAY FIRE EVENTS
DISPLAY FAULT EVENTS
DISPLAY DISABLEMENTS
DISPLAY ZONES IN TEST
ENTER ACCESS LEVEL 3
LAMPS TEST
DISPLAY ALARM COUNTER
DISPLAY FIRE EVENTS
DISPLAY FAULT EVENTS
DISPLAY DISABLEMENTS
SETUP PASSWORDS
CONNECT TO PC
NETWORK FUNCTIONS
COMMISSIONING FUNCTIONS
ENGINEER FUNCTIONS
CHANGE ACCESS LEVEL 2 CODE
CHANGE ACCESS LEVEL 3 CODE
SET COMMS FUNCTION
SET PANEL NUMBER
SET PANEL FITTED
LOOP LEARN
FIND NEW DEVICES
SHOW FITTED DEVICES
ASSIGN ZONE/GROUP
CALIBRATE DEVICES
COMMISSION THE LOOP(S)
SHOW CALIBRATION PROBLEMS
SHOW DUPLICATE ADDRESSES
SET DAY/NIGHT TIMES
ENABLE/DISABLE DST ADJUSTMENT
CONFIGURE SOUNDER DISABLEMENTS
MAKE A CLEAN START
SET/CLEAR DISABLEMENTS
MONITOR A POINT
TEST DEVICE OUTPUTS
TEST OUTPUTS SETS
TEST SOUNDER GROUPS
TEST PANEL RELAYS
WALK TEST
BLINK DETECTORS LEDS
INTENSIVE DEVICE MONITOR
LOOP TEST
DISPLAY DATABASE
VERSION NUMBERS
SHOW PSU STATS
ENABLE/DISABLE EARTH FAULT
SHOW LOOP CURRENT
SHOW DISCOVERY EEPROM
SHOW NETWORKED EVENTS
ENABLE/DISABLE ZONES
ENABLE/DISABLE SOUNDERS
ENABLE/DISABLE OUTPUTS
ENABLE/DISABLE RELAYS
ENABLE/DISABLE DEVICES
ENABLE/DISABLE FAULT RELAY
ENABLE/DISABLE OUTPUT DELAYS
AL1
AL2AL3
Menu button
on front of panel
CODE ENTRY
CODE ENTRY
K/S ENTRY
PRINT OPTION
NOT AVAILABLE!
