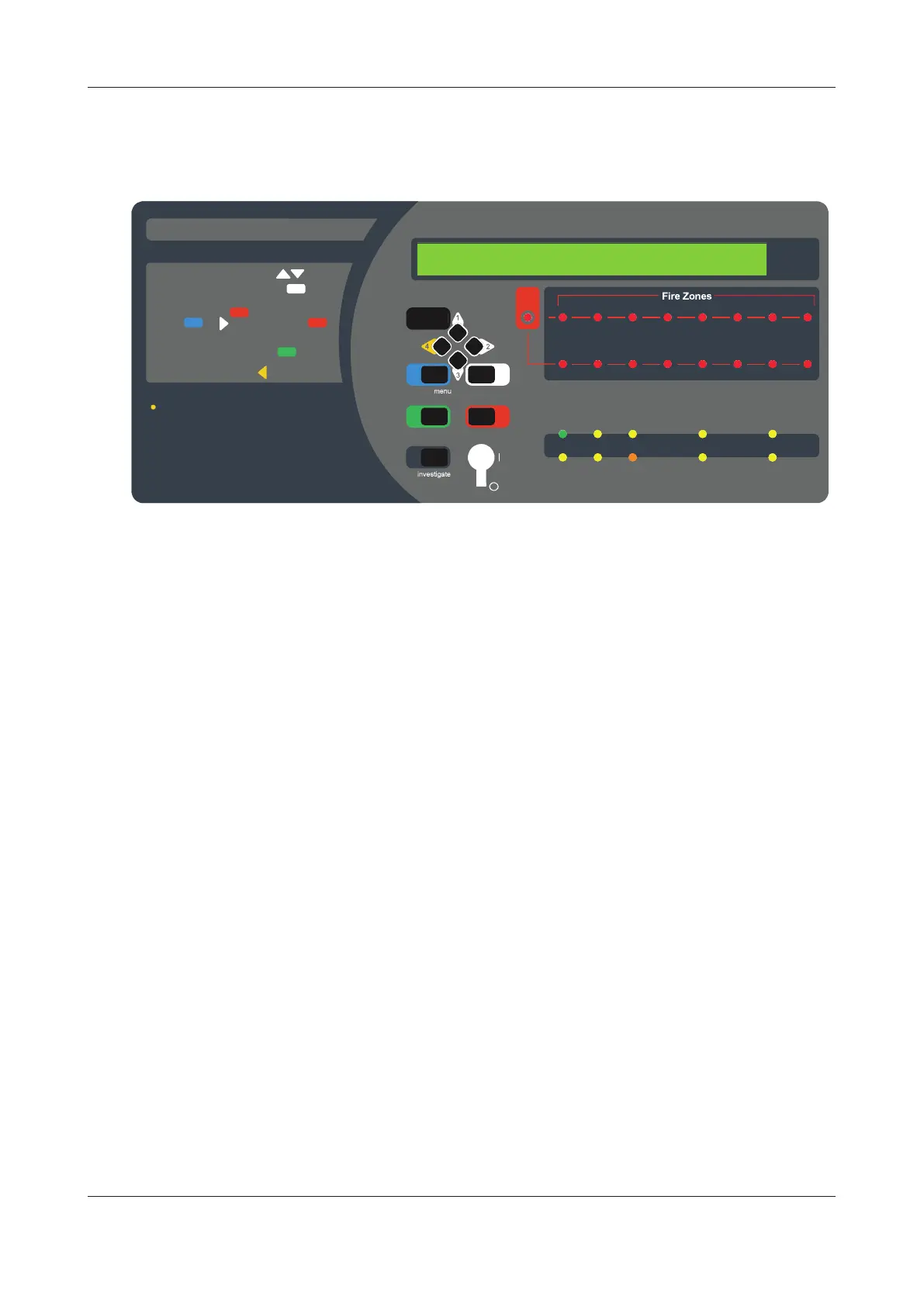

LED Indicators
Liquid Crystal Display Provides detailed information on the status of the system (the type of messages
displayed and what they mean is covered in greater detail in the panel’s
separate user manual).
(General) Fire Flashes red when there is a fire condition on any zone and goes steady red
when the alarm is silenced. Subsequent fire conditions will restart the (General)
Fire indicator flashing until it is silenced again.
Fire Zones (1-16) One or more of these indicators will flash red in an alarm condition and will go
steady when silenced.
Supply Present Normally lit green to show that all of the panel’s power supplies are
functioning correctly.
Test Lit yellow when the panel is in walk test mode. This LED does NOT illuminate
for any other test condition
Accessed Lit yellow when the panel is in access levels 2 or 3.
General Disablement Lit yellow when one or more zone, sounder, output or relay is disabled.
Phased Evacuation Flashes yellow when there is a phased evacuation in process.
General Fault Flashes yellow when there is a fault condition on the panel. Will always be lit
in conjunction with at least one other fault LED.
Power Supply Fault Lit yellow when the panel’s power supply or Mains has failed or the panel’s
standby battery is in poor condition.
System Fault Lit amber when a system error, such as a microprocessor fault, occurs. Remains
lit even if the panel automatically clears the fault.
Sounder Status Flashes yellow when a fault is detected on either of the panel’s two
conventional sounder circuits or if there is a sounder disablement anywhere on
the system.
Delays Running Lit yellow when one or more output delay has been programmed into the
panel. Flashes yellow when one or more output delay is running.
