Replacing the Bracket
The Alveo U50 card can be used with either a full-height or half-height bracket. Depending on
your system, it may be necessary to switch between the full and half-height bracket on the card.
The bracket is secured to the card with four screws, as shown in the gure below. To replace the
bracket, follow the instrucons below.
1. Remove screws 1 and 2 from the card.
2. Remove screws 3 and 4 from the card.
3. Remove the bracket from the card.
4. Place the new bracket on the card and align it with the card's connectors and screw locaons.
5. Replace screws 1 and 2 on the new bracket.
6. Replace screws 3 and 4 on the new bracket.

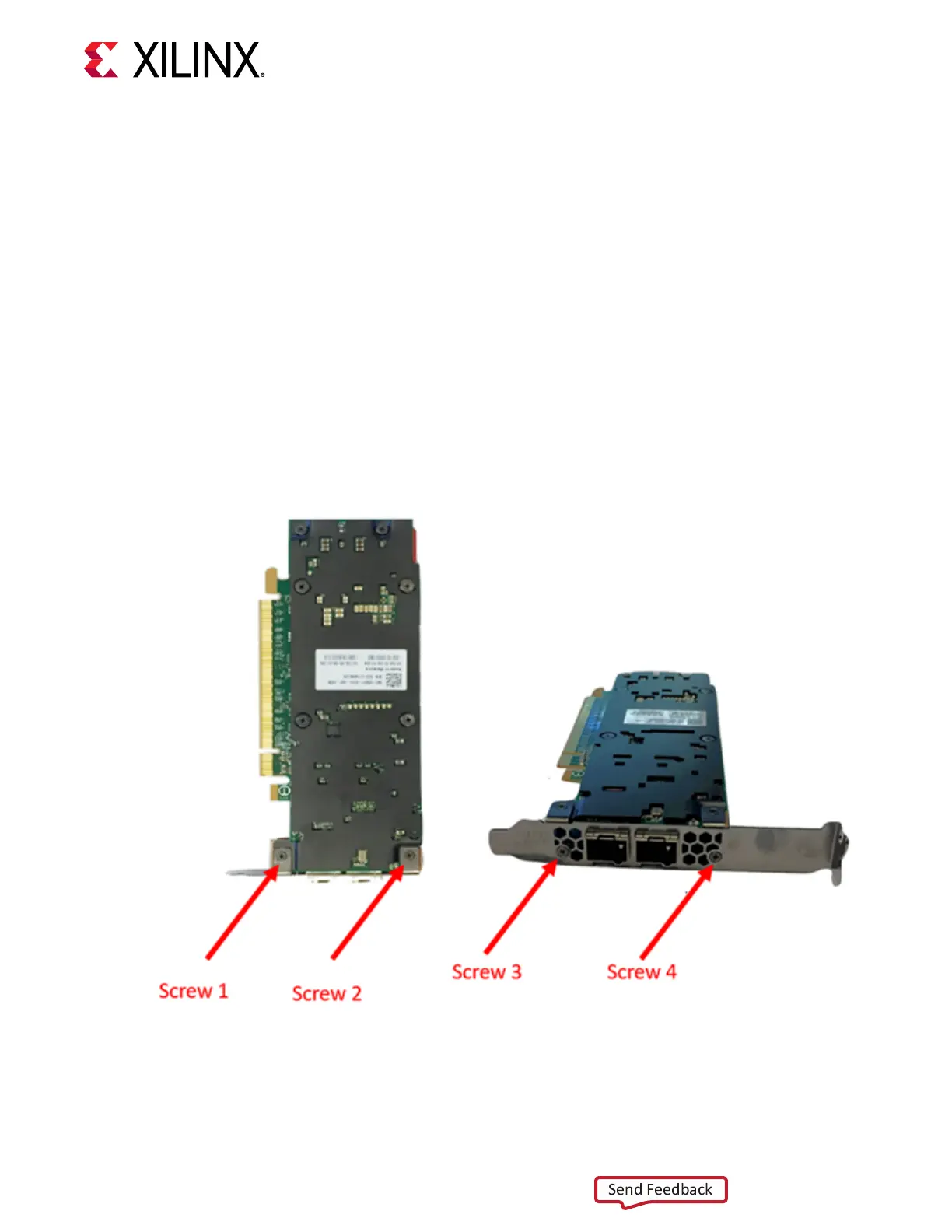

Figure 3: Screw Locations on Bracket
