GTP Transceiver Model Correlation
Note: The blue waveforms cannot be seen because the red waveforms are covering them.
X-Ref Target - Figure B-8

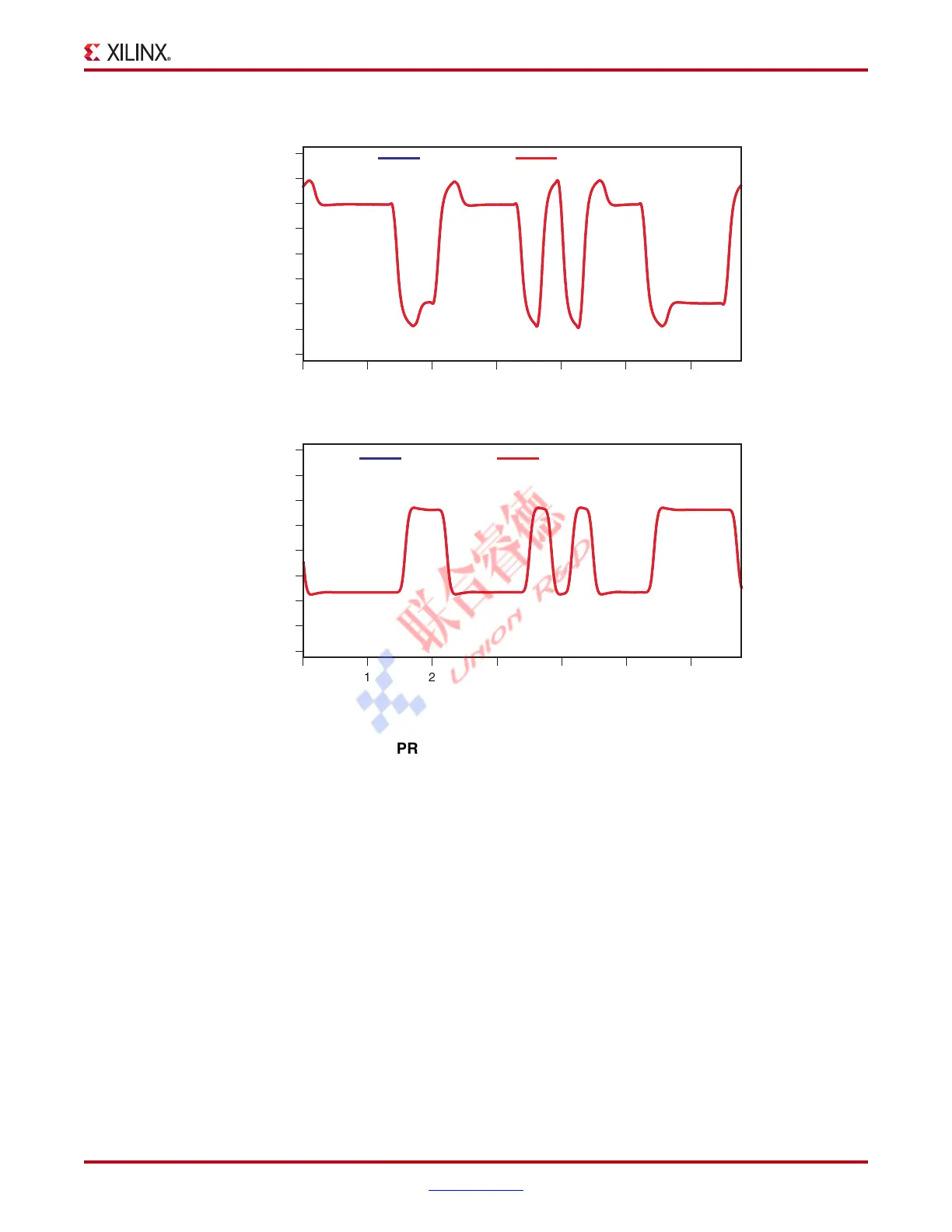

Figure B-8: TXDIFFCTRL = 1010, TXPREEMP = 100, RXEQMIX = 00 (Typical - GTP Transceiver)
UG396_aB_08_051410
02
Eldo
FOM=99.7779%
HSPICE
145
Time (ns)
Volts
(Vppd)
63
-0.8
-0.6
-0.4
-0.2
0
0.2
0.4
0.6
0.8
02
Eldo
FOM=99.7269%
HSPICE
145
Time (ns)
Volts
(Vppd)
63
-0.8
-0.6
-0.4
-0.2
0.2
0
0.4
0.8
0.6
Typical, TXDIFFCTRL=1010, TXPREEMPHASIS=100, RXEQMIX=00 − MGTTX
Typical, TXDIFFCTRL=1010, TXPREEMPHASIS=100, RXEQMIX=00 − MGTRXOUT

Xilinx Spartan-6 Specifications

General

Maximum Transceiver Data Rate	3.2 Gbps
Number of Transceivers	Up to 8
Supported Protocols	Ethernet
Power Supply	1.0V, 2.5V, 3.3V
Operating Temperature	0°C to +85°C (Commercial), -40°C to +100°C (Industrial)
Transceiver Type	Multi-Gigabit Transceivers (MGTs)
