8
The recommended cable size is 1.5mm
2
(16AWG). The cable has to be
connected to building wires and a disconnection means must be provided in
accordance with the wiring rules.
5. Installation of Projector:
1) Prior to the installation of projector, the lift should be checked for proper
operation.
2) Check the dimensions of the projector for properly operated within the available
space.
3) The projector should be suspended on projector mounting bracket. Please
follow the projector manufacturer’s instructions.

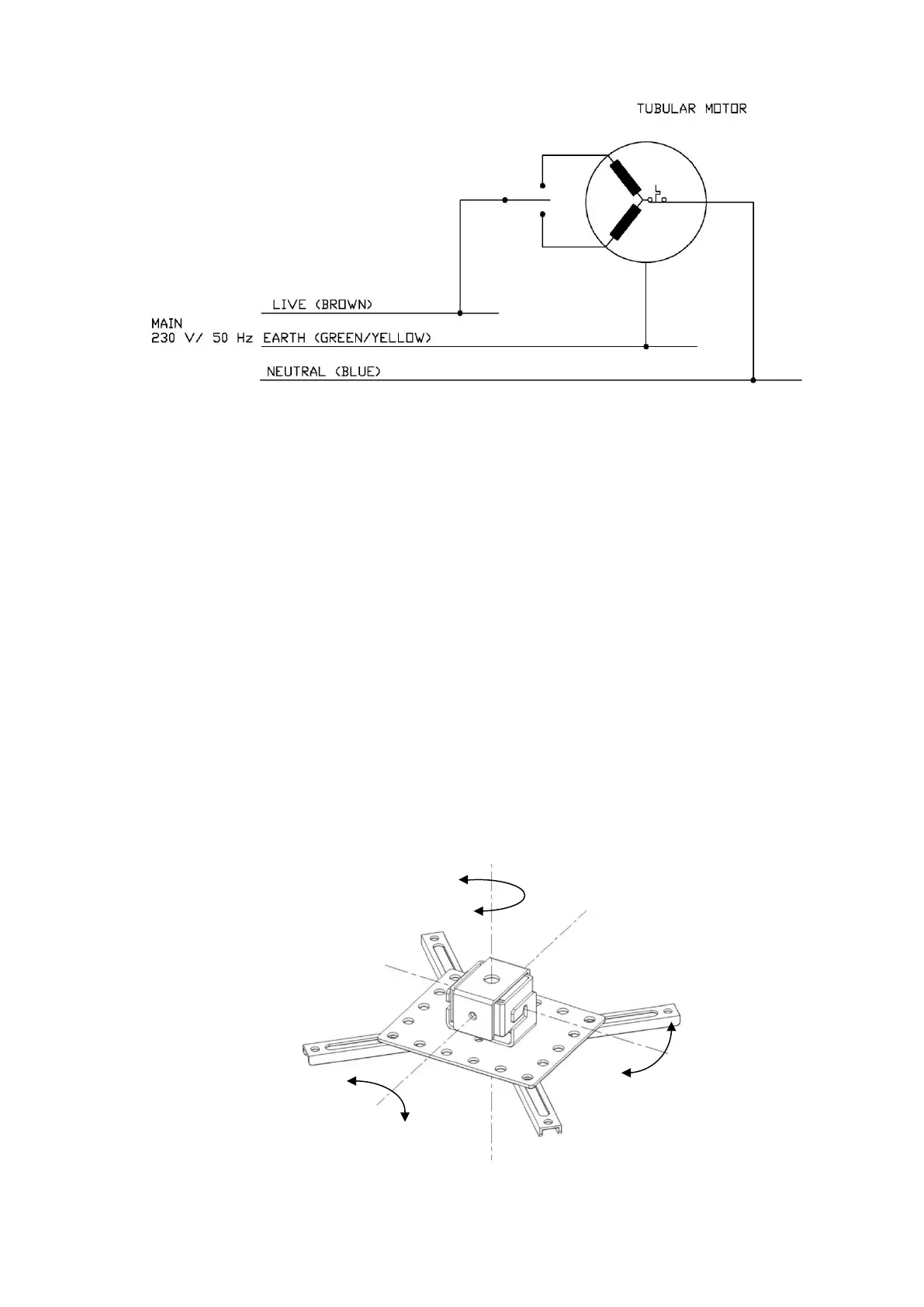

4) The projector should be adjusted at the screen level as necessary. Please refer
the drawing below for adjustment of Yaw, Pitch and Roll.
To Next Page
