d) Press and hold the STOP button, until the lift begins to move briefly (up and
down), the intermittent position is deleted.
e) Repeat step (a) and (b) to record the new position.
The Upper position (Store Level), intermediate position (Projection Level) and Lower
position (Service Level) are recorded. Press Up and Down button and operate the lift
to countercheck the recorded positions.
9. Optional Accessories
NOTE: The device must be installed by qualified electrician for whom this
instruction is intended. Please read the instructions carefully before
installation. Please follow the local electrical codes.
1) Dry Contact Transmitter
If you are interfacing the lift with AMX or Crestron, the Inteo Dry Contact
Transmitter will be needed.
a) Please refer the wiring diagram shown below to connect the dry contact
transmitter.
(Note: The dry contact transmitter doesn’t need to connect to motor. They will
interact each other by means of radio frequency.)

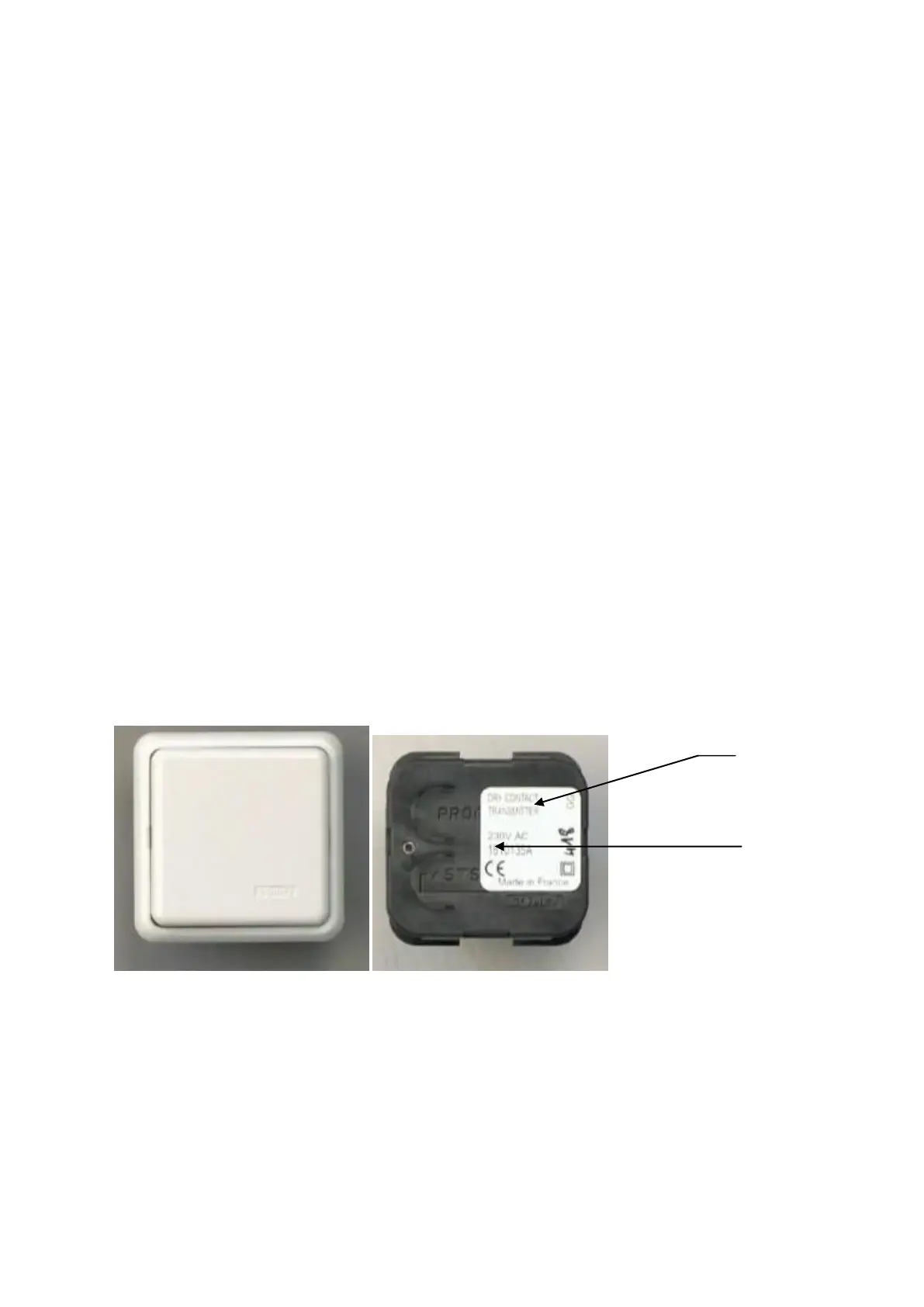

Transmitter without front cover
Inteo Dry Contact transmitter
To Next Page
