6.3.1 Main switches of the engine compartment

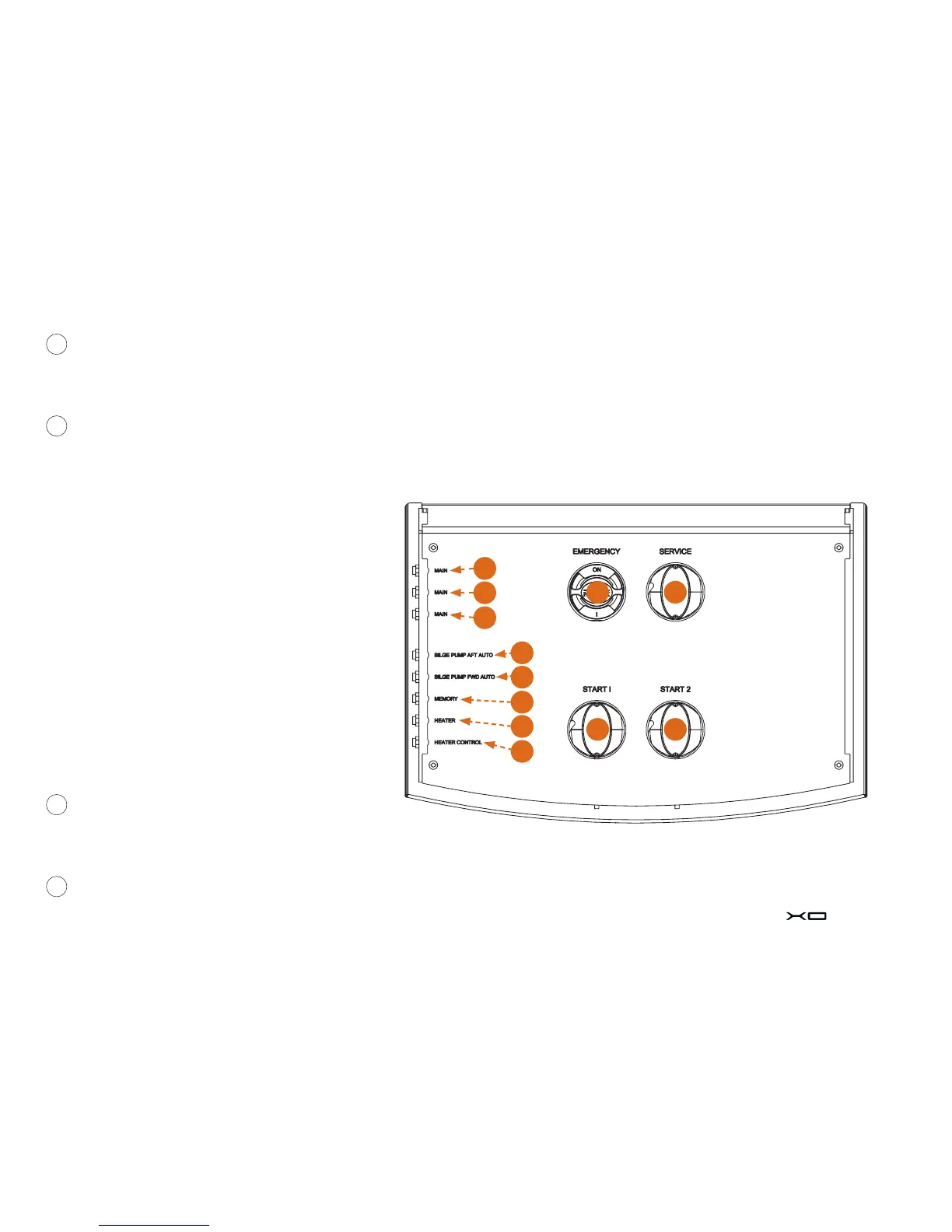

The main switch panel of the engine compartment has
switches for dierent electronic circuits and a dead
man’s switch, which can be used to switch o all the
electricity on the boat, The panel also has direct supply
switches for critical electronic circuits.
A Dead man’s switch
B Service battery main switch
C Start 1 battery main switch
D Start 2 battery main switch
1. Main fuse
2. Main fuse
3. Main fuse
4. Aft bilge pump fuse
5. Fore bilge pump fuse
6. The fuse of the radio memory
7. Heater fuse
8. The fuse of the heater panel
A
1
4
2
5
7
3
6
8
C
B
D
