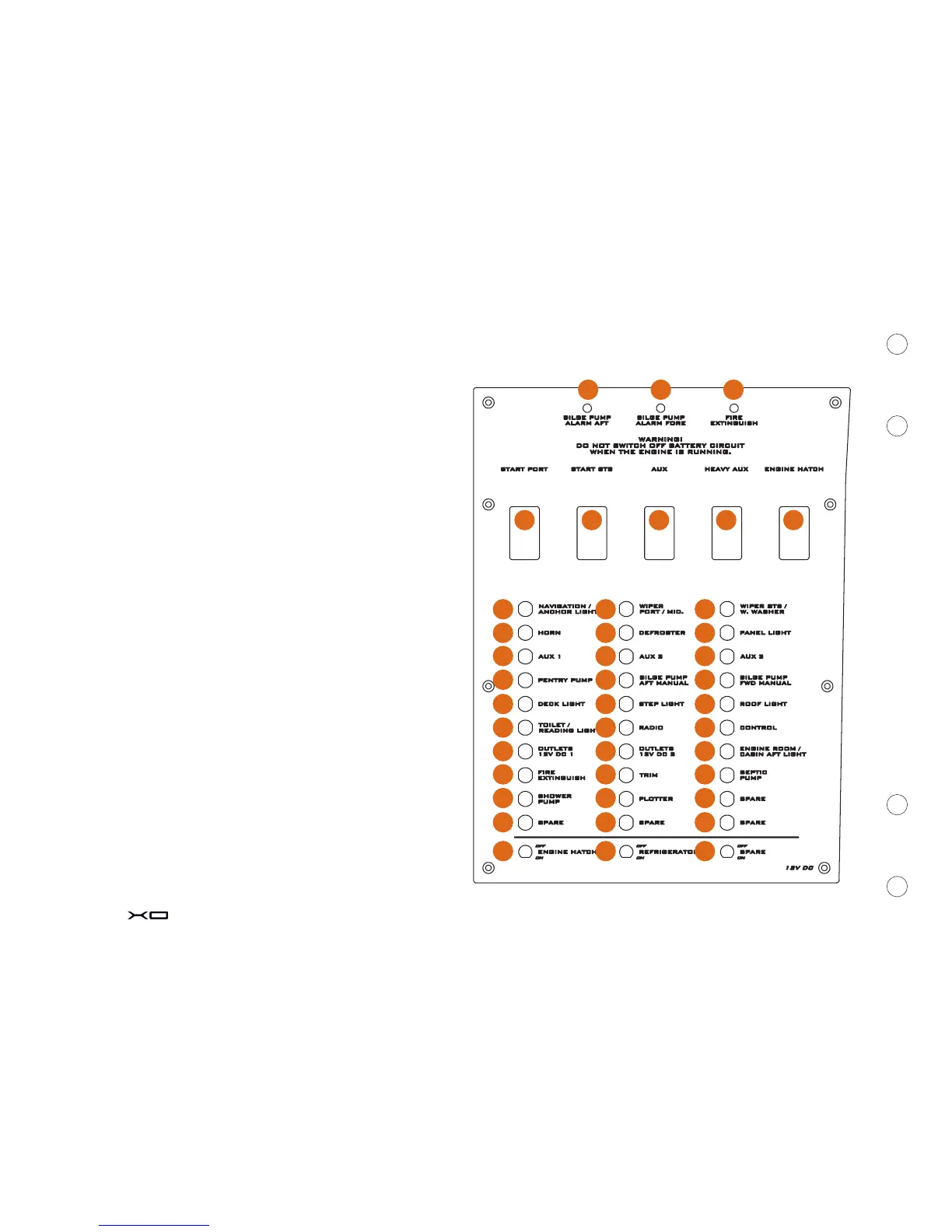

6.5.1 Steering console switch and fuse panel
A switch and fuse panel are positioned in the lower
part of the steering console in the helmsman’s footwell.
The panel has remote control switches for the main
switches. The panel contains indicator lights for the
bilge pumps and the engine compartment extinguisher.
The panel also contains the majority of the boat’s fuses
and some of its direct supply switches.
The panel includes the following switches and
indicator lights:
B. Switch for service battery
C. Switch for Start 1 battery
D. Switch for Start 2 battery
E. Switch for bow thruster and anchor windlasses
F. Opening switch for engine hatch
G. Indicator light for aft bilge pump
H. Indicator light for fore bilge pump
I. Indicator light for engine compartment
extinguisher
1
C D B E F
IHG
11 21
6 16 26
2 12 22
7 17 27
4 14 24
9 19 29
3 13 23
8 18 28
5 15 25
10
31
20
32
30
33
