8.1 FUEL SYSTEM
The boat is equipped with a fixed fuel system which
includes fuel inlet pipes, fuel tank, fuel filters and fuel
cocks.The inlet pipes are positioned on both sides of the
cockpit door. When refuelling, keep an eye on the fuel
level in the fuel gauge toprevent it from overflowing.After
refuelling, always check that no fuel has flowed into the
bilge.
The fuel tank is located under the aft cabin.The tank’s
service hatch and hose outlets are positioned in the rear
bulkhead of the aft cabin by the steps.

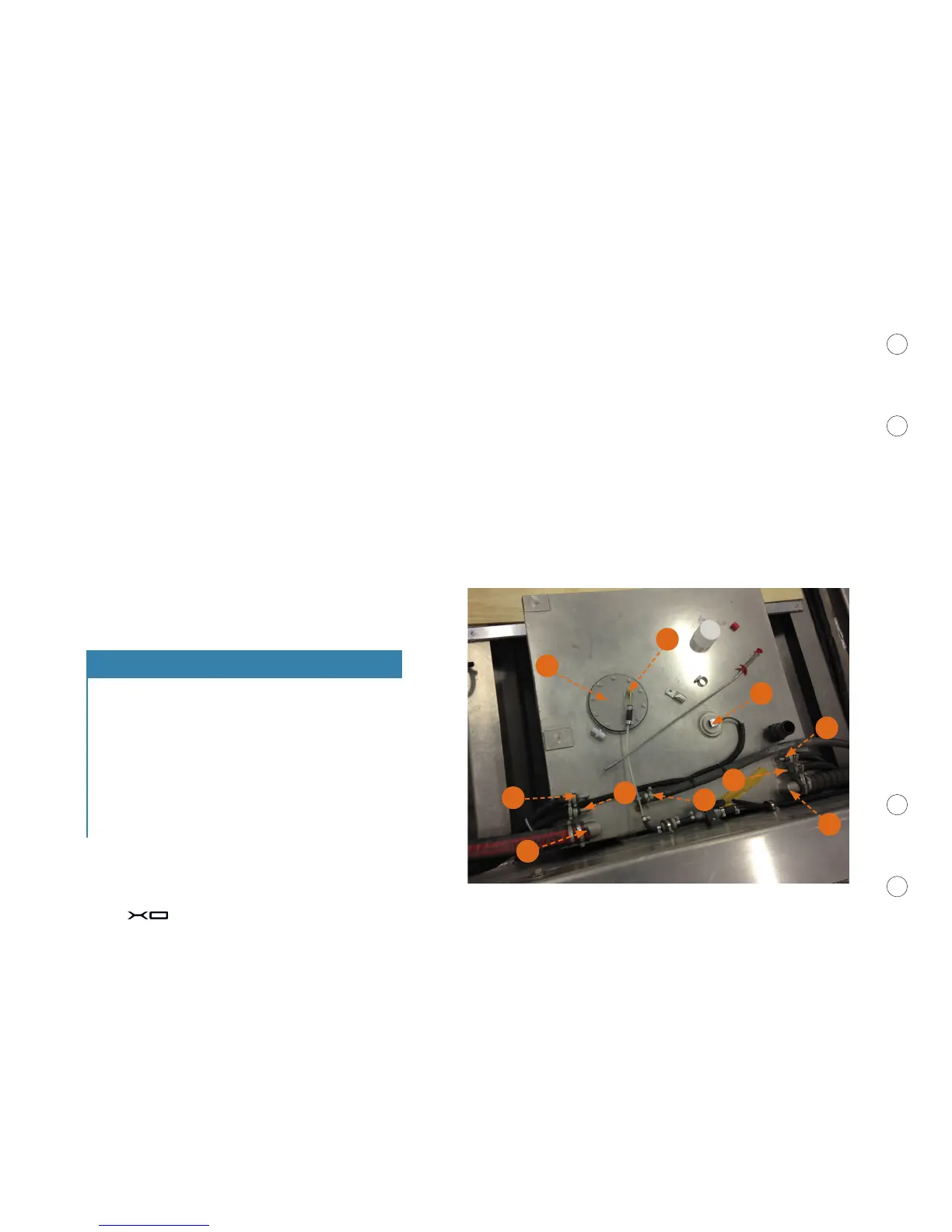

The fuel tank’s hoses:
1. Portside filler hose
2. Port-engine inlet hose
3. Port-engine return hose
4. Ventilation hose
5. Tank’s service hatch
6. Heater inlet hose
7. Fuel sensor
8. STB-engine inlet hose
9. STB-engine return hose
10. STB-side filler hose
1
2
3
4
9
8
10
7
6
5
NOTE !
Never
• block access to safety devices, extin-
guishers, fuel valves or the main current
switch of the electrical system.
• block any ventilation holes in the boat
because these are intended for airing
out any fuel vapour.
