XO 4 & XO FLEX TROUBLE SHOOTING GUIDE
Version 3.30 32
INSTRUMENTS:
SYRINGE:

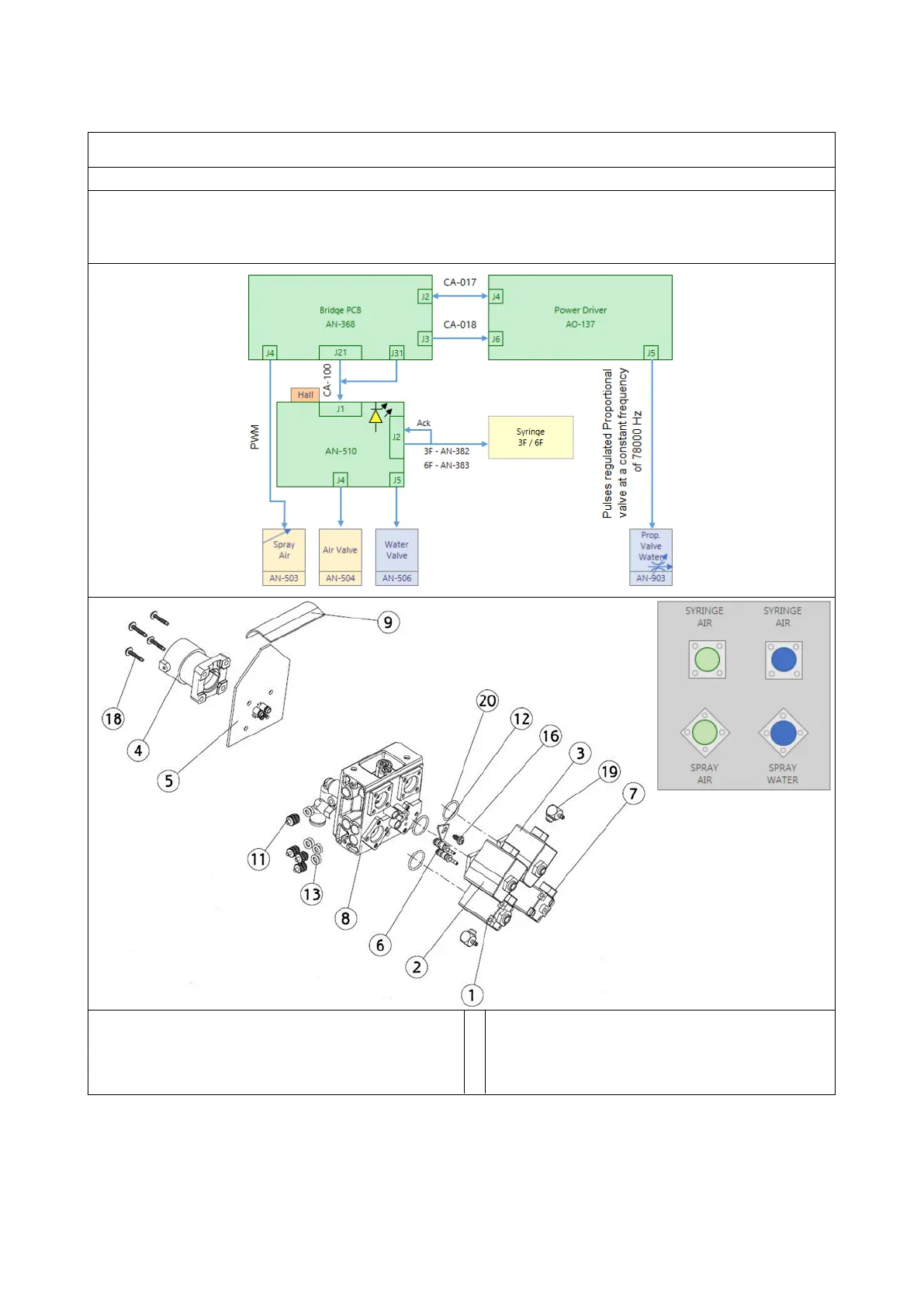

The syringe block is the main water and air inlet block on the instrument holder.
The function of the syringe plate provides the voltages required for the operation of the 3F / 6F syringe,
controls the lighting of the optical fiber.
The Hall effect sensor detects if the instrument is activated.
1
Prop. Spray air valve
AN-503
7
proportional valve
AN-903
2 Air valve 2/2 AN-504 8 Main block AP-040
3
Spray air valve 3/2
AN-507
9
Connection cable
CA-100
5 Suspension PCB AN-510 10 Green tubes Prop. Valve FS-078
