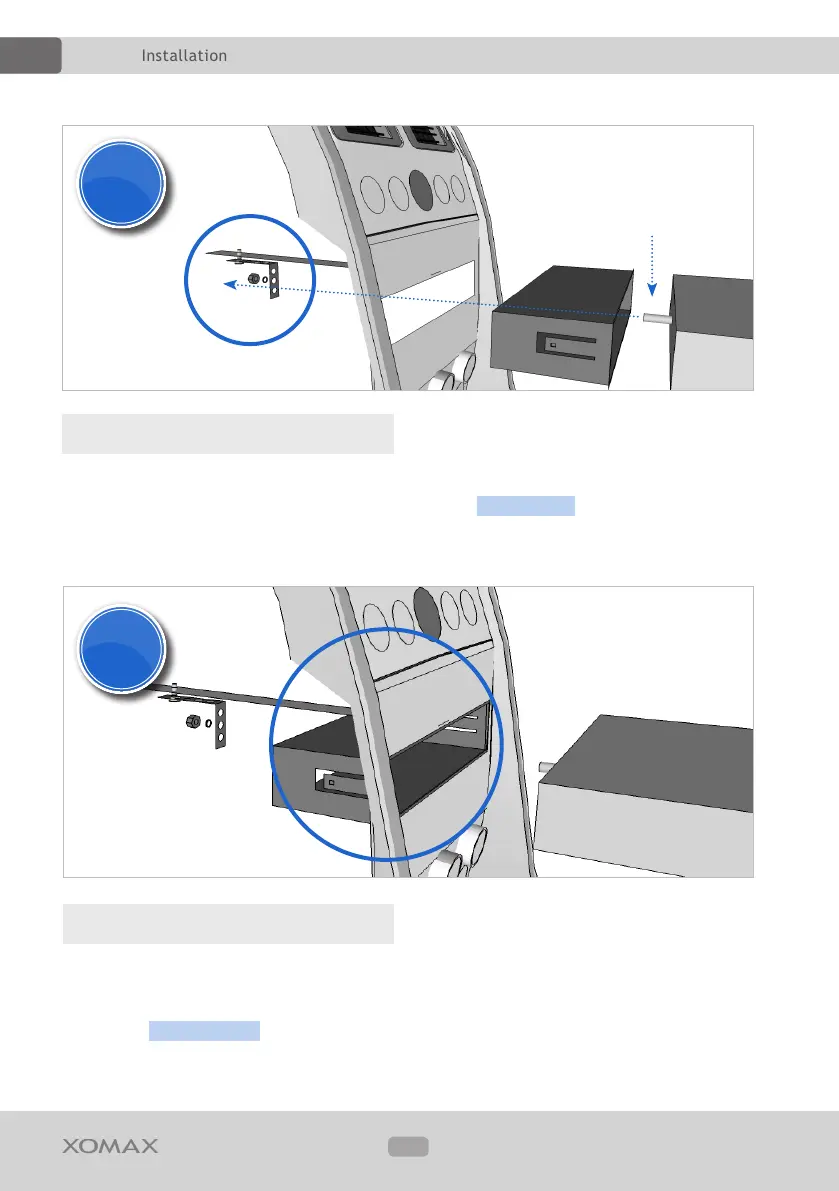

3) Fixture of the installation frame
Please remove rst the installation
frame (if it's included in delivery) from
the unit. Please use for that the extrac-
tion keys ( see page 30 ). Possibly the
faceplate should be removed as well.
Please insert the installation frame in
the installation cell (car radio slot). Then
bend all the cogs outwards to xate the
frame inside the cell (slot).
2) Fixture of the fixation sheet
This step can not be accomplished in
every vehicle, thus it may be possibly
skipped. The xation metal sheet
should be xated in the vehicle rst,
then the dual-ended bolt of the unit
should be pulled through one of the
holes in the xation metal sheet.
Later ( see page 9 ) the unit will be xed
to the metal sheet with the washer and
the nut.
