9
Cascading the DT4000 Cradles
DT4000 cradles can be cascaded in series to charge devices and
batteries simultaneously with one AC/DC adaptor. Each adaptor supports
maximum 3 cascaded cradles.
Important: Do not cascade over 3 cradles in series.
1. Disconnect AC/DC adaptor, and turn over 2 cradles.
2. Connect the DC Power Cable of one cradle to the DC power
connector of the other cradle.

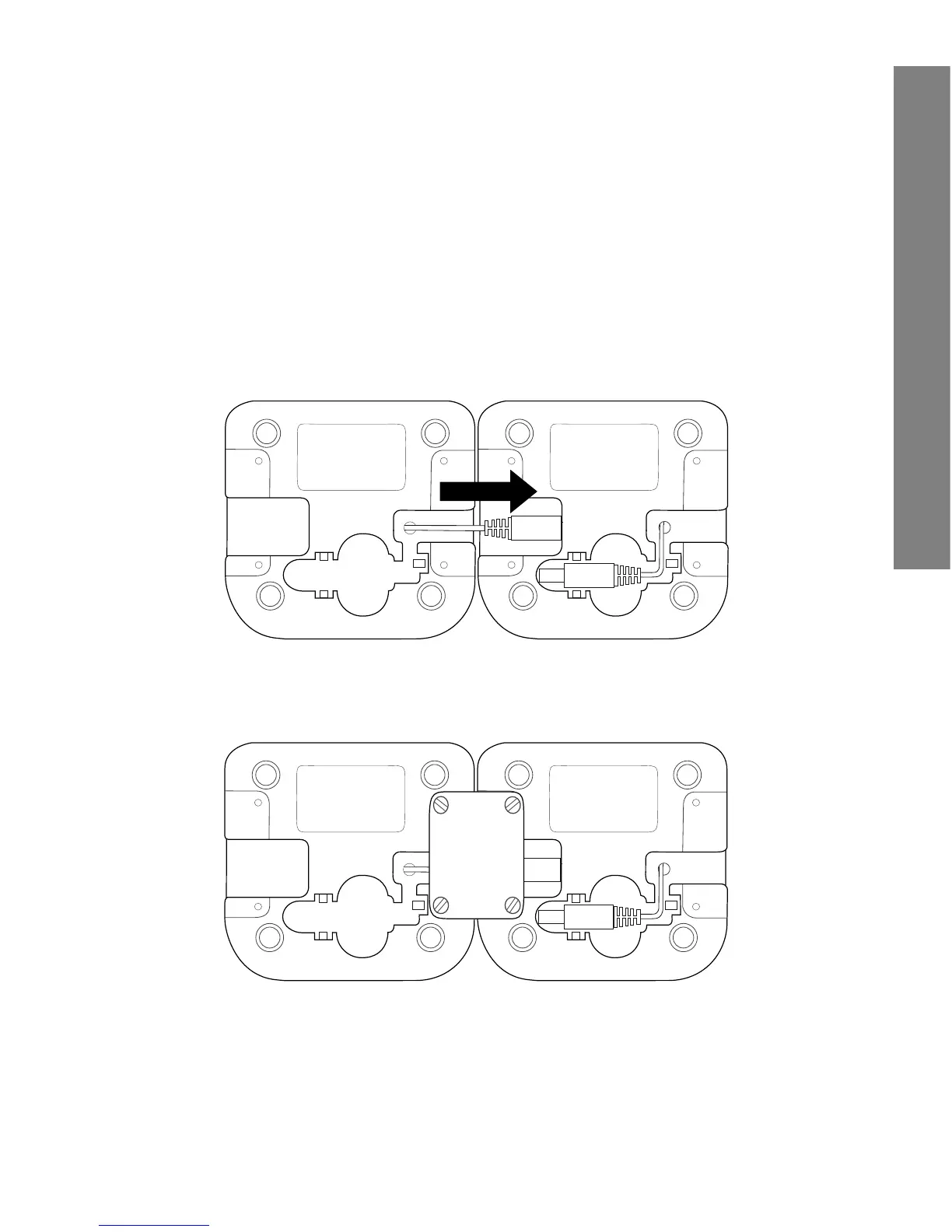

3. Apply the metal plate accessory to the recess area as illustrated,
and fasten the metal plate screws with a coin or screwdriver.
4. Re-connect the AC/DC Adaptor to the cradle.
Getting Started
