ROLL CENTER

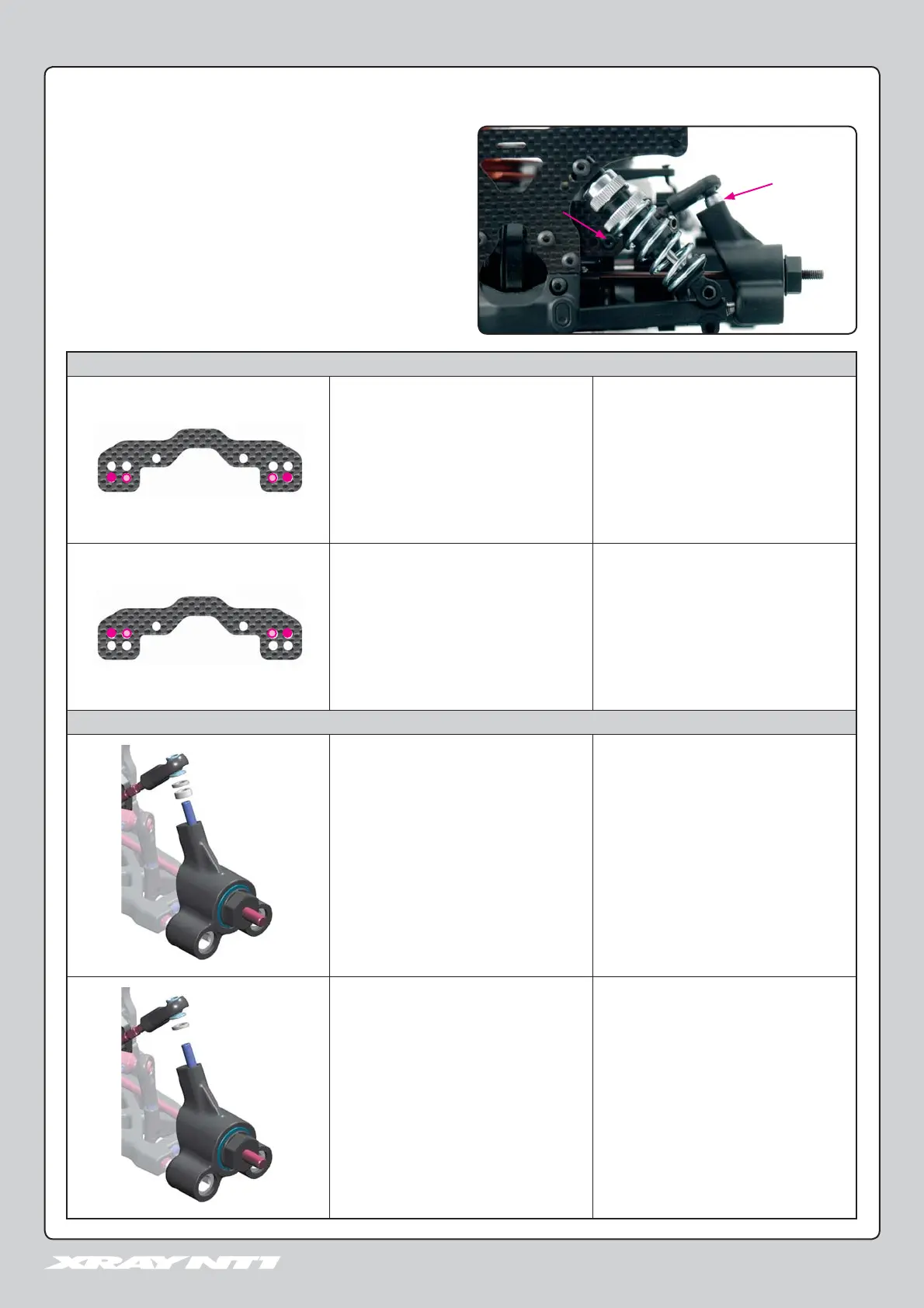

FINE REAR ROLL CENTER ADJUSTMENTS
Make fi ner adjustment to rear roll center by changing the rear upper
camber link mounting positions.
REAR ROLL CENTER TOWER (camber link inner mounting positions)
Lower holes
(inner or outer) Higher rear roll center
Upper holes
(inner or outer) Lower rear roll center
REAR UPRIGHT (camber link outer mounting positions)
MORE (or thicker)
shims below linkage
Higher rear roll center
FEWER (or thinner)
shims below linkage
Lower rear roll center
