FUEL TANK & ELECTRONICS
E E
D D C C
901312
SB M3x12
902308
SH M3x8
902316
SH M3x16
Servo
grommet
Servo
screw
Servo grommet
902306
SH M3x6
902312
SH M3x12
36mm
Follow the TECH TIP on page
13 to install the pivot balls
➊
➊
➋
➋
➌
➌
➍
➍
➎
➏

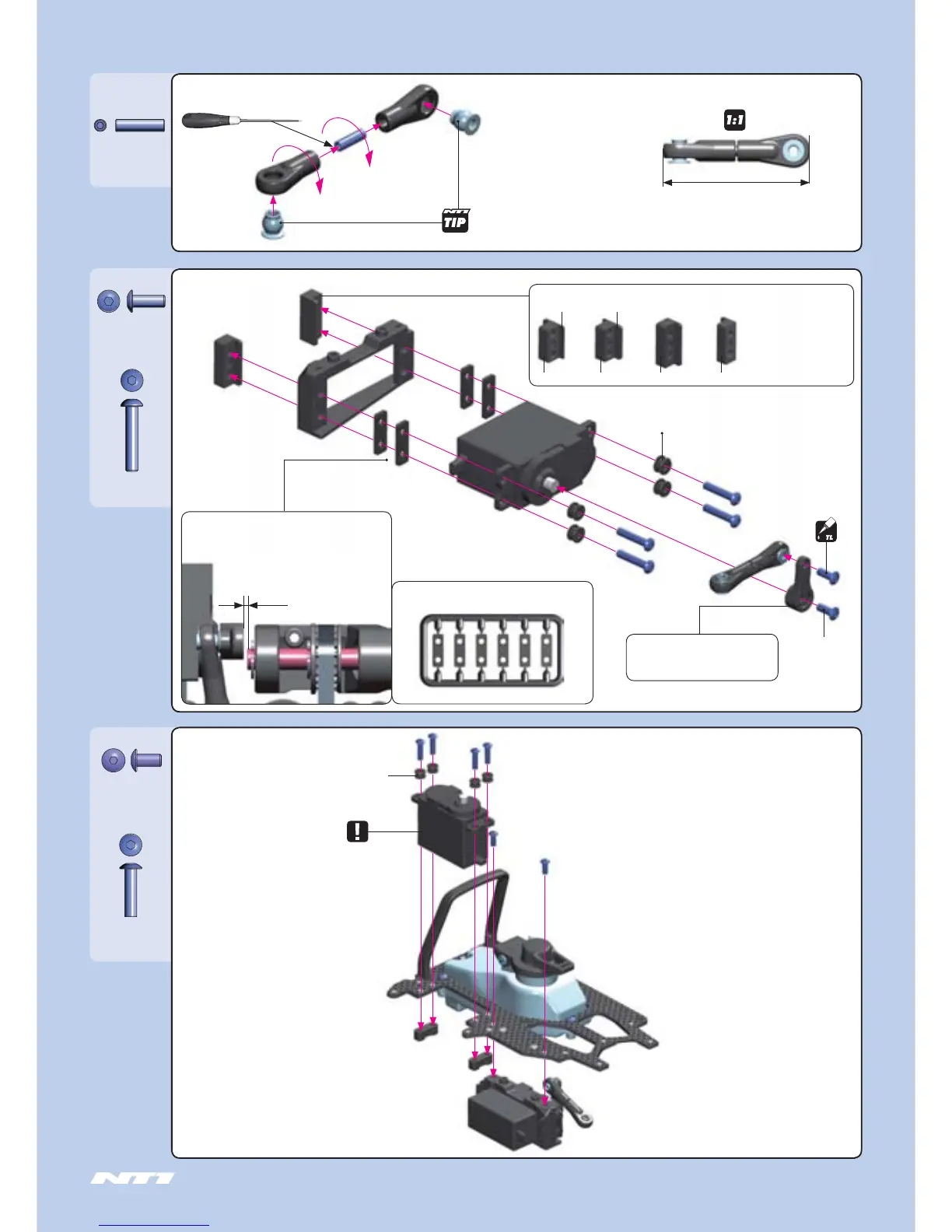

SERVO HORN CLEARANCE
B
➊
➊
➋
➌
➌
➍
➍
Use appropriate shims to ensure
there is at least 1mm clearance
between the servo horn and the
front middle shaft
1.5mm
➊
➋
1mm
NOTE
ORIENTATION
➌
➌
B
A
A
thin
thick
Use different servo shims depending on
your steering servo.
E=2.5mm D=1.5mm C=1mm
K = KO, JR, Airtronics, Sanwa
F = Futaba, Robe
H = Hitec
Use appropriate inserts
for your servo, to ensure
the servo has minimal
play (movement) in the
servo holder
Note the 90° angle difference
between the ball joints
