26

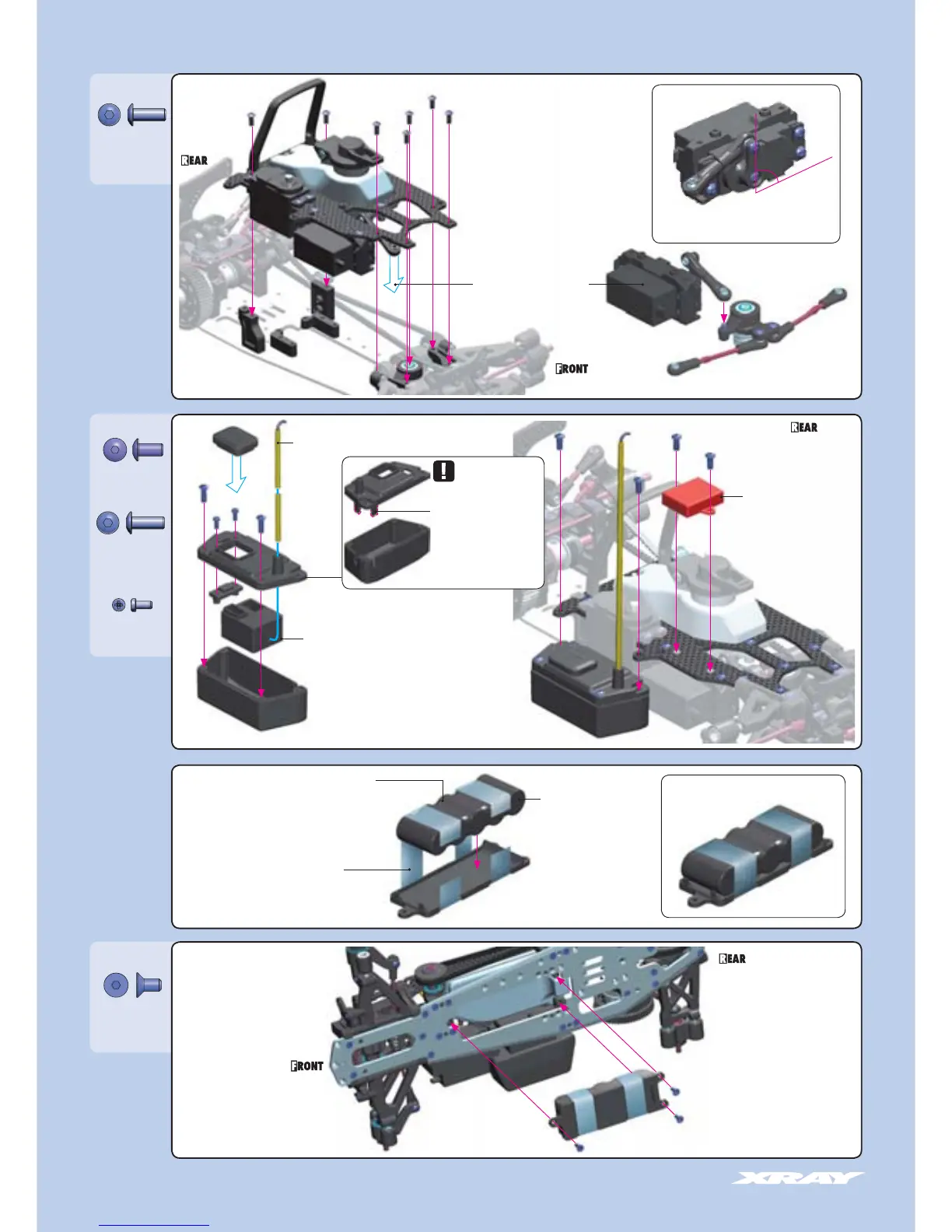

FUEL TANK & ELECTRONICS
902308
SH M3x8
902306
SH M3x6
902308
SH M3x8
907206
2x6
903306
SFH M3x6
3x6
➊
➋
➌
➌
➍
Use an appropriate receiver battery pack.
The NT1 accommodates standard 5-cell
receiver packs or optional micro-size packs.
Attach steering linkage to
servo saver
ASSEMBLED VIEW
Use tape to mount the receiver
battery pack to the lower holder.
Antenna
3x8
3x8
2x6
DETAIL
Servo arm must be perpendicular to
linkage when servo is in neutral
90°~95°
Personal Transponder
(not included)
Receiver (not included)
Battery (not included)
Route servo and transponder leads into
box and seal with silicone sealant
If the receiver box has 2
different-size openings
for cable entry (narrow
and wider), cut away the
tab for the appropriate
opening to allow the
cables to fi t properly.
To Next Page
