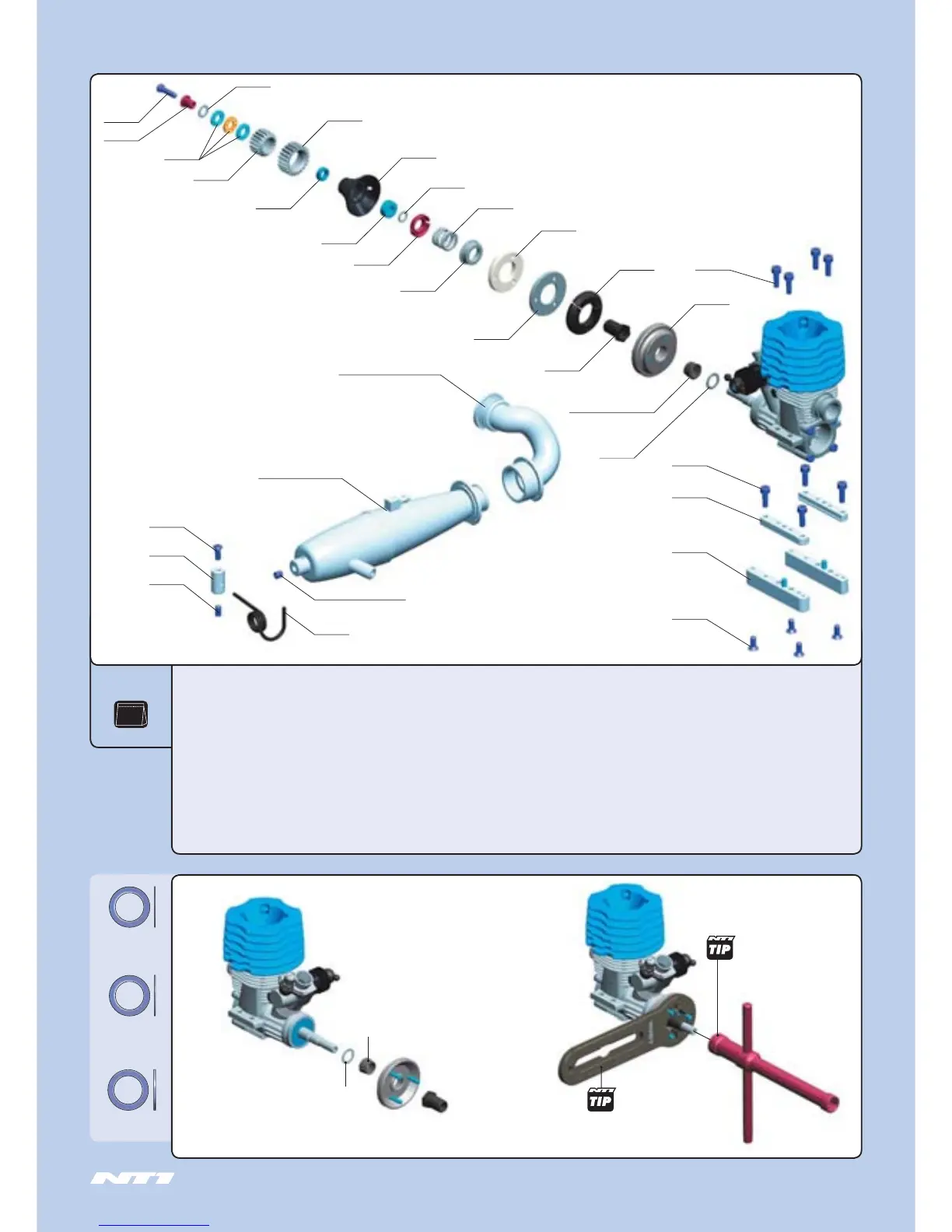

8. ENGINE & CLUTCH
BAG
08
33 8510 CLUTCH BELL - HUDY STEEL
33 8516 XCA ALU 7075 T6 HARD COATED PINION GEAR - 16T (1ST)
33 8521 XCA ALU 7075 T6 HARD COATED PINION GEAR - 21T (2ND)
33 8530 FLYWHEEL - ALU 7075 T6 - HARD COATED
33 8540 FLYWHEEL COLLAR 7MM - NOVAROSSI (OPTION)
33 8541 FLYWHEEL COLLAR 6MM - PICCO (OPTION)
33 8550 FLYWHEEL NUT - HUDY SPRING STEEL™
33 8556 CLUTCH BELL BUSHING - HUDY SPRING STEEL™
33 8560 CLUTCH FLYWEIGHT - BLACK (3)
33 8570 CLUTCH DISK - ALU 7075 T6
33 8574 CLUTCH SHOE - WHITE
33 8580 CLUTCH SPRING
33 8584 SHIM 5x7x0.2 (10)
33 8585 SHIM 5x7x0.3 (10)
33 8586 SHIM 5x7x0.5 (10)
33 8590 CLUTCH SPRING CUP - ALU 7075 T6
33 8594 CLUTCH PRELOAD ADJ. NUT - HUDY SPRING STEEL™
33 8710 ALU ENGINE MOUNT (2)
33 8720 ALU STAND FOR ENGINE MOUNT (2)
33 8730 EXHAUST MOUNTING WIRE
33 8740 EXHAUST WIRE MOUNT
35 9050 CLUTCH BELL BALL-BEARING MR105ZZ 5x10x4 (2)
90 1406 HEX SCREW SB M4x6 (10)
90 2408 HEX SCREW SH M4x8 (10)
90 3310 HEX SCREW SFH M3x10 (10)
90 8310 HEX SCREW SOCKET HEAD CAP M3x10 (10)
90 8316 HEX SCREW SOCKET HEAD CAP M3x16 (10)
93 0150 CARBIDE BALL-BEARING AXIAL F5-10 5x10x4 WITH GROOVE
94 0508 HIGH-SPEED BALL-BEARING 5x8x2.5 RUBBER SEALED (2)
96 4073 WASHER S 7x10x0.2 (10)
96 4074 WASHER S 7x10x0.3 (10)
96 4075 WASHER S 7x10x0.5 (10)
338740
902408
903310
338510
338710
338720
908310
908310
338594
359050
338584
338585
338586
338580
338574
338560
338590
338570
338550
338530
338540 (OPTION)
338541 (OPTION)
964073
964074
964075
940508
338516
930150
908316
338521
338584
338585
338586
338556
901406
Screw (not included)
338730
Pipe (not included)
Manifold (not included)
964073
S 7x10x0.2
964074
S 7x10x0.3
964075
S 7x10x0.5
Tighten the clutch
nut using HUDY tool
#107581
Use the cone that comes
with your engine
Hold the fl ywheel using
HUDY Flywheel Tool
#182010
Shim (for adjusting fl ywheel distance)
