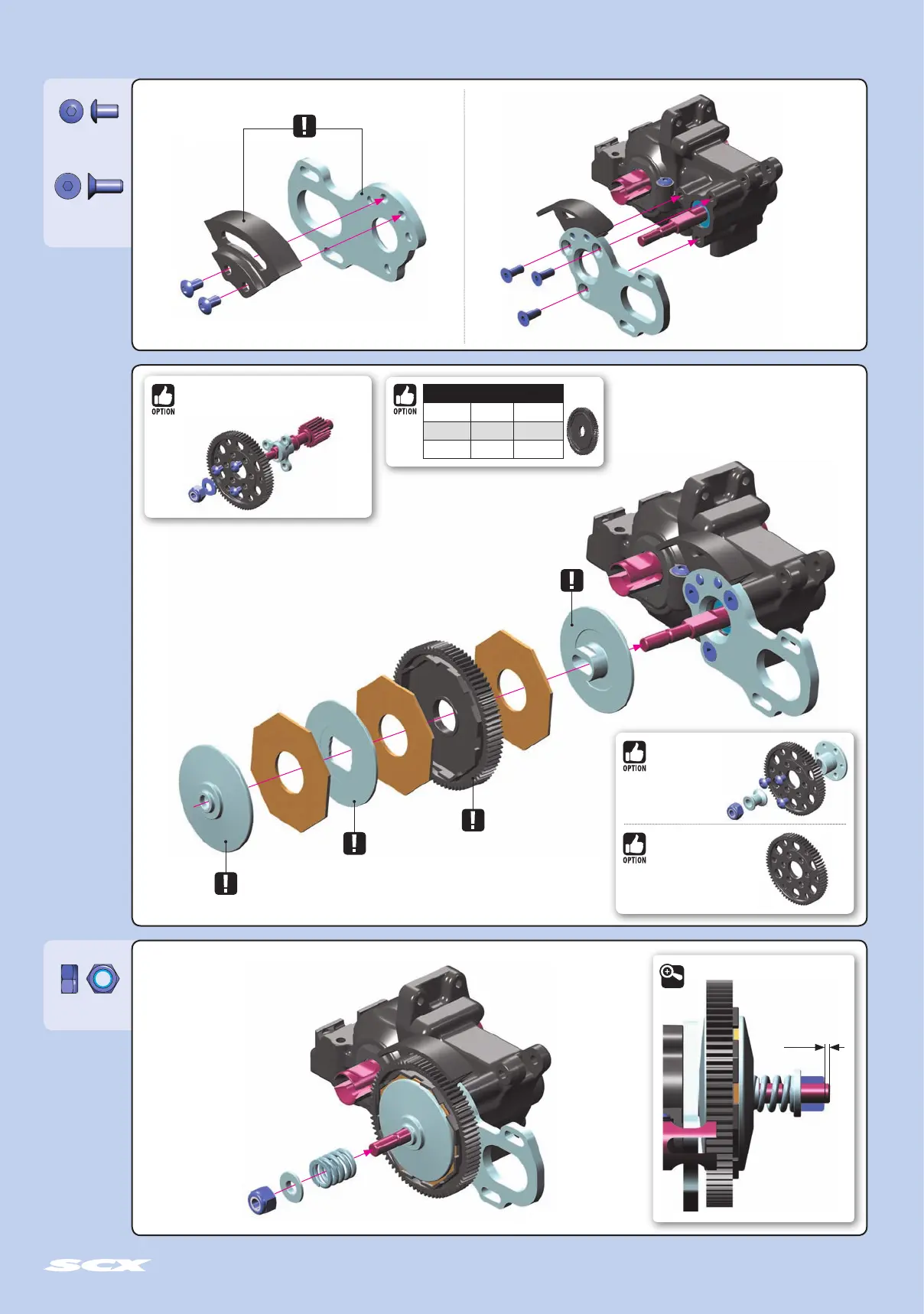

2. REAR TRANSMISSION
NOTE ORIENTATION
13
960040
N M4
NOTE ORIENTATION
NOTE ORIENTATION
NOTE ORIENTATION
NOTE ORIENTATION
DETAIL
INITIAL SETTING
Flush with end
of shaft
#324101
SLIPPER ELIMINATOR - SET
(69T / 48 SPUR GEAR)
#325872
SLIPPER ELIMINATOR
SPUR GEAR 72T / 48
902305
SH M3x5
903308
SFH M3x8
SLIPPER CLUTCH SPUR GEARS
#365875 75T / 48 OPTION
#365878 78T / 48 INCLUDED
#365881 81T / 48 OPTION
#324102
SOLID AXLE - LCG - LIGHTWEIGHT - SET
