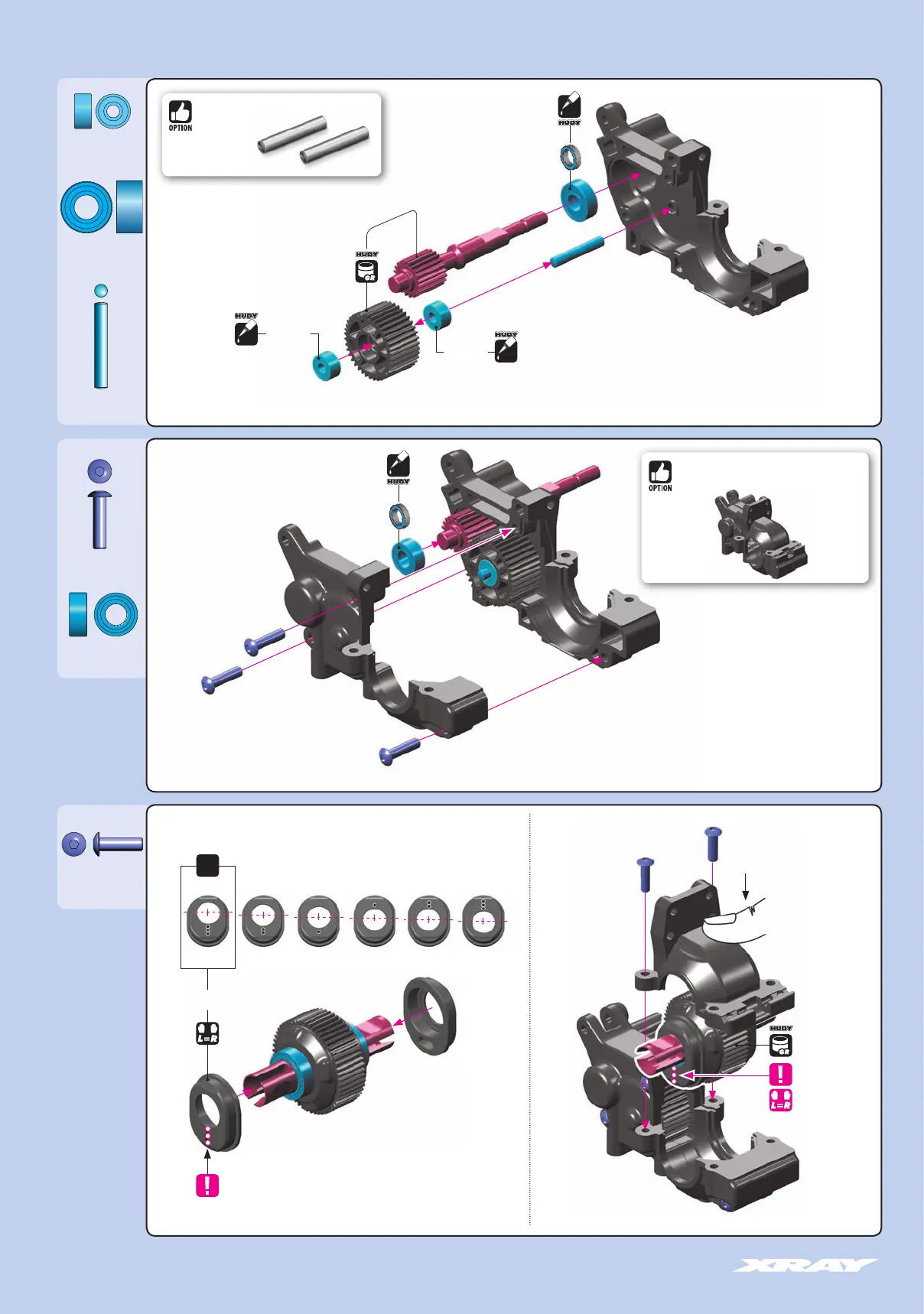

2. REAR TRANSMISSION
3 dots
3 dotsHIGHEST
2 dots
2 dotsHIGHER MIDDLE
1 dots
1 dots
DIFFERENTIAL HEIGHT ADJUSTMENT
INITIAL SETTING
2x
12
902310
SH M3x10
OIL
"CLICK"
GRAPHITE GREASE
(HUDY #106210)
GRAPHITE GREASE
(HUDY #106210)
OIL
BEARING OIL
(HUDY #106230)
940612
BB 6x12x4
980320
P 3x20
930308
BB 3x8x4
6x12x4mm
3x8x4mm
3x8x4mm
940510
BB 5x10x4
902312
SH M3x12
#323019-G
FRONT MOTOR GEAR BOX - LCG - GRAPHITE
Bearing with BLUE rubber covers
OIL
BEARING OIL
(HUDY #106230)
Bearing with BLUE rubber covers
OIL
BEARING OIL
(HUDY #106230)
NOTE ORIENTATION
NOTE ORIENTATION
Dots must have same orientation
on each side (dots up or down)
LOWESTLOWERMIDDLE
#980320-T
Titan Pin 3x20 (2)
