Xray XB8 Series User Manual

32
XB8E

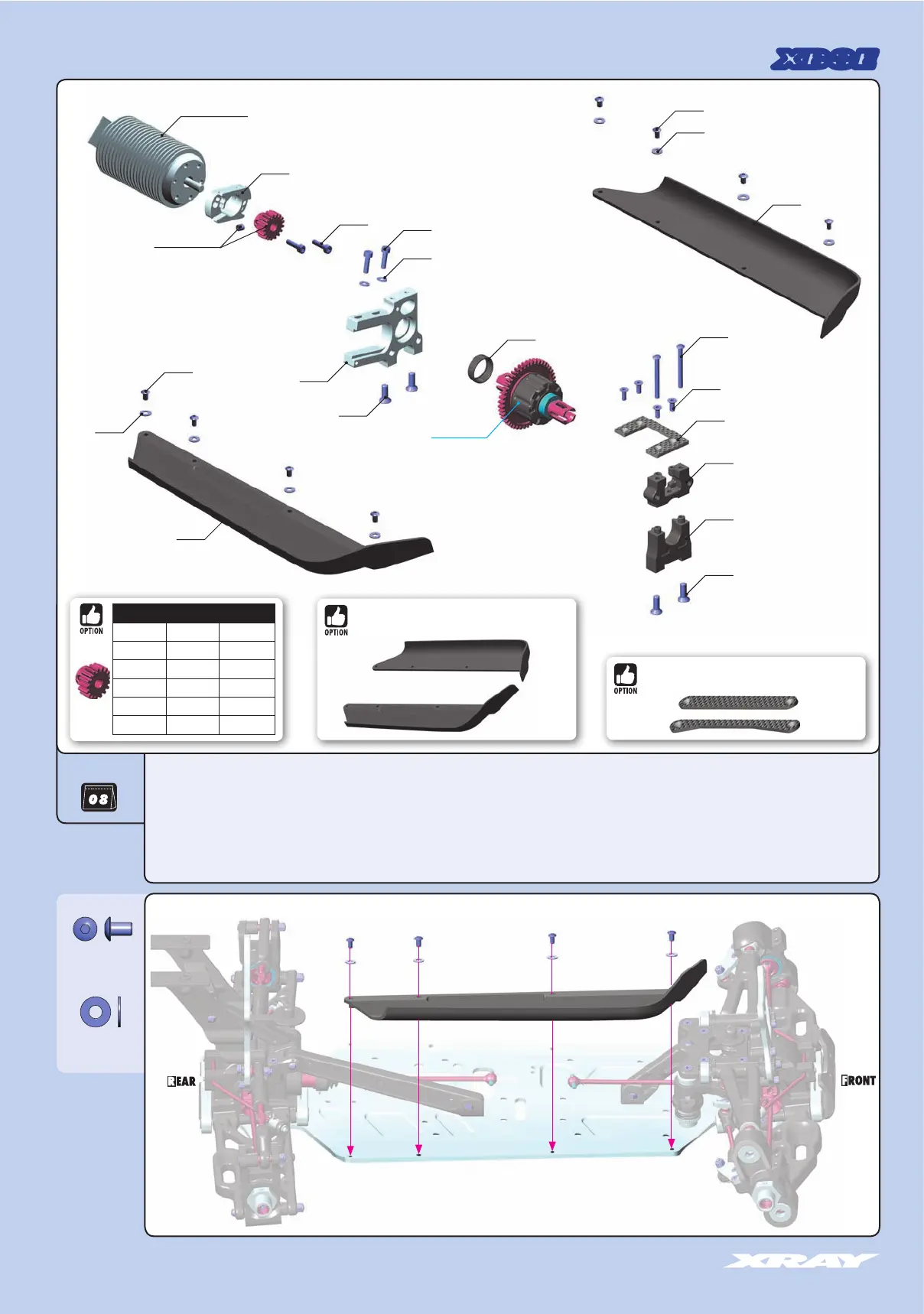

8. CENTER DIFF & MOTOR
BAG
351159
902330
352290
903308
354056
902305
902305
961032
961032
354011
354011
903412
908314
961032
Motor
(NOT INCLUDED)
358783
903412
351159
358786
355712-17
(NOT INCLUDED)
35 2290 COMPOSITE BUSHING FOR ALU STEERING BLOCK (4)
35 4011 CENTER DIFF MOUNTING PLATE SET - HIGHER
35 4056 GRAPHITE CENTER DIFF MOUNTING PLATE
35 5712~17 XRAY 12~17T PINION GEAR (OPTION)
35 8783 ALU MOTOR MOUNT PLATE - V2
35 8786 XB8E/XT8E ALU MOTOR MOUNT
90 2305 HEX SCREW SH M3x5 (10)
90 2330 HEX SCREW SH M3x30 (10)
90 3308 HEX SCREW SFH M3x8 (10)
90 3412 HEX SCREW SFH M4x12 (10)
90 8312 HEX SCREW SOCKET HEAD CAP M3x12 (10)
90 8314 HEX SCREW SOCKET HEAD CAP M3x14 (10)
90 8412 HEX SCREW SOCKET HEAD CAP M4x12 (10)
96 1032 WASHER S 3.2 (10)
35 1159 CHASSIS SIDE GUARDS L+R
XRAY PINION GEAR
#355712 12T OPTION
#355713 13T OPTION
#355714 14T OPTION
#355715 15T OPTION
#355716 16T OPTION
#355717 17T OPTION
902305
SH M3x5
961032
S 3.2
CENTER DIFF
#353250
XB8 GRAPHITE BRACE FOR CHASSIS SIDE GUARDS - SET
908312 or
908412
#351159-S
COMPOSITE CHASSIS SIDE GUARD L+R - SOFT
