Xray XB8 Series User Manual

31

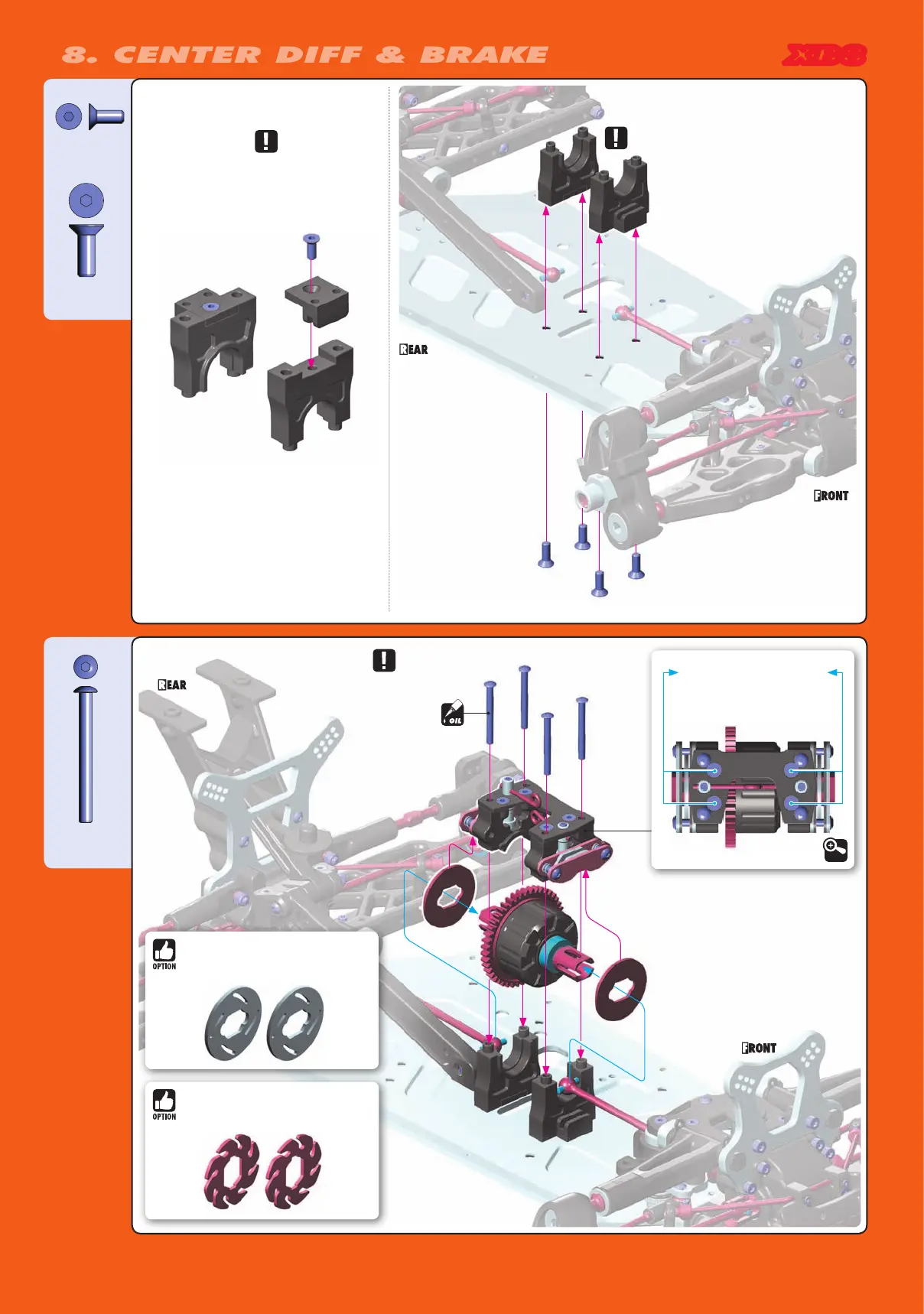

8. CENTER DIFF & BRAKE
NOTE ORIENTATION
Before inserting 3x30 long screws,
loosen the four flat-head screws in
the upper plate by 1/2 turn (CCW).
Tighten all screws after assembly.
DETAIL
Insert brake disk
between brake pads
All screws
902330
SH M3x30
NOTE ORIENTATION
OF ALL PARTS
NOTE ORIENTATION
OF ALL PARTS
3x8mm
4x12mm
903412
SFH M4x12
903308
SFH M3x8
#354113
SUPER-LIGHTWEIGHT VENTILATED BRAKE DISK -
PRECISION-GROUND (2)
#354112
LIGHTWEIGHT VENTILATED BRAKE DISK -
LASER CUT - PRECISION-GROUND (2)
XB8

Xray XB8 Series Specifications

General

Scale	1/8
Drive	4WD
Type	Buggy
Chassis	7075 T6 Aluminum
Body	Not included
