Xray XB8 Series User Manual

30
XB8

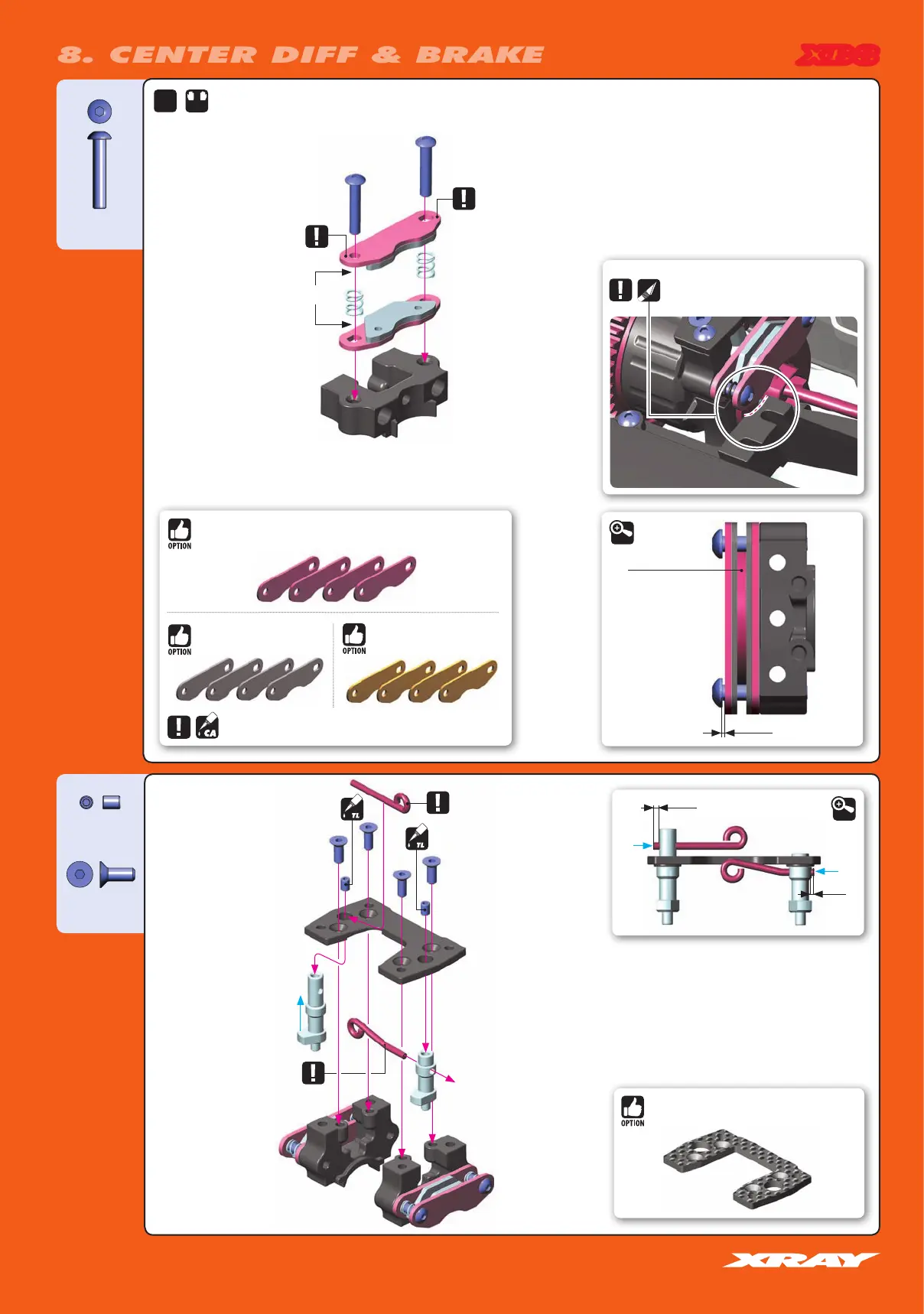

8. CENTER DIFF & BRAKE
902316
SH M3x16
901304
SB M3x4
903308
SFH M3x8
2x
F=R
STRAIGHT
BENT
Fibre pads together
OVAL HOLE
NOTE ORIENTATION
ROUND HOLE
NOTE ORIENTATION
Temporarily insert brake
disk between pads to set
correct gap
0.5 mm
DETAIL
3.0mm
0mm
DETAIL
BENT
STRAIGHT
When using ultra efficient brake pads you need to
remove from the servo holder on radio case.
#354057
GRAPHITE CENTER DIFF MOUNTING PLATE
#354132
BRAKE PAD “SLS” (4)
#354121
STEEL BRAKE PAD - LASER CUT (4)
It is necessary to glue the brake pad with strong CA glue suitable for steel.
#354130
BRAKE PAD FIBER (4)

Xray XB8 Series Specifications

General

Scale	1/8
Drive	4WD
Type	Buggy
Chassis	7075 T6 Aluminum
Body	Not included
