34
903412
SFH M4x12
908314
SCH M3x14
961032
S 3.2
908312
SCH M3x12
Pinion
355712
~
17 (NOT INCLUDED)
Gear mesh adjustment
Adjust gear mesh so there is minimal play between the gears.
TOO TIGHT gear mesh will put excessive strain on all parts and damage the parts.
TOO LOOSE gear mesh may result in stripped gears.
DETAIL

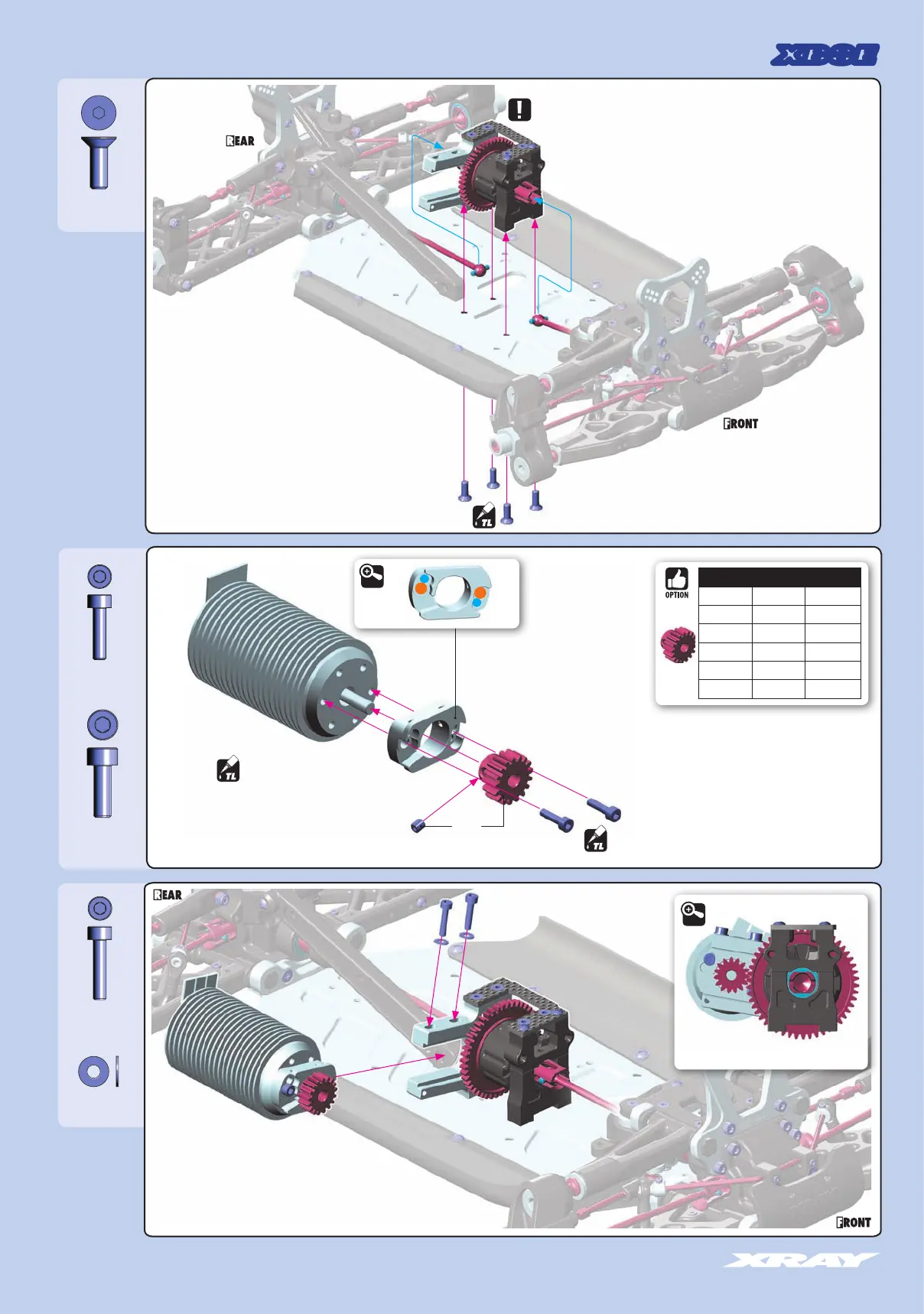

8. CENTER DIFF & BRAKE
NOTE ORIENTATION
All screws
XRAY PINION GEAR
#355712
12T OPTION
#355713
13T OPTION
#355714
14T OPTION
#355715
15T OPTION
#355716
16T OPTION
#355717
17T OPTION
DETAIL
M4
M4
M3
M3
Use M3 or M4 screws which fit your motor.
(M4 INITIAL SETTING)
908412
SCH M4x12
XB8E
