Xray XB8 Series User Manual

35
XB8
358513 CLUTCH BELL 13T
358533 FLYWHEEL - HIGH TORQUE - LIGHTWEIGHT
358540 FLYWHEEL COLLAR (OPTION)
358550 FLYWHEEL NUT - HUDY SPRING STEEL™
358564 ALU CLUTCH SHOE - HARD (3)
358589 HIGH TORQUE CLUTCH SPRINGS - HARD (3)
358680 FUEL TANK MOUNTING POST (2)
358685 FUEL TANK MOUNTING GROMMET (4)
358722 EXHAUST WIRE MOUNT SET
358724 ALU ENGINE MOUNT - CNC MACHINED (L+R)
358731 EXHAUST MOUNTING WIRE - LONG
358941 COMPOSITE TUBING HOLDER FOR FUEL TANK (2)
359050 BALL-BEARING 5x10x4 STEEL SEALED - GREASE - V2 (2)
901405 HEX SCREW SB M4x5 (10)
BAG

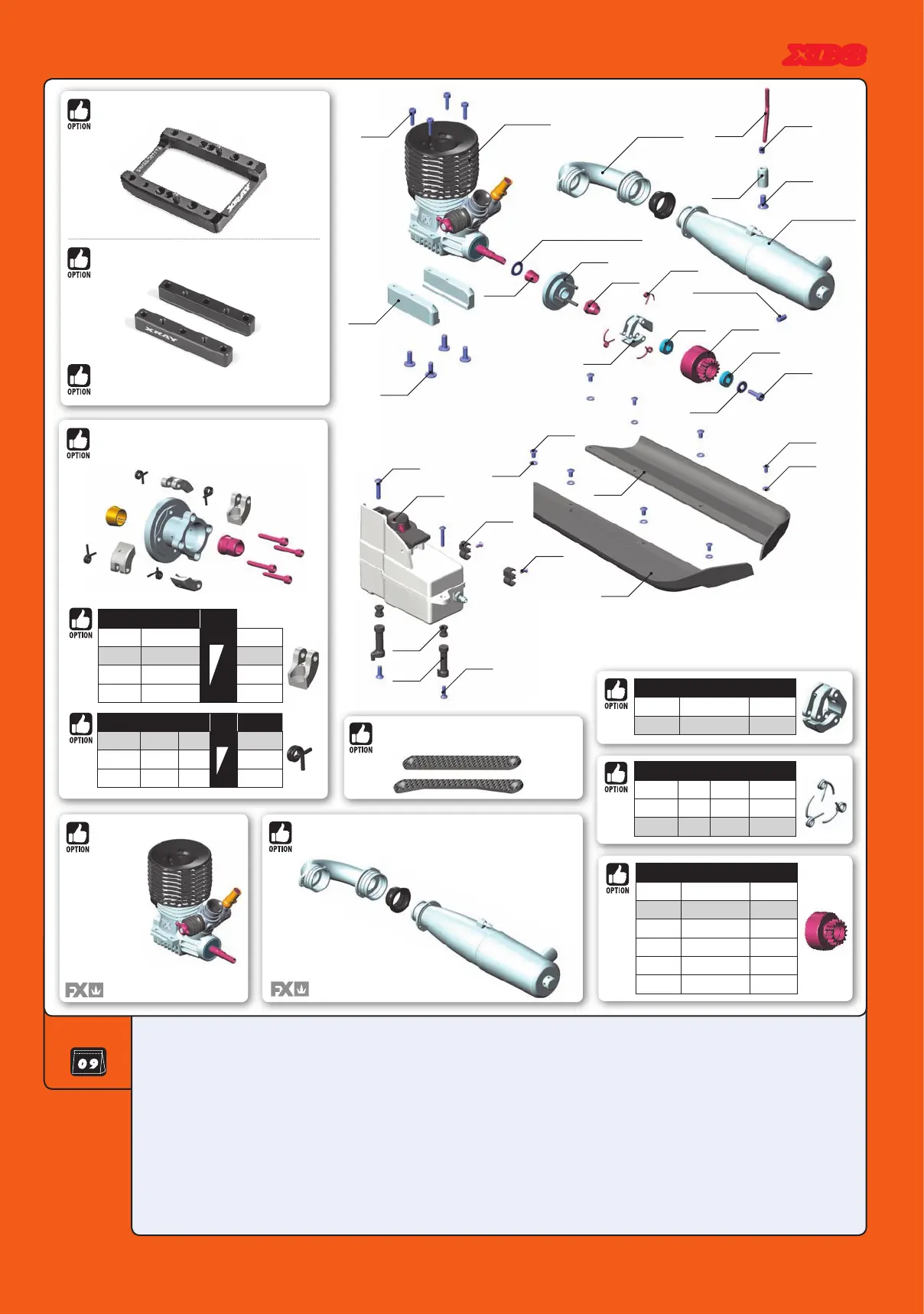

9. FUEL TANK & ENGINE
902305 HEX SCREW SH M3x5 (10)
902316 HEX SCREW SH M3x16 (10)
903310 HEX SCREW SFH M3x10 (10)
903410 HEX SCREW SFH M4x10 (10)
906206 SCREW PHILLIPS FH 2.2x6 (10)
908308 HEX SCREW (CAP HEAD) 3x8 (10)
908312 HEX SCREW (CAP HEAD) 3x12 (10)
911410 HEX SCREW FLANGED SH M4x10 (10)
961032 WASHER S 3.2 (10)
964073 WASHER S 7x10x0.2 (10)
964074 WASHER S 7x10x0.3 (10)
964075 WASHER S 7x10x0.5 (10)
351159 CHASSIS SIDE GUARDS L+R
358605 FUEL TANK 125CC WITH FLOATING FILTER & TRANSIENT JET
902316
906206
358941
358605
358685
358680
903310
908312
Engine
(NOT INCLUDED)
Manifold
(NOT INCLUDED)
Exhaust Pipe
(NOT INCLUDED)
Screw
(NOT INCLUDED)
358724
964073 / 964074 / 964075
358540
358550
358589
359050
358513
359050
358533
358564
961032
908308
351159
902305
961032
911410
351159
902305
961032
CLUTCHBELLS
#358512 12T OPTION
#358513 13T INCLUDED
#358514 14T OPTION
#358525 15T OPTION
#358517 13T Lightweight OPTION
#358518 14T Lightweight OPTION
903410
358722
901405
358731
HIGH TORQUE CLUTCH SPRING
#358587 GOLD SOFT OPTION
#358588 GRAY MEDIUM OPTION
#358589 SILVER HARD INCLUDED
CLUTCH SHOE
#358563 GRAPHITE (2) OPTION
#358564 ALU - HARD (3) INCLUDED
#353250
GRAPHITE BRACE FOR CHASSIS SIDE GUARDS - SET
#650103
FX K301 EC
- 3 PORTS
- DLC
- CERAMIC BEARING
- BALANCED
EUROPEAN CHAMPION
#659506 FX MUFFLER 3.5CC EFRA 2131 + MANIFOLD MEDIUM
#659507 FX MUFFLER 3.5CC EFRA 2108 + MANIFOLD SHORT-MEDIUM
EUROPEAN CHAMPION
4-SHOE ALU CLUTCH GRIP
#358458 SOFT (4) OPTION
#358459 MEDIUM (4) INCLUDED
#358460 HARD (4) OPTION
#358461 GRAPHITE (4) OPTION
HIGH
LOW
#358400
XRAY COMPLETE 4-SHOE CLUTCH SET
CLUTCH SPRINGS (4pcs) RPM
#358480 SOFT GOLD INCLUDED
#358481 MEDIUM GREY OPTION
#358482 HARD SILVER OPTION
EARLY
LATE
#358709
ALU MONOBLOCK ENGINE MOUNT - SWISS 7075 T6
#358718
ALU STAND (FX, NOVAROSSI, MAX, SIRIO)
#358719
ALU STAND (PICCO, REDS, ORION, LRP, OS, ULT. RACING)

Xray XB8 Series Specifications

General

Scale	1/8
Drive	4WD
Type	Buggy
Chassis	7075 T6 Aluminum
Body	Not included
