36
XB8
Threadlock on all screws
Threadlock on all screws
7x10x0.2 / 0.3 / 0.5
Use appropriate shims to achieve proper
clutchbell endplay
All screws
NOTE ORIENTATION
IMPORTANT!
When installing the engine, first check that the drive shaft does not
touch the engine. If it does, remove some material from the engine
mount as shown to make some room between engine and shaft.
908312
SCH M3x12
964073
S 7x10x0.2
964074
S 7x10x0.3
964075
S 7x10x0.5

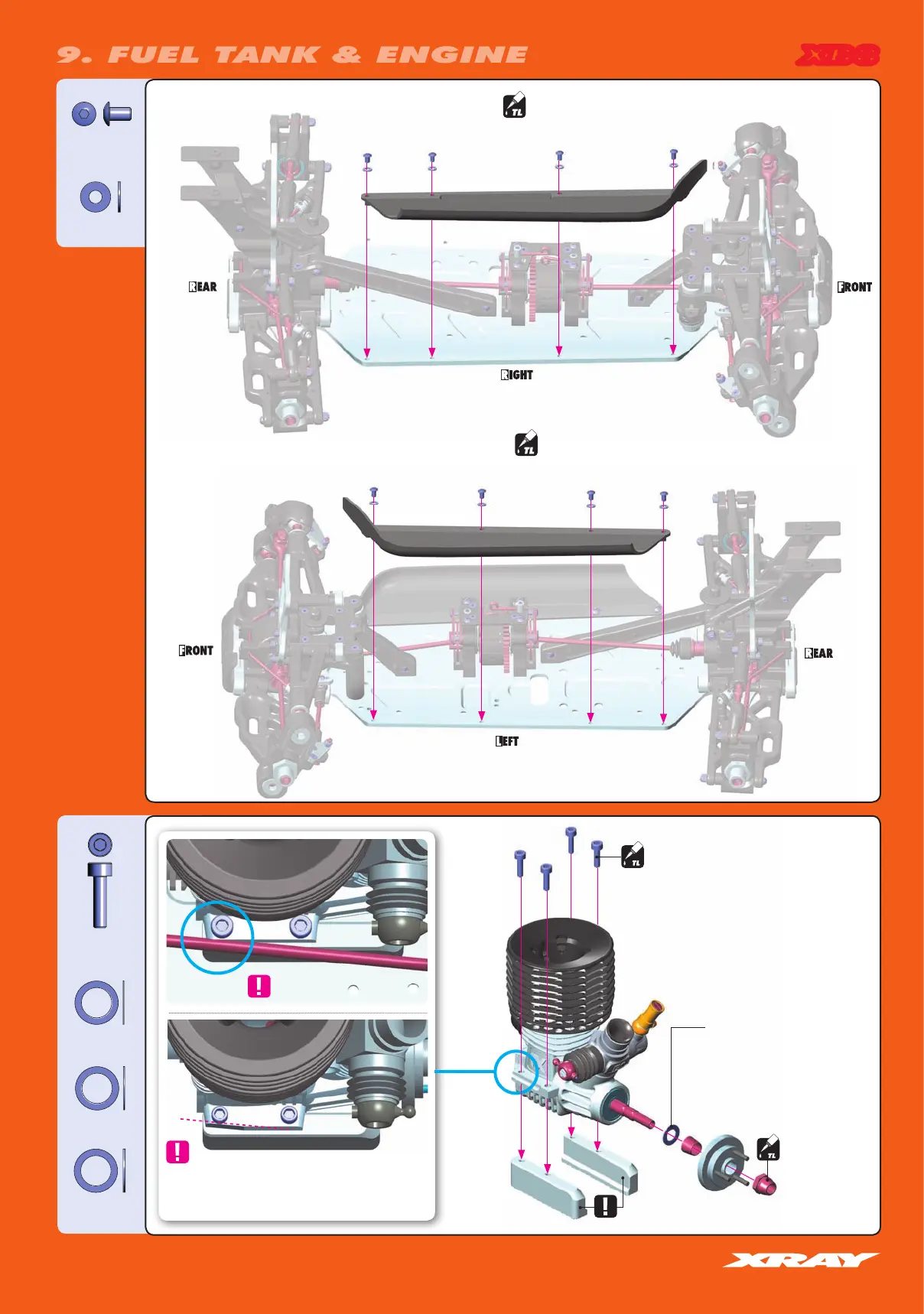

9. FUEL TANK & ENGINE
902305
SH M3x5
961032
S 3.2
