38
XB8
Cut away for
muffler outlet
Mufler screw
NOT INCL
UDED

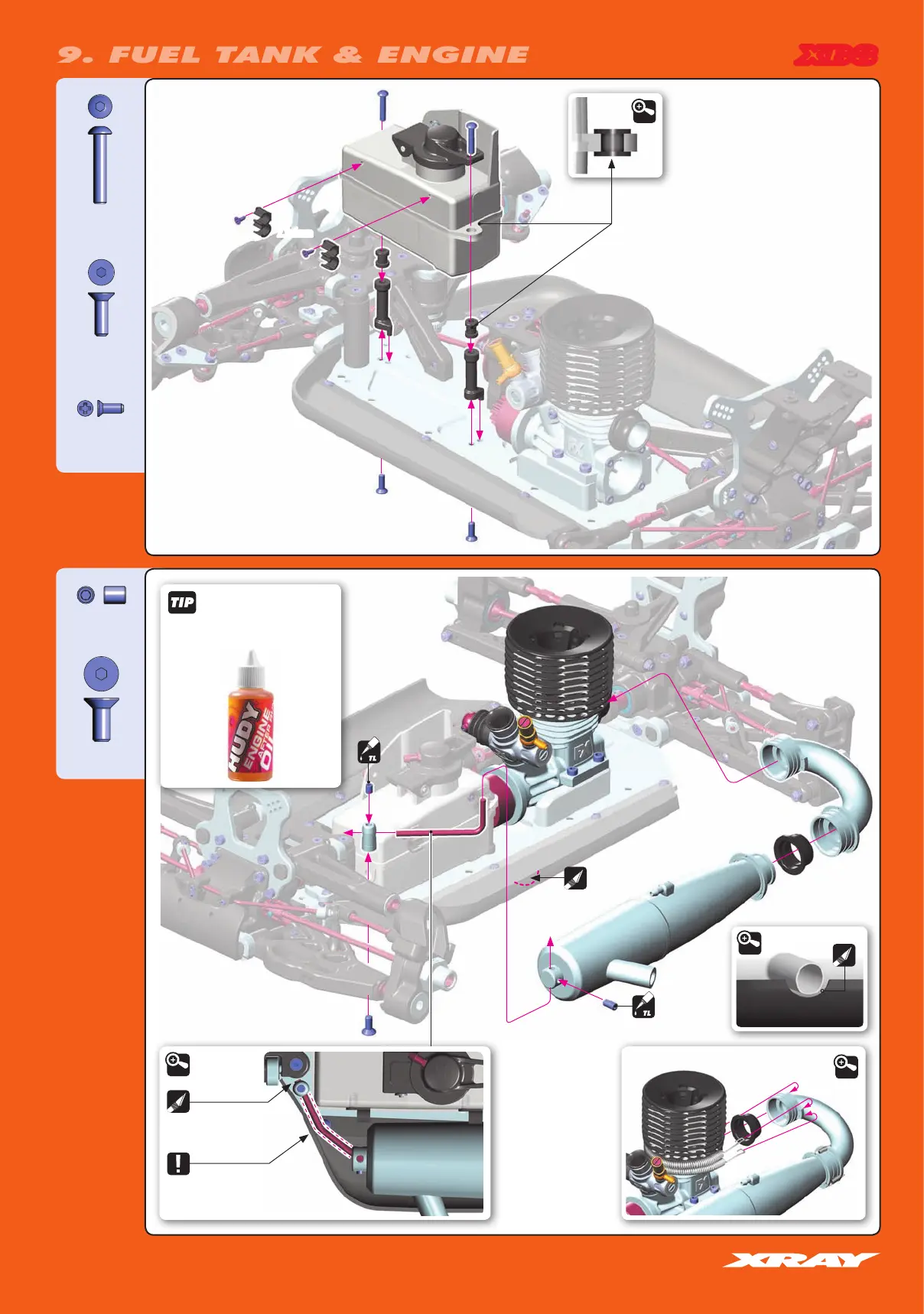

9.
FUEL
T
ANK
&
ENGINE
902316
SH M3x16
901405
SB M4x5
903410
SFH M4x10
903310
SFH M3x10
906206
SFP 2.2x6
3x10mm
3x16mm
2.2x6mm
DETAIL
DETAIL
DETAIL
Shorten the wire as
appropriate to fit the
muffler
Bend the exhaust wire as
appropriate to fit the muffler
DETAIL
After running your engine, apply
(#106250 HUDY ENGINE AFTER RUN OIL)
37
39
Table of Contents
Symbols Used
4
Tools Required
4
Equipment Required
4
Center Differential
8
Front Transmission
10
Rear Transmission
11
Rear Suspension
12
Front Suspension
18
Front & Rear Assembly
23
Final Assembly
48
Throttle Linkage Adjustment
52
Troubleshooting Guide
52
Maintenance
60
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Xray XB8 Series and is the answer not in the manual?
Ask a question
Xray XB8 Series Specifications
General
Scale
1/8
Drive
4WD
Type
Buggy
Chassis
7075 T6 Aluminum
Body
Not included
