Xray XB8 Series User Manual

39
BAG
10

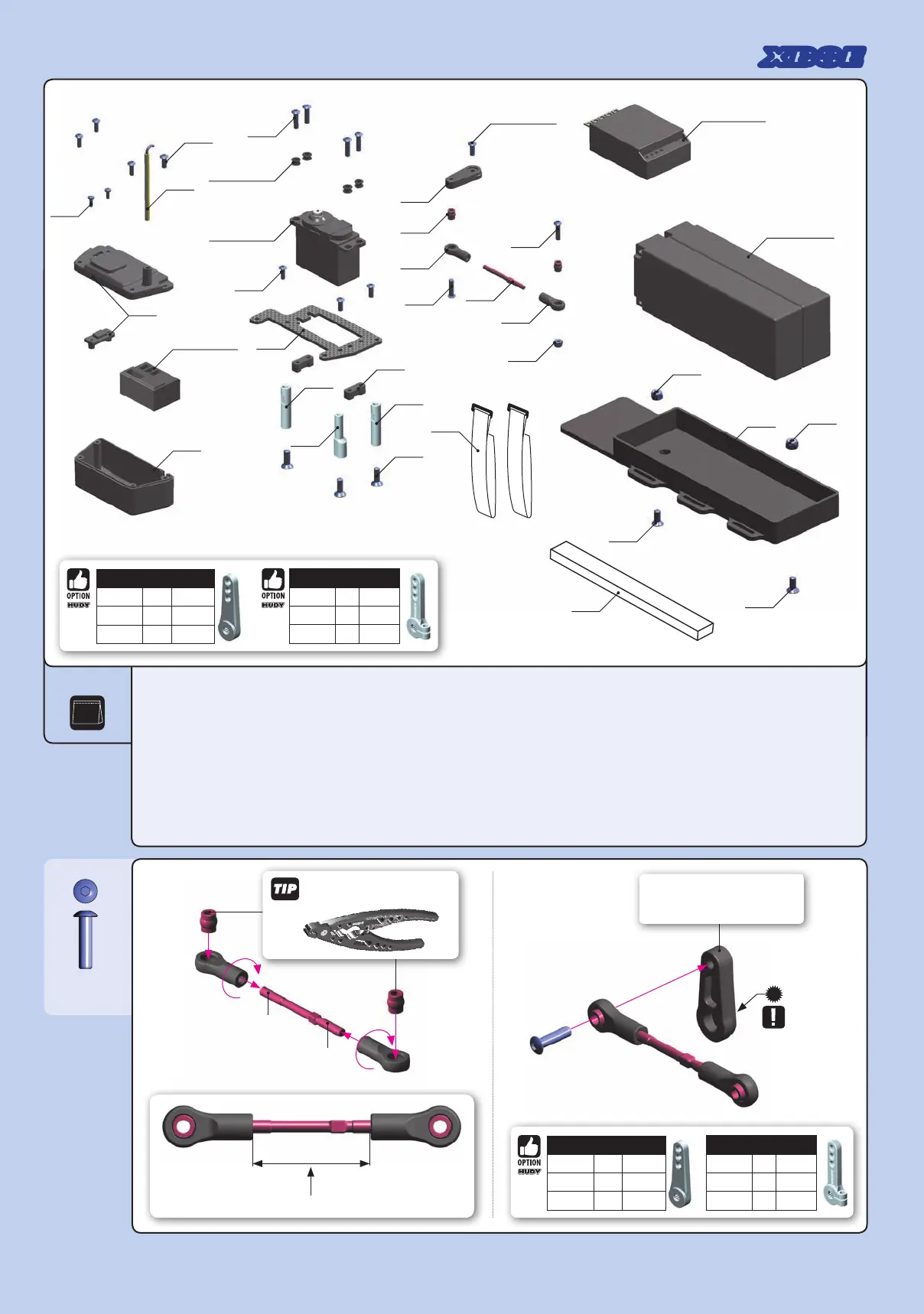

10. RADIO CASE
XB8E
902312
SH M3x12
30 2610 ADJ. TURNBUCKLE L/R 40 MM - HUDY SPRING STEEL (2)
33 6000 COMPOSITE RECEIVER CASE - V2
33 6060 RECEIVER SWITCH - SET (OPTION)
35 2460 PIVOT BALL 5.8 (10)
35 2670 SERVO BALL JOINT 5.8MM (4)
35 6119 GRAPHITE RECEIVER CASE TOP PLATE
35 6120 STEERING SERVO MOUNT - SET
35 6194 ALU MOUNT FOR RECEIVER BOX
35 6197 ALU ECCENTRIC MOUNT FOR RECEIVER BOX
35 6200 BRAKE/THROTTLE ARMS & STEERING SERVO ARMS - SET
38 9135 CONNECTING CABLE RECEIVER/BATT. PACK (OPTION)
90 2308 HEX SCREW SH M3x8 (10)
90 2312 HEX SCREW SH M3x12 (10)
90 2314 HEX SCREW SH M3x14 (10)
90 3410 HEX SCREW SFH M4x10 (10)
90 3412 HEX SCREW SFH M4x12 (10)
90 7206 SCREW PHILLIPS 2x6 (10)
96 0030 NUT M3 (10)
96 0040 NUT M4 (10)
30 6310 ANTENNA TUBE (2)
35 6152 COMPOSITE BATTERY PLATE
35 6160 VELCRO BATTERY STRAP 20x300MM (2)
NOTE
ORIENTATION
Use appropriate servo arm:
K - (23T) H - (24T) F - (25T)
356200
356120
356194
356194
903412
Receiver
(NOT INCLUDED)
336000
336000
902308
306310
Speed Controller
(NOT INCLUDED)
Servo Screw
(NOT INCLUDED)
LiPo Battery Pack
(NOT INCLUDED)
356152
960040
960040
907206
356160
903410
903410
902312
Servo Grommet
(NOT INCLUDED)
Steering Servo
(NOT INCLUDED)
902308
356119
352460
352670
902312
302610
352670
960030
902314
LEFT THREAD RIGHT THREAD
The length of the linkages varies according to the type of servo.
approx. 24mm
LEFT
THREAD
RIGHT
THREAD
356152
ALU SERVO HORNS
#293501 23T OPTION
#293502 24T OPTION
#293503 25T OPTION
356197
Install the pivot balls with Professional
Multi Tool (HUDY #183011)
CLAMP ALU SERVO HORNS
#293407 23T OPTION
#293408 24T OPTION
#293409 25T OPTION
ALU SERVO HORNS
#293501 23T OPTION
#293502 24T OPTION
#293503 25T OPTION
CLAMP ALU SERVO HORNS
#293407 23T OPTION
#293408 24T OPTION
#293409 25T OPTION

Xray XB8 Series Specifications

General

Scale	1/8
Drive	4WD
Type	Buggy
Chassis	7075 T6 Aluminum
Body	Not included
