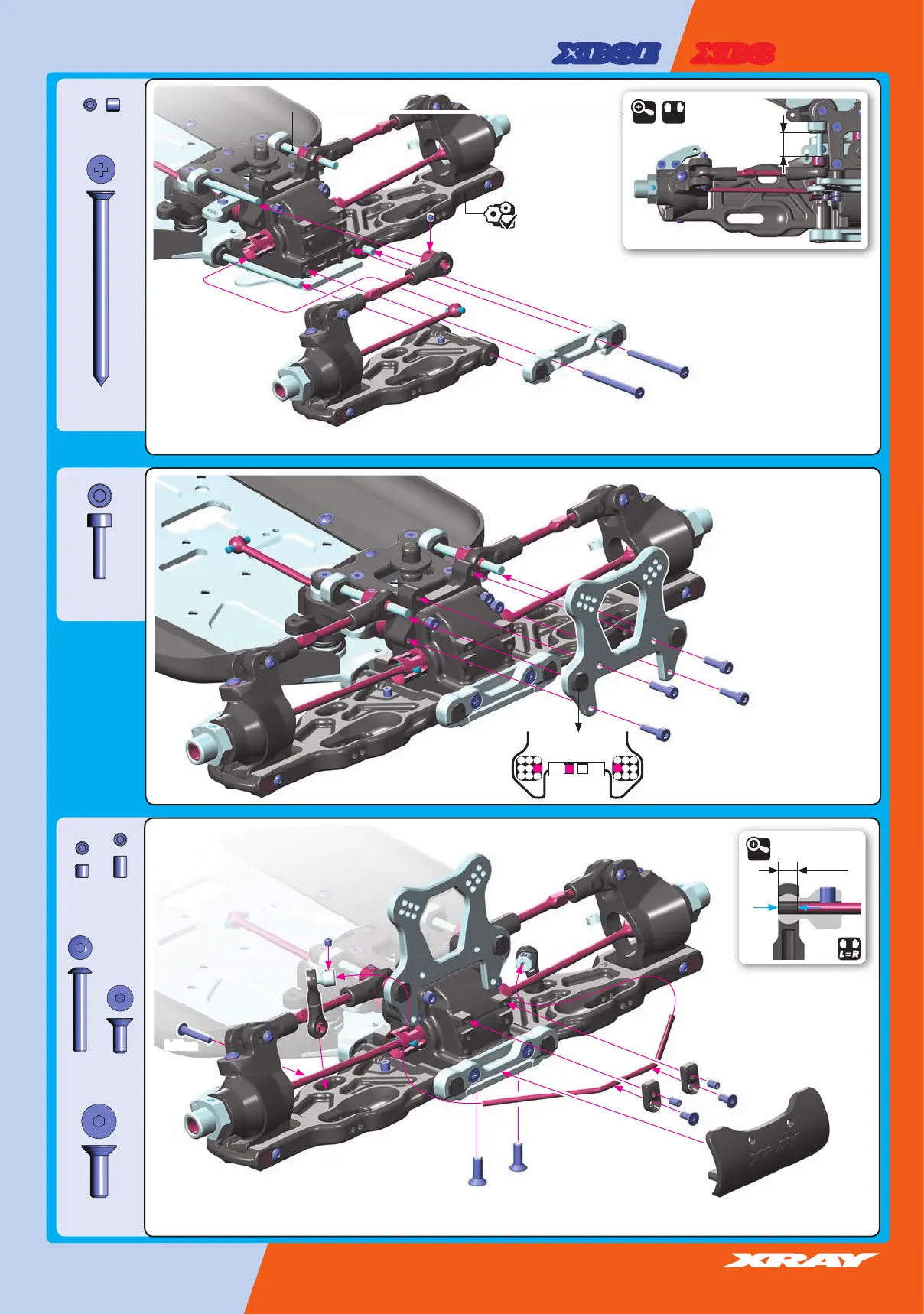

58
XB8
XB8E
909395
SS 3.5x45
901303
SB M3x3
1.5~2.5mm
STEP
DETAIL
➍
901303
SB M3x3
901305
SB M3x5
902318
SH M3x18
903308
SFH M3x8
903412
SFH M4x12
DETAIL
FRONT
C
-HUB
SUSPENSION
DETAIL
17.5mm
L=R
INITIAL SETTING
908312
SCH M3x12
➊
➋
➌
➍
➎
➏
➐
3x3mm
3x5mm
3x8mm
4x12mm
3x18mm
0.5º
1º
57
