59
XB8XB8E
303128-K
SHIM 3x6x6
Install the pivot balls with Professional
Multi Tool (HUDY #183011)
On the front right arm use the SILVER M3x18
screw - this screw has LEFT THREAD
3x18mm
INITIAL SETTING
902319
SH M3x18
LEFT thread
960030
N M3
902318
SH M3x18
INITIAL SETTING
INITIAL SETTING
Use STANDARD
M3x18 screw
6mm
960030
N M3
902318
SH M3x18
DETAIL
24mm24mm

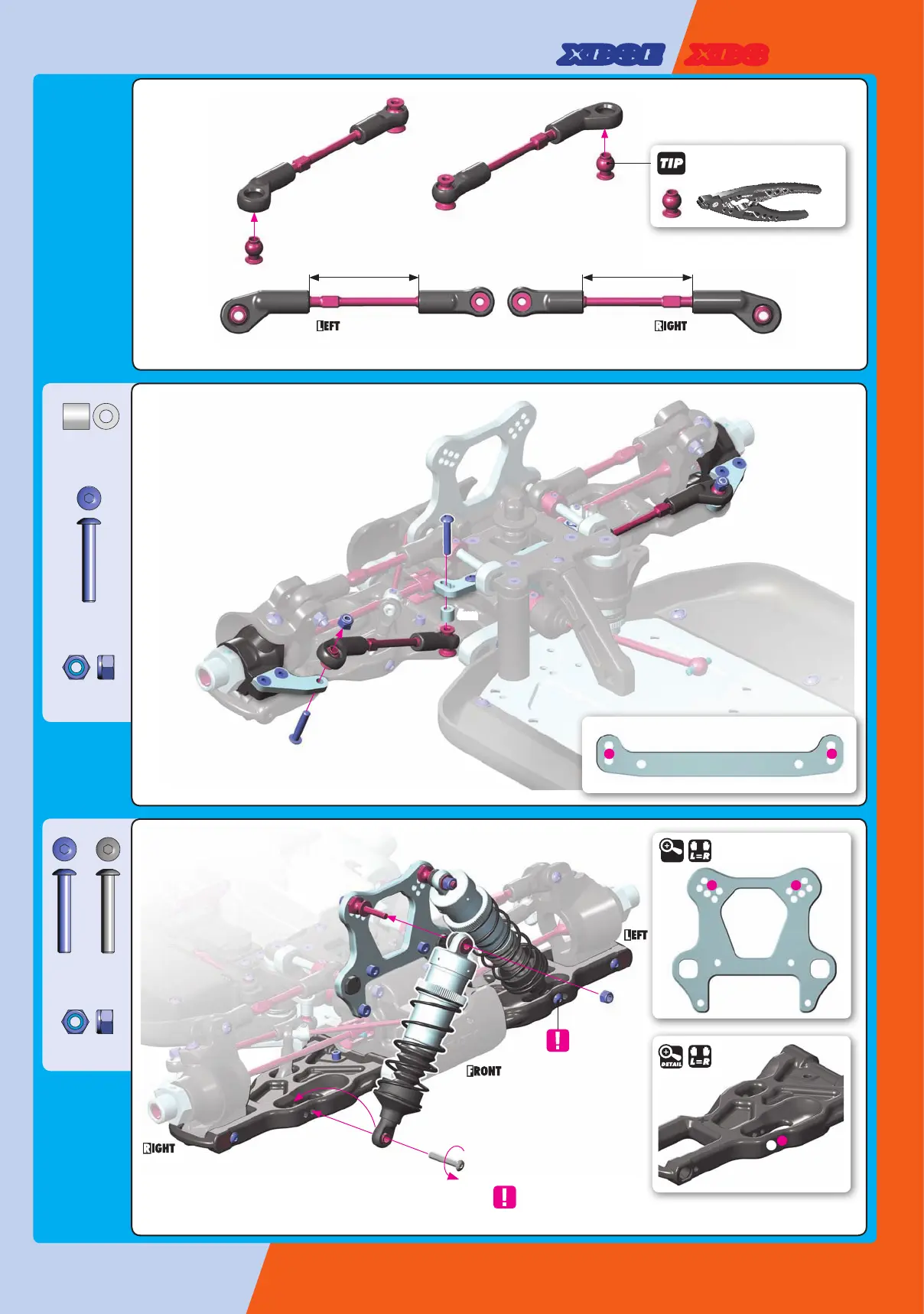

FRONT C-HUB SUSPENSION
