Xray XB8 User Manual

17
BAG 00.9
BAG 00.9

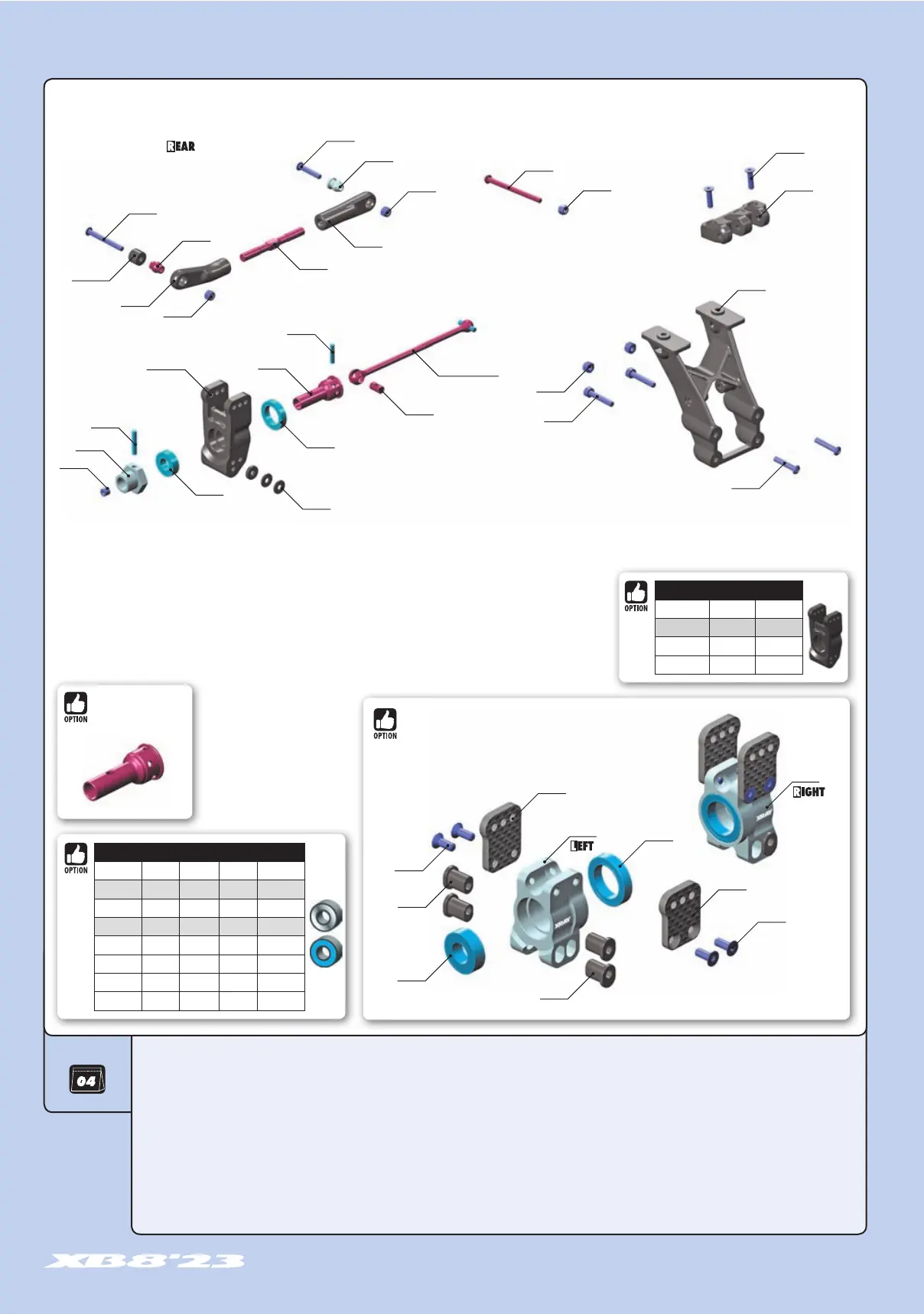

4. REAR SUSPENSION
352634 ADJ. TURNBUCKLE M5 L/R 50 MM - HUDY SPRING STEEL™ (2)
353020 COMPOSITE REAR BRACE HOLDER
353130 REAR UPPER INNER CAMBER LINK BALL JOINT (2)
353151 RELIEF REAR UPPER OUTER CAMBER LINK BALL JOINT (2)
353160 MOUNTING BALL 6.8 (4)
353170 PIVOT BALL 6.8 (4)
353354-H COMPOSITE REAR UPRIGHT - HARD
353370 SET OF COMPOSITE REAR HUB CARRIER SHIMS
353526 COMPOSITE REAR WING HOLDER FOR SEMI-SPLIT BULKHEAD
355211 CVD DRIVE AXLE - HUDY SPRING STEEL™
355223 CVD UNIVERSAL DRIVE SHAFT 93MM - HUDY SPRING STEEL™
355237 CVD DRIVE SHAFT COUPLING - HUDY SPRING STEEL™
355252 ALU WHEEL AXLE OFFSET "+2MM"- BLACK COATED (2)
BAG
357331 REAR LOWER OUTER PIVOT PIN SCREW 3MM (2)
901504 HEX SCREW SB M5x4 (10)
902314 HEX SCREW SH M3x14 (10)
902318 HEX SCREW SH M3x18 (10)
902330 HEX SCREW SH M3x30 (10)
903312 HEX SCREW SFH M3x12 (10)
908318 HEX SCREW SOCKET HEAD CAP SCH M3x18 (10)
940816 BALL-BEARING 8x16x5 RUBBER SEALED - GREASE (2)
941318 BALL-BEARING 13x19x4 RUBBER SEALED - GREASE (2)
960030 NUT M3 (10)
980263 PIN 2.5x13 (10)
980317 PIN 3x17 (10)
960030
353170
902330
353354-H
353151
902318
352634
353160
353020
903312
960030
960030
353130
901504
902314
960030
355223 (93mm)
355237
980263
355211
941318
353370
940816
357331
353354-H
980317
355252
908318
353526
XRAY BALL-BEARINGS
#930816 8x16x5 GREASE STEEL OPTION
#940816 8x16x5 GREASE RUBBER INCLUDED
#931318 13x19x4 GREASE STEEL OPTION
#941318 13x19x4 GREASE RUBBER INCLUDED
#930817 8x16x5 OIL STEEL OPTION
#940817 8x16x5 OIL RUBBER OPTION
#931319 13x19x4 OIL STEEL OPTION
#941319 13x19x4 OIL RUBBER OPTION
#355215
CVD ADJUSTABLE DRIVE
AXLE - HUDY SPRING
STEEL™
REAR UPRIGHTS
#353354 MEDIUM OPTION
#353354-H HARD INCLUDED
#353354-G GRAPHITE OPTION
#350908 ALU-SET OPTION
#350908
XRAY XB8 ALU REAR UPRIGHTS - SET
903308
353185
940816
353185
353394
353394
931320
903308
353366
353366
