18

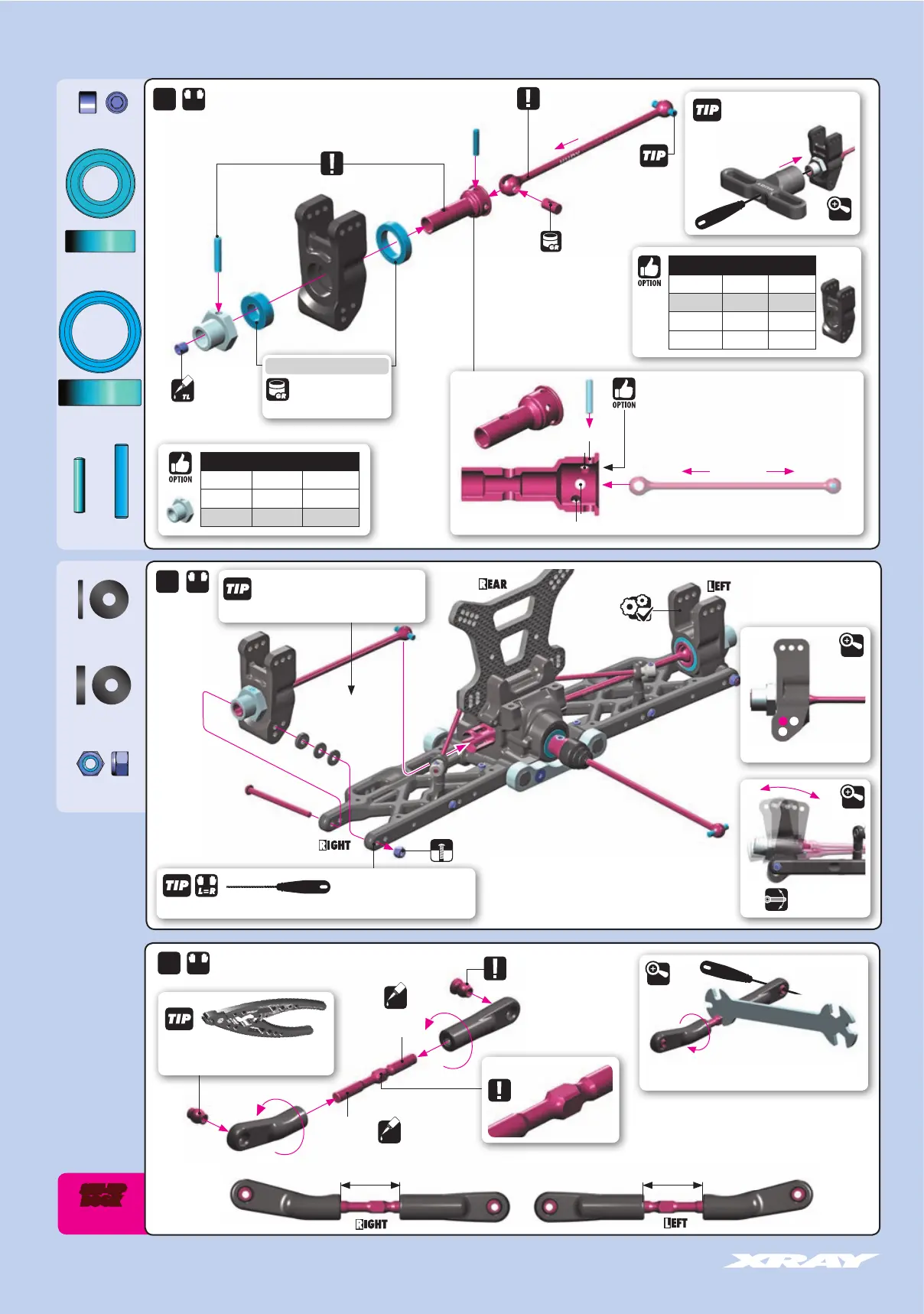

4. REAR SUSPENSION
CAMBER
980317
P 3x17
901504
SB M5x4
941318
BB 13x19x4
980263
P 2.5x13
940816
BB 8x16x5
353370
SHIM 3x9x1
353370
SHIM 3x9x2
960030
N M3
Ensure that the rear upright moves freely.
If it does not move freely, use sandpaper
to thin both wheelbase adjustment shims.
Shims for wheelbase
adjustment
DO NOT overtighten the self-locking nut.
Overtightening may result in suspension binding.
If the rear upright does not move freely, use a HUDY Arm Reamer to resize the hole.
ARM REAMER
2+1+1mm
INITIAL SETTING
(HUDY #107643)
2x
L=R
Check for free
movement.
DETAIL
DETAIL
RIGHT
THREAD
LEFT
THREAD
OIL
OIL
RIGHT THREAD
RIGHT THREAD
LEFT THREAD
LEFT THREAD
26.5mm 26.5mm
NOTE
ORIENTATION
NOTE ORIENTATION
➊
➋
➌
➏
➐
➑
➍
➎
8x16x5mm
3x17mm
2.5x13mm
13x19x4mm
To tighten the setscrew you can
also use the HUDY 17mm Wheel
Nut Tool #107570.
2.5mm
DETAIL
93mm
- SHORT CVD DRIVE SHAFT
2x
L=R
BOOK
SET-UP
DETAIL
Use tools to tighten as shown.
Special Tool for all turnbuckles & nuts (HUDY #181090)
or Turnbuckle Wrench 5mm (HUDY #181050).
Install the pivot balls with Professional
Multi-Tool (HUDY #183011).
2x
L=R
OFFSET WHEEL AXLES
#355250 0mm OPTION
#355251 +1mm OPTION
#355252 +2mm INCLUDED
NOTE ORIENTATION
Use HUDY Ball-Bearing Grease
#106220 - STANDARD
#106221 - BLUE
#106222 - RED
Graphite Grease
(HUDY #106210)
Follow the TECH TIP on page
5 for drive shaft pin servicing.
1
4 | 3 | 2 | 1
4
3
2
Drive shaft position
#355215
CVD ADJUSTABLE DRIVE AXLE - HUDY SPRING STEEL™
REAR UPRIGHTS
#353354 MEDIUM OPTION
#353354-H HARD INCLUDED
#353354-G GRAPHITE OPTION
#350908 ALU-SET OPTION
To Next Page
