26
PUSH

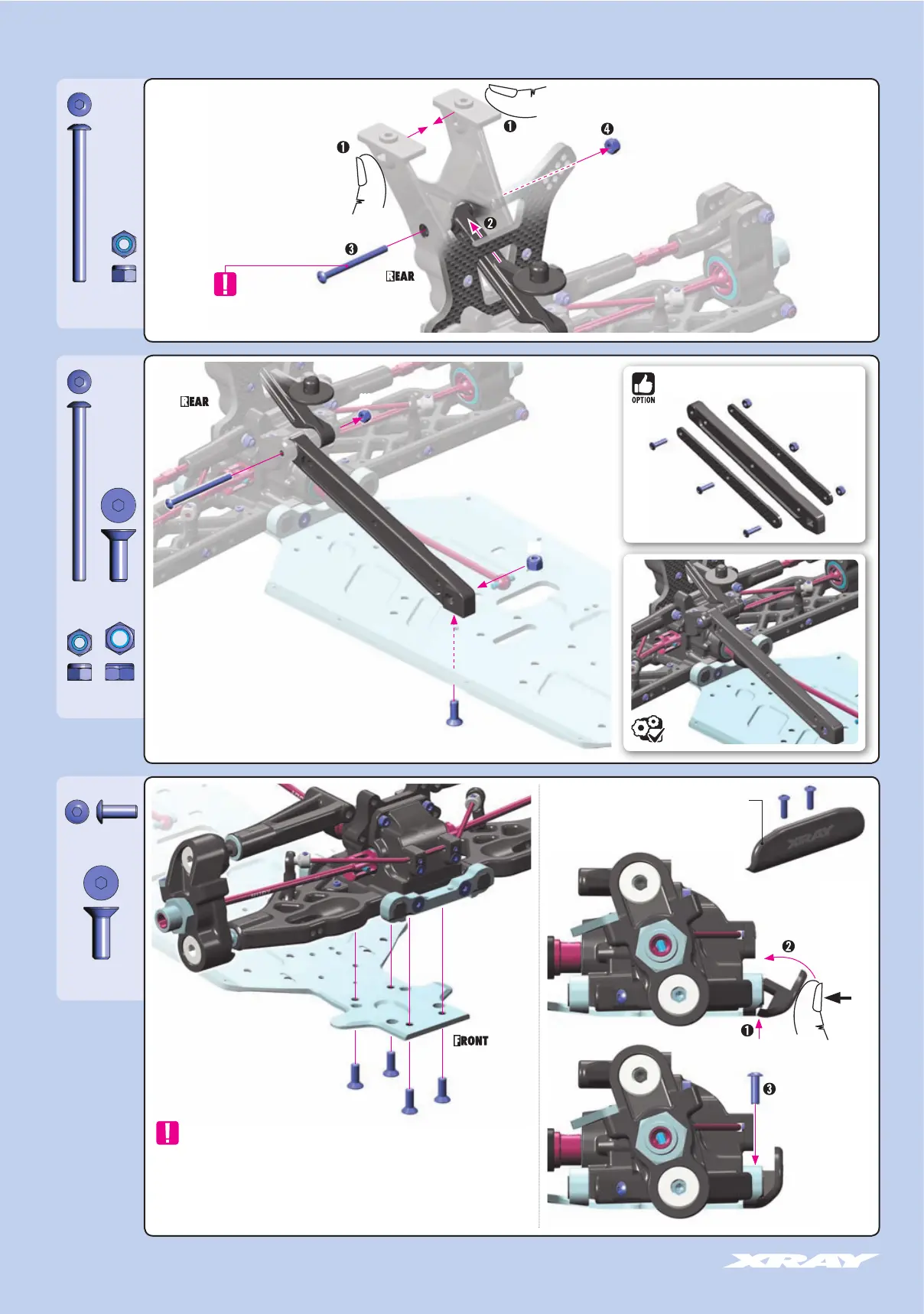

6. FRONT & REAR ASSEMBLY
902335
SH M3x35
902340
SH M3x40
903412
SFH M4x12
960030
N M3
960030
N M3
960040
N M4
903412
SFH M4x12
M3
M4
#353280
GRAPHITE BRACE SET for extra stiffness adjustment.
Push the top of the holder
together with fingers to insert
the brace with body post.
During assembly, there is no need to check gear mesh or diff play. In particular, DO NOT check gear
mesh and diff play when the differential is installed only in the gear box without the suspension
holders and without being mounted to the chassis. All parts have specifically designed play, and
only when the car is fully assembled will it have the proper amount of play where necessary. Only
once you build the entire car, then you can check for free movement of all rotational parts and
drivetrain as well a free non-binding operation of suspension parts.
FRONT BUMPER ASSEMBLY
902308
SH M3x8
Overtightening will deform the composite wing holder,
and will not allow you to mount the wing as per the
instructions on page 46 step 2.
