Xray XB8 User Manual

27
BAG 00.9
BAG 00.9

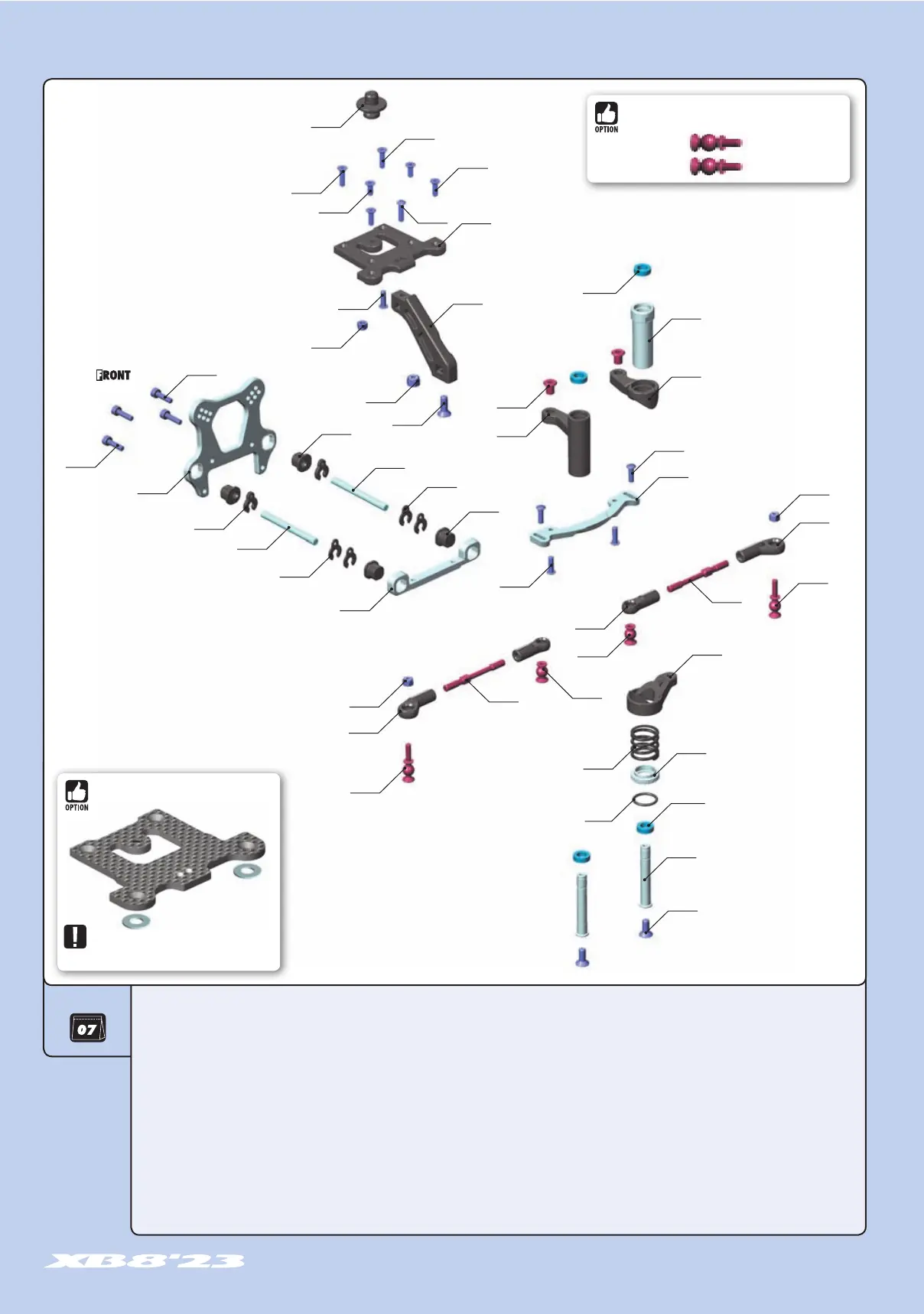

7. STEERING
351301 BODY POSTS
351350 COMPOSITE UPPER PLATE WITH TWO BRACE POSITIONS
352054 ALU FRONT SHOCK TOWER FOR SEMI-SPLIT BULKHEAD (4MM)
352084 COMPOSITE FRONT BRACE
352314 COMPOSITE SQUARE ADJ. ROLL CENTER BUSHINGS - V2 (2)
352334 ALU FRONT UPPER ARM HOLDER FOR SEMI-SPLIT BULKHEAD
352381 CASTER CLIPS (2)
352508 SERVO SAVER FOR SEMI-SPLIT BULKHEAD - GRAPHITE - SET
352516 COMPOSITE SERVO SAVER FOR SEMI-SPLIT BULKHEAD - GRAPHITE
352554 ALU SERVO SAVER PIVOT SHAFT WITH CHASSIS LOCK (2)
352561 SERVO SAVER SPRING PROGRESSIVE
352576 STEERING PLATE BUSHING (2)
352582 ALU STEERING PLATE FOR SEMI-SPLIT BULKHEAD - SWISS 7075 T6
352612 ADJ. TURNBUCKLE M4 L/R 45 MM - HUDY SPRING STEEL™ (2)
352653 BALL STUD 6.8MM WITH BACKSTOP - M3 (2)
352659 BALL STUD 6.8MM WITH BACKSTOP L=6MM - M3x11 (2)
352664 COMPOSITE STEERING BALL JOINT 6.8MM - V3 (2)
BAG
352576
352516
902308
357222
357222
960030
352653
352666
352666
352659
960030
902310
960040
352612
352612
351301
903310
903312
903308
940610
352508
352516
352582
902310
960030
352664
352659
352516
352561
352508
970121
940610
352554
903410
903312
351350
352084
352381
352381
352381
352334
352314
352314
908312
908312
352054
903412
352666 COMPOSITE RELIEF STEERING BALL JOINT 6.8MM (2)
357222 FRONT UPPER PIVOT PIN 4x45 (2)
902308 HEX SCREW SH M3x8 (10)
902310 HEX SCREW SH M3x10 (10)
902312 HEX SCREW SH M3x12 (10)
903308 HEX SCREW SFH M3x8 (10)
903310 HEX SCREW SFH M3x10 (10)
903312 HEX SCREW SFH M3x12 (10)
903410 HEX SCREW SFH M4x10 (10)
903412 HEX SCREW SFH M4x12 (10)
908312 HEX SCREW SOCKET HEAD CAP SCH M3x12 (10)
940610 BALL-BEARING 6x10x3 RUBBER SEALED - OIL (2)
960030 NUT M3 (10)
960040 NUT M4 (10)
970121 O-RING 12.1 x 1.6 (10)
352653
902312
#352658
BALL STUD 6.8mm WITH BACKSTOP L=6mm - M3x8 (2)
#351351
GRAPHITE UPPER PLATE
Must be used also 2pcs of #357256 shim 6x13x1mm.
NOTE
