33
33

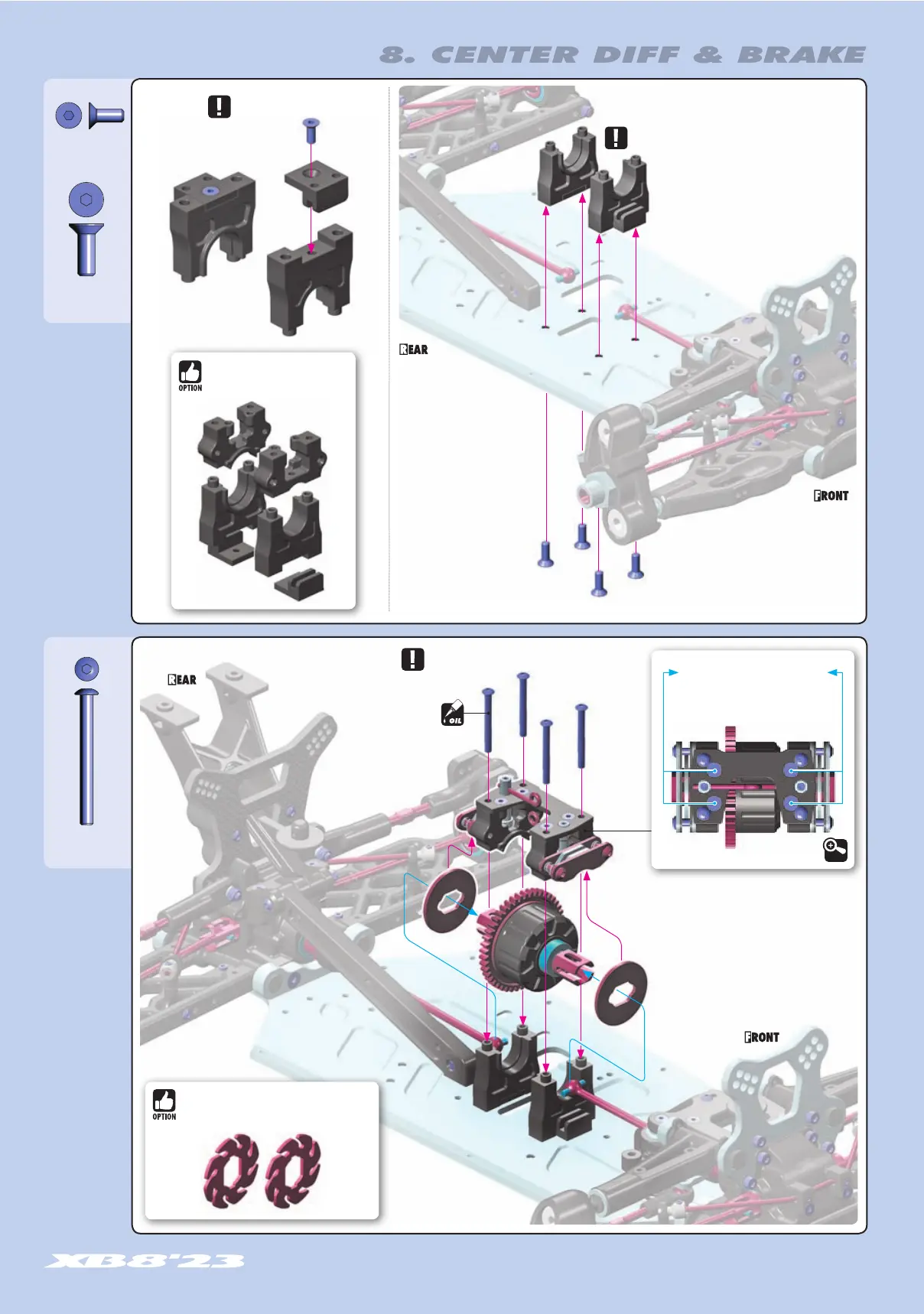

8. CENTER DIFF & BRAKE
NOTE ORIENTATION
Before inserting 3x30 long screws,
loosen the four flat-head screws in
the upper plate by 1/2 turn (CCW).
Tighten all screws after assembly.
DETAIL
Insert brake disk
between brake pads.
All screws
902330
SH M3x30
NOTE ORIENTATION
OF ALL PARTS
NOTE ORIENTATION
OF ALL PARTS
3x8mm
4x12mm
903412
SFH M4x12
903308
SFH M3x8
#354113
SUPER-LIGHTWEIGHT VENTILATED BRAKE DISK -
PRECISION-GROUND (2)
#354011-G
CENTER DIFF MOUNTING PLATE SET
HIGHER - GRAPHITE
