Xray XB8 User Manual

32

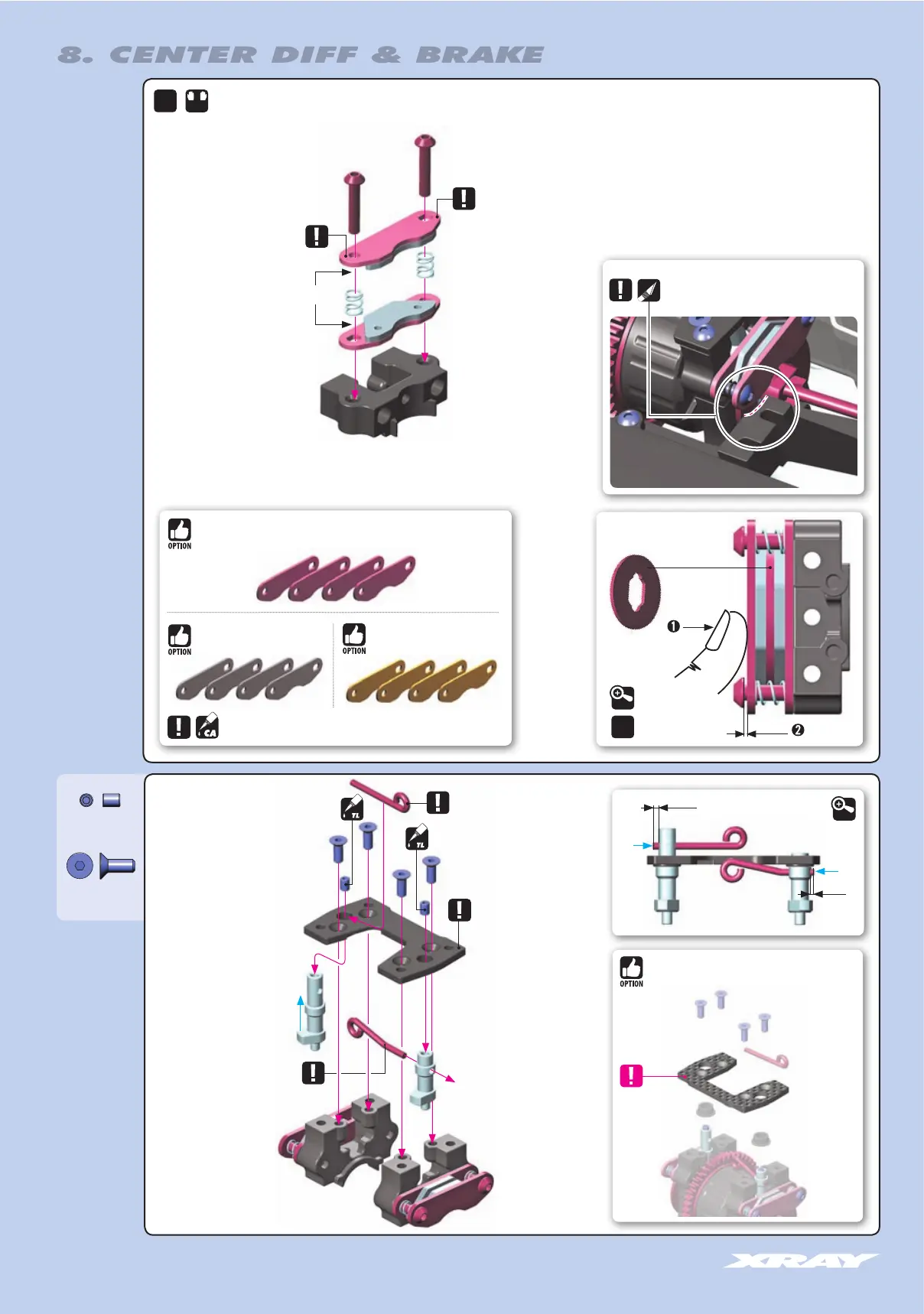

8. CENTER DIFF & BRAKE
901304
SB M3x4
903308
SFH M3x8
2x
F=R
STRAIGHT
BENT
Fibre pads together
OVAL HOLE
NOTE ORIENTATION
ROUND HOLE
NOTE ORIENTATION
NOTE ORIENTATION
2.0mm
1mm
DETAIL
BENT
STRAIGHT
When using ultra-efficient brake pads you need to
remove from the servo holder on radio case.
#354132
BRAKE PAD “SLS” (4)
#354121
STEEL BRAKE PAD - LASER CUT (4)
It is necessary to glue the brake pad with strong CA glue suitable for steel.
#354130
BRAKE PAD FIBER (4)
#354057
GRAPHITE CENTER DIFF MOUNTING PLATE
REVERT
ORIENTATION
0.5 mm
DETAIL
Press fully
Set value
2x
Temporarily insert BRAKE DISK
between pads to set correct gap.
