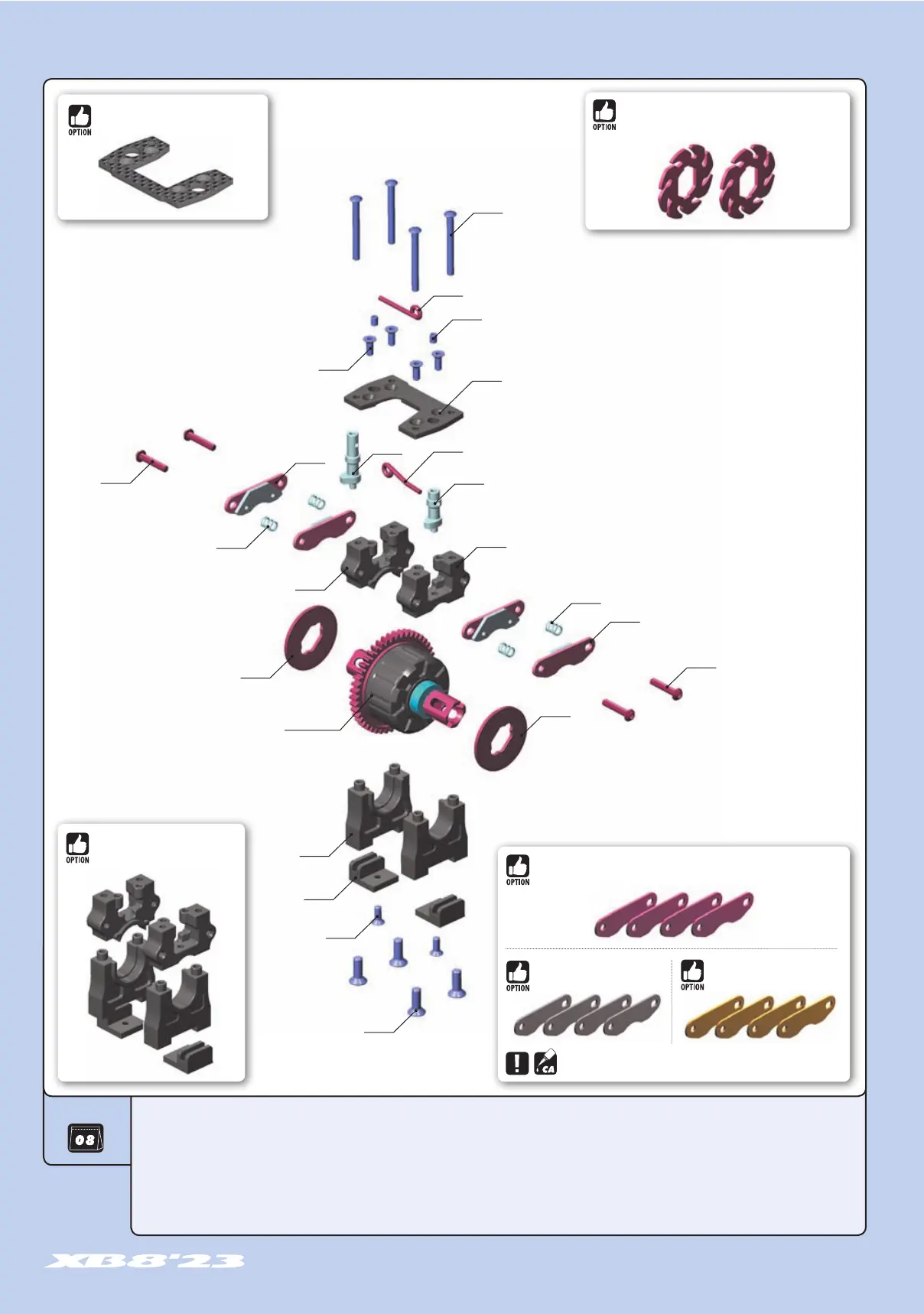

8. CENTER DIFF & BRAKE
BAG
354011 CENTER DIFF MOUNTING PLATE SET - HIGHER
354041 ALU BRAKE CAM POST & ROD (2+2) HARD COATED
354049 COMPOSITE CENTER DIFF MOUNTING PLATE
354073 BRAKE CAME ROD (1+1)
354110 VENTILATED BRAKE DISK - LASER CUT - PRECISION-GROUND
354131 GLUED BRAKE PAD SET - ULTRA-EFFICIENT (4)
354180 STEEL BRAKE PAD GUIDE PIN SCREW (2)
372176 SPRING 4.25 COILS 3.6x6x0.4MM; C=1.5 - GOLD (SOFT) (2)
901304 HEX SCREW SB M3x4 (10)
902330 HEX SCREW SH M3x30 (10)
903308 HEX SCREW SFH M3x8 (10)
903412 HEX SCREW SFH M4x12 (10)
355013 CENTER DIFFERENTIAL - LARGE - SET
355013
CENTER DIFF
354110
354110
354131
372176
354131
354041
354041
354049
903308
901304
354073
354073
902330
354011
354011
354180
354011
354011
903412
354180
372176
903308
#354113
SUPER-LIGHTWEIGHT VENTILATED BRAKE DISK -
PRECISION-GROUND (2)
#354132
BRAKE PAD “SLS” (4)
#354121
STEEL BRAKE PAD - LASER CUT (4)
It is necessary to glue the brake pad with strong CA glue suitable for steel.
#354130
BRAKE PAD FIBER (4)
#354057
GRAPHITE CENTER DIFF MOUNTING PLATE
#354011-G
CENTER DIFF MOUNTING PLATE SET
HIGHER - GRAPHITE
