Xray XB8 User Manual

35
Threadlock on all screws
Threadlock on all screws
7x10x0.2 / 0.3 / 0.5
Use appropriate shims to achieve
proper clutchbell endplay.
All screws
NOTE ORIENTATION
IMPORTANT!
When installing the engine, first check that the drive shaft does not
touch the engine. If it does, remove some material from the engine
mount as shown to make some room between engine and shaft.
908312
SCH M3x12
964073
S 7x10x0.2
964074
S 7x10x0.3
964075
S 7x10x0.5

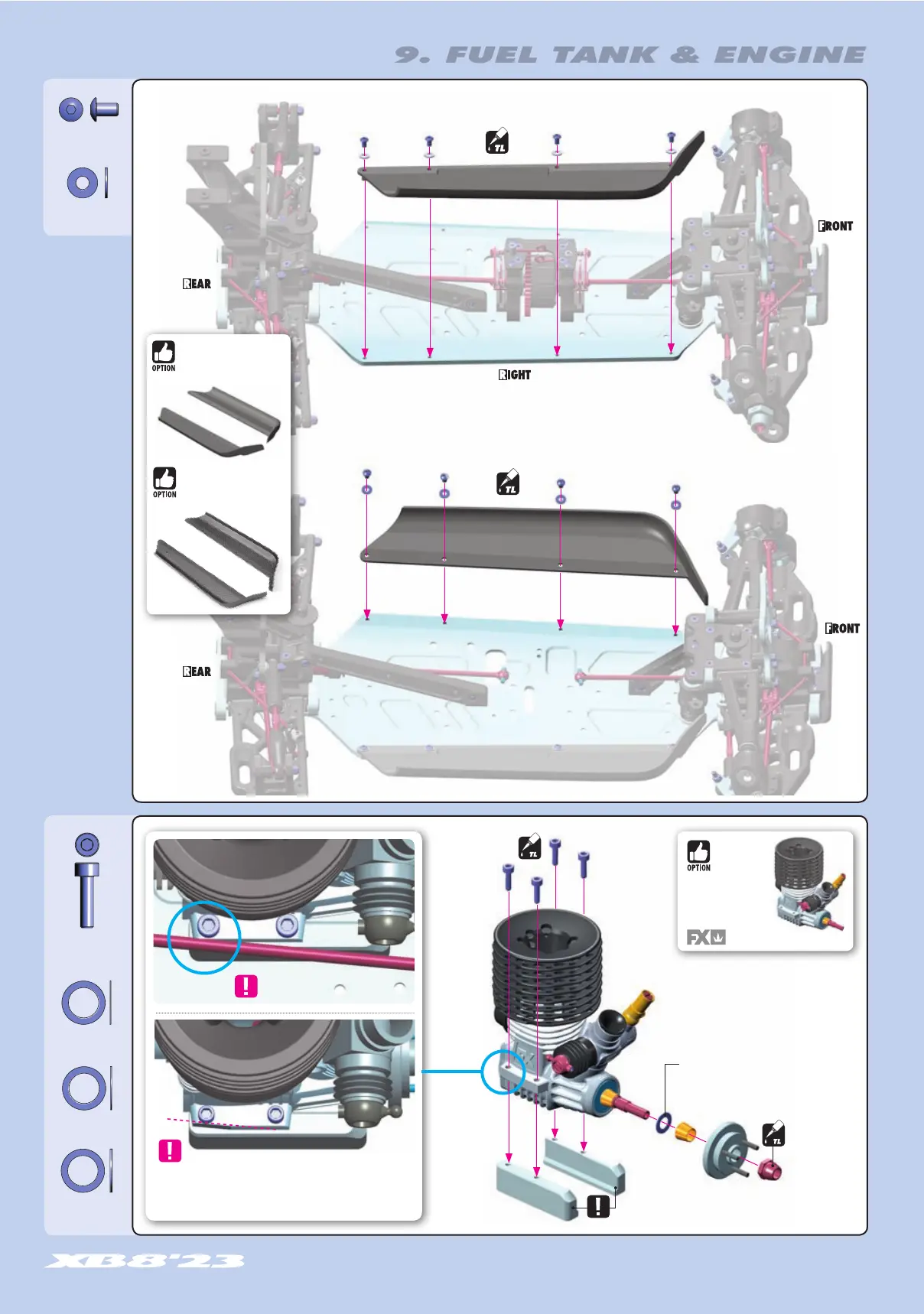

9. FUEL TANK & ENGINE
902305
SH M3x5
961032
S 3.2
#351159-S
COMPOSITE CHASSIS SIDE
GUARD L+R - SOFT
#351160
CARBON FIBER CHASSIS
SIDE GUARD L+R
EUROPEAN CHAMPION
FX ENGINES
(FX K303 #650105)
(FX K303L #650106)
(FX K502 #650304)

Xray XB8 Specifications

General

Scale	1/8
Drivetrain	4WD
Suspension	Independent
Chassis Material	Aluminum
Differential	Front, Center, Rear
