Xray XB8 User Manual

37
Cut away for
muffler outlet
Mufler screw
NOT INCLUDED

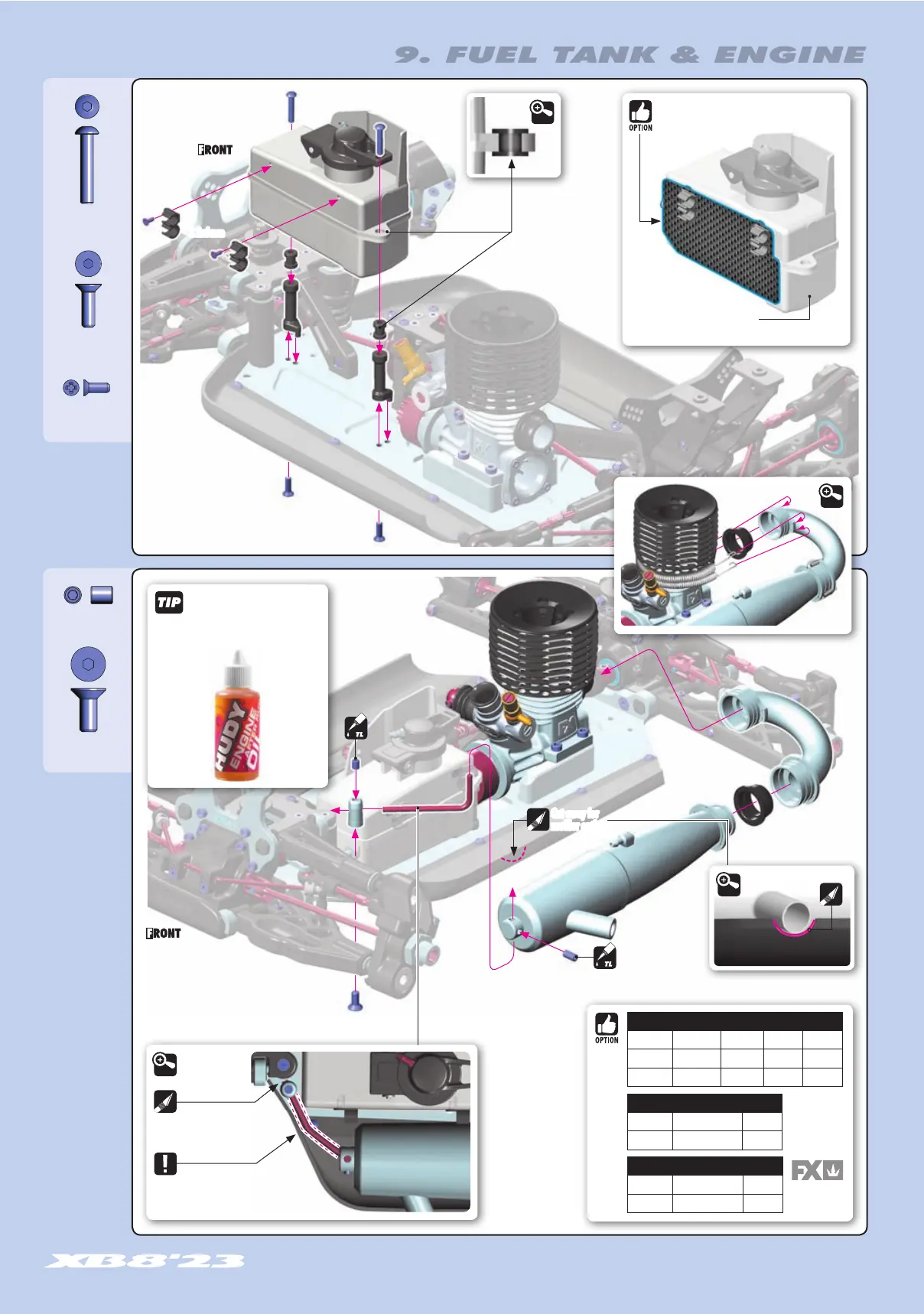

9. FUEL TANK & ENGINE
902316
SH M3x16
901405
SB M4x5
903410
SFH M4x10
903310
SFH M3x10
906206
SFP 2.2x6
3x10mm
3x16mm
2.2x6mm
DETAIL
DETAIL
DETAIL
Shorten the wire as
appropriate to fit the
muffler.
Bend the exhaust wire as
appropriate to fit the muffler.
DETAIL
After running your engine, apply
(#106250 HUDY ENGINE AFTER RUN OIL).
FX MANIFOLDS 3.5cc
#659704 MEDIUM OPTION
#659706 SHORT-MEDIUM OPTION
FX MUFFLER 3.5cc
#659503 EFRA 2131 OPTION
#659508 EFRA 2169 OPTION
FX MUFFLER & MANIFOLDS 3.5cc
#659505 EFRA 2131 MEDIUM CHROME OPTION
#659506 EFRA 2131 MEDIUM - OPTION
#659558 EFRA 2169 MEDIUM - OPTION
EUROPEAN
CHAMPION
#358660
GRAPHITE 125CC FUEL TANK GUARD
Fuel Tank
(NOT INCLUDED)
