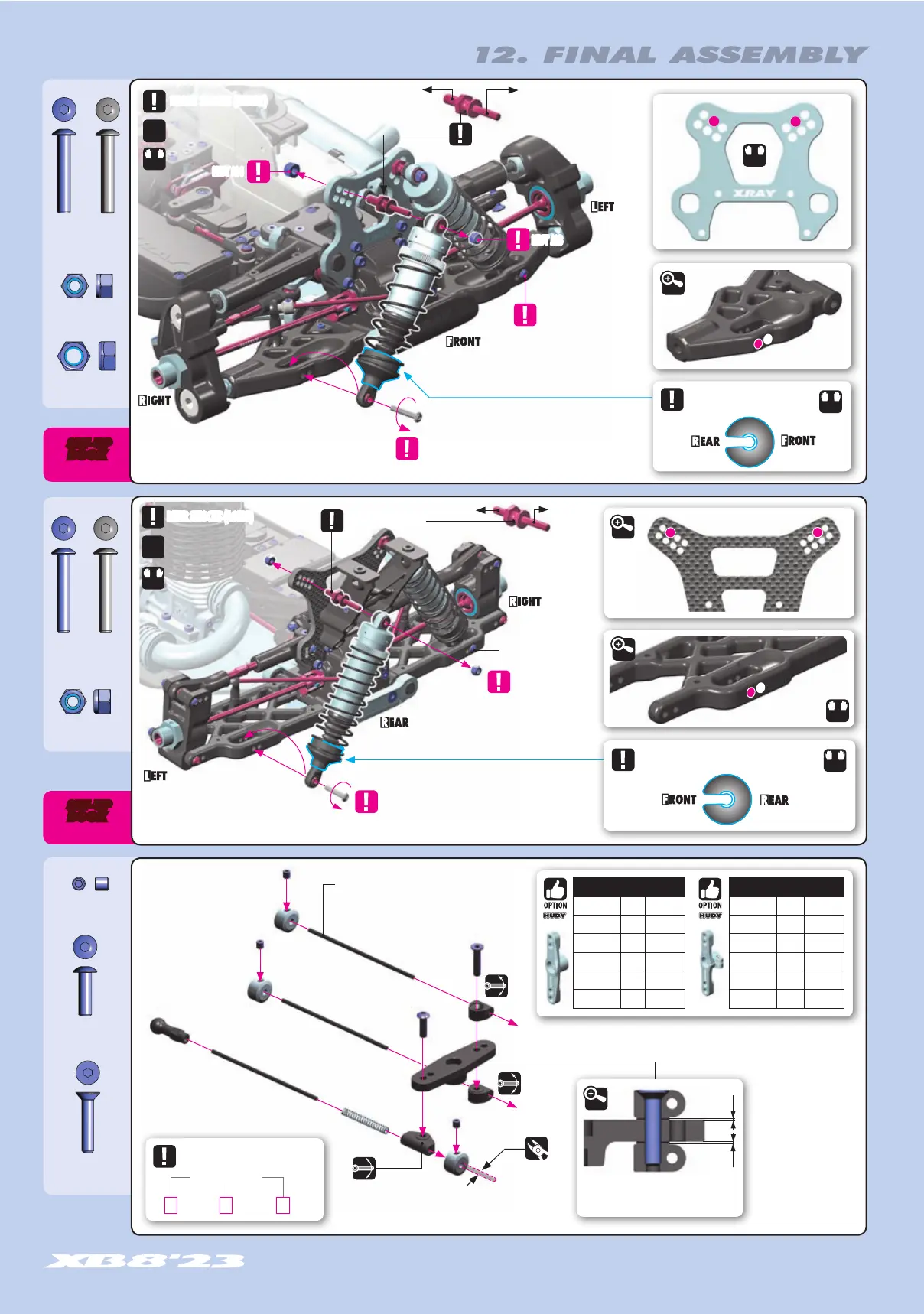

Xray XB8 User Manual

45
SHOCK ABSORBERS
SHOCK ABSORBERS
901303
SB M3x3
902310
SH M3x10
903314
SFH M3x14
960030
N M3
902319
SH M3x18
LEFT thread
902318
SH M3x18
FRONT SHOCKS (SHORT)
NOTE ORIENTATION
SHORTER M4
LONGER M3
On the front right arm use the SILVER M3x18
screw - this screw has LEFT THREAD.
Use STANDARD
M3x18 screw
3x18mm
L=R
2x
902319
SH M3x18
LEFT thread
960030
N M3
960040
N M4
902318
SH M3x18
12. FINAL ASSEMBLY
REAR SHOCKS (LONG)
On the rear left arm use the SILVER M3x18
screw - this screw has LEFT THREAD.
Use STANDARD
M3x18 screw
M3x18mm
NOTE ORIENTATION
SHORTER LONGER
L=R
DETAIL
INITIAL SETTING
INITIAL SETTING
L=R
2x
Tighten screw until snug.
Pivots should move freely.
Small gap
Small gap
DETAIL
Brake rod
Throttle rod
Thread brake rods into plastic
pivots until flush with outer end.
Brake rod
Cut off
remaining
material
INITIAL SETTING
INITIAL SETTING
DETAIL
BOOK
SET-UP
BOOK
SET-UP
CLAMP ALU SERVO HORNS
#293444 23T OPTION
#293445 24T OPTION
#293446 25T OPTION
#293447 23T OPTION
#293448 24T OPTION
#293449 25T OPTION
ALU SERVO HORNS
#293504 23T OPTION
#293505 24T OPTION
#293506 25T OPTION
#293507 23T OPTION
#293508 24T OPTION
#293509 25T OPTION
NUT M3
NUT M4
DETAIL
L=R
INITIAL SETTING
NOTE ORIENTATION
Shock cap
L=R
NOTE ORIENTATION
Shock cap
L=R
Use servo horn to match your servo.
K (23T) H (24T) F (25T)
Market servo horn
