CUTTING LINE
SIDE VIEW
➍
Before cutting and making holes on the body, put the unpainted body on the chassis to confirm the
mounting position and location for holes and cutouts.
Before painting, wash the inside of the body with mild detergent, and then rinse and dry thoroughly.
Mask all windows.
Apply paint masks as appropriate.
Paint the body using paints formulated for polycarbonate bodies.
When the paint is dry, remove the masking.
Carefully cut out the body using appropriate scissors or cutting tools.
When you have finished cutting, peel off the external protective films.
➊
➋
➌
➎
➏
➐
➑

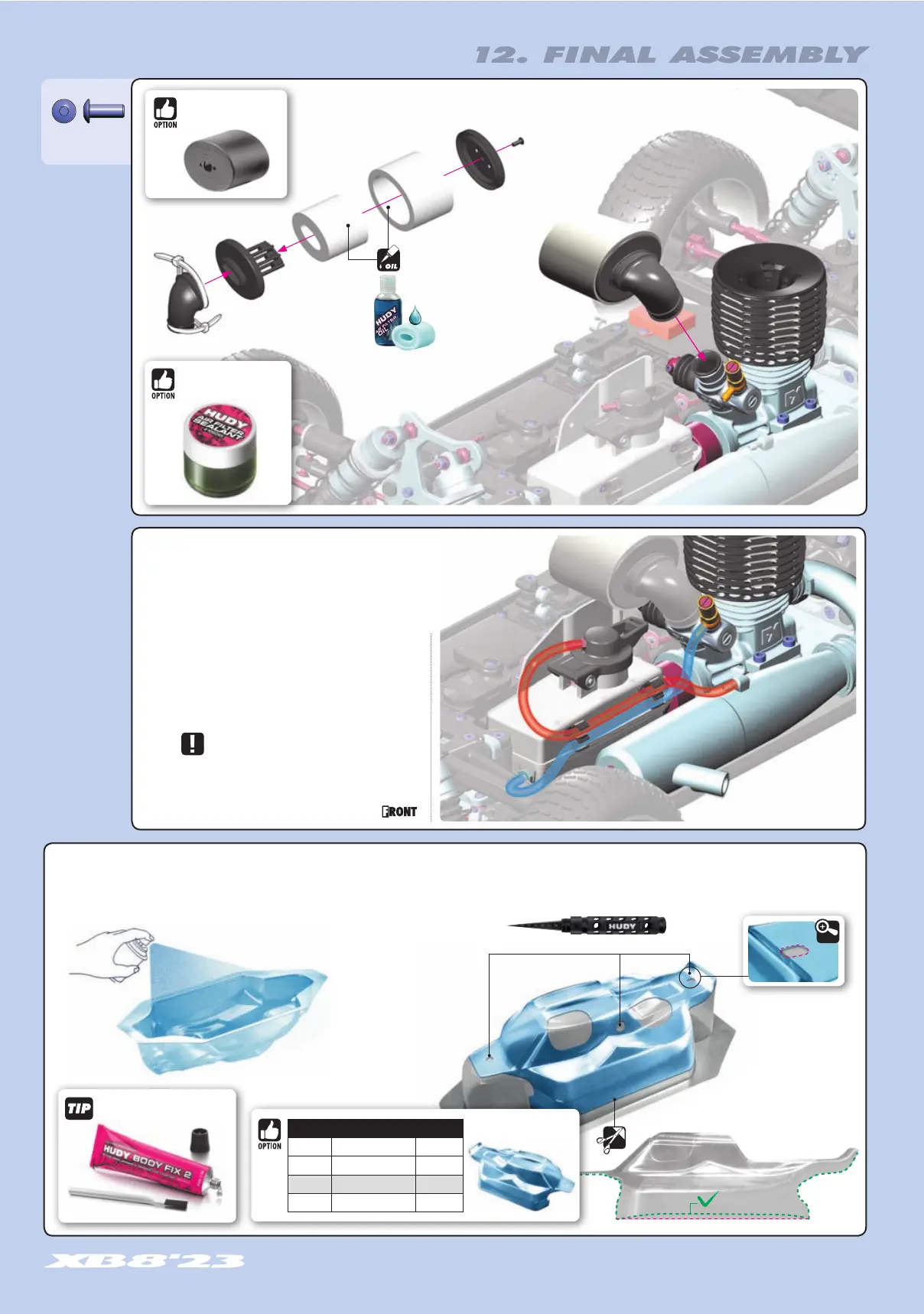

Cut the silicone tube depending on engine and muffler.
Use the plastic clips to hold the tubes together.
SILICONE TUBE MARKED AS
BLUE = FROM FUEL TANK TO CARBURETOR
SILICONE TUBE MARKED AS
RED = FROM MUFFLER TO FUEL TANK (TOP)
Keep fuel line away from
clutchbell and flywheel.
902308
SH M3x8
#358832
AIR FILTER RAIN COVER
Body Reamer (HUDY #107602)
Be sure to make this rear
body mount hole oval so in
the case of chassis flex after
a big jump the body mount
will not tear up the hole.
DETAIL
#106245
HUDY AIR FILTER SEALANT
XRAY XB8 BODIES
#359711 HIGH-SPEED OPTION
#359712 HIGH-SPEED LIGHT. OPTION
#359713 "EAZY" INCLUDED
#359714 "EAZY" LIGHT. OPTION
To reinforce the body or to fix broken
body use #106281 HUDY BODY FIX.
Apply #106240 HUDY air
filter oil and follow the
engine instructions to service
the air filter.
