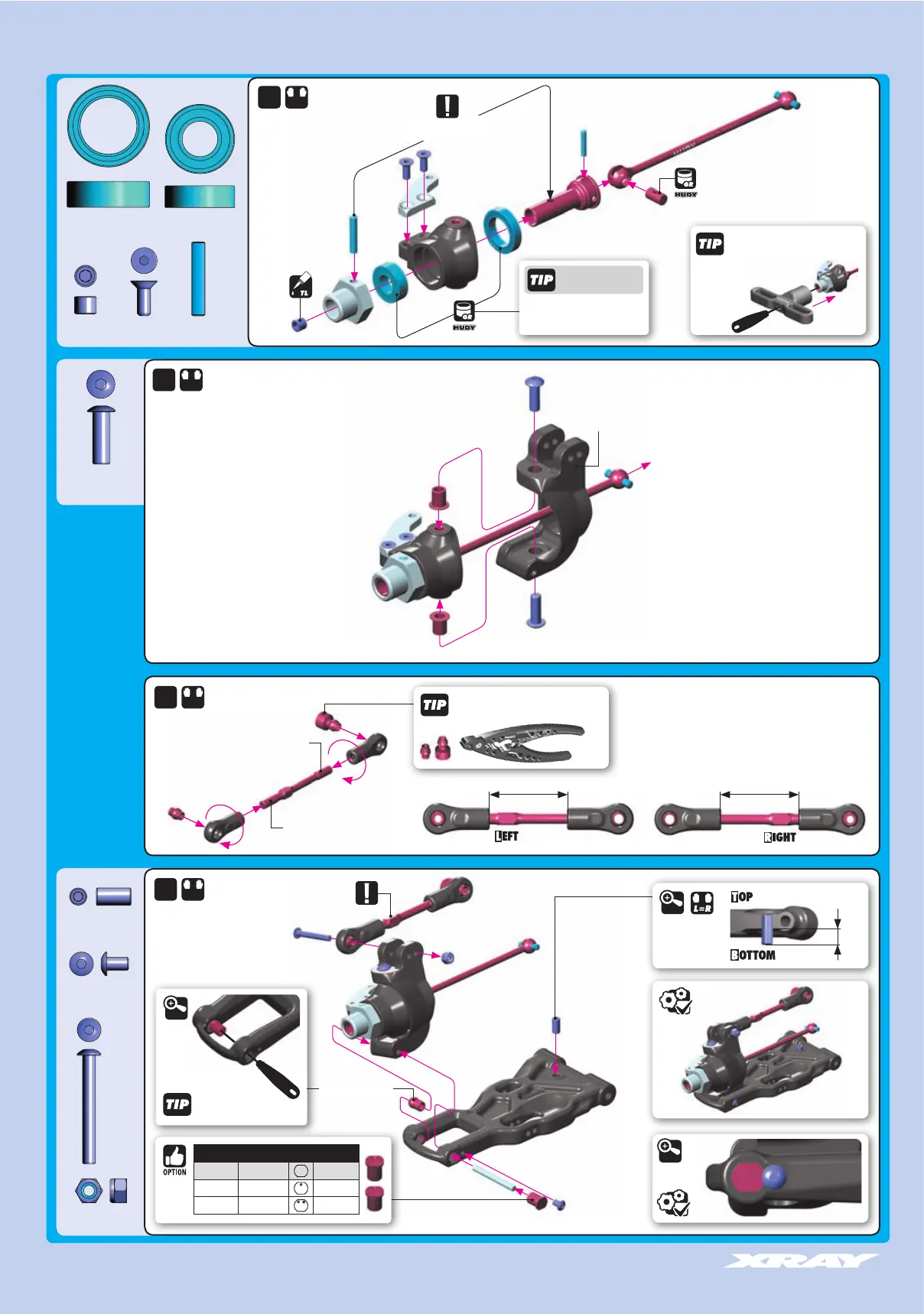

Xray XB8 - Page 52

52
901408
SB M4x8
940816
BB 8x16x5
941318
BB 13x19x4
901504
SB M5x4
980317
P 3x17
903308
SFH M3x8
902412
SH M4x12
FRONT C-HUB SUSPENSION
LEFT THREAD
RIGHT THREAD
21.5mm21.5mm
Install the pivot balls with Professional
Multi-Tool (HUDY #183011).
➊
➊
➌
➌
Marked “R“
➋
Use HUDY Ball-Bearing
Grease for servicing:
#106220 - Standard
#106221 - Extra
#106222 - Premium
L=R
2x
L=R
2x
L=R
2x
L=R
2x
2.5mm
To tighten the setscrew you can
also use the HUDY 17mm Wheel
Nut Tool #107570.
NOTE
ORIENTATION
SHORT
LONG
NOTE ORIENTATION
902305
SH M3x5
➋
➌
➏
➐
➍
➎
DETAIL
Press pivot ball into
arm until it snaps into place.
2.5 mm
902325
SH M3x25
960030
N M3
DETAIL
0.0mm
DOWNSTOP SETTING
STEP ➊ DETAIL
STEP ➐ DETAIL
DETAIL
ECCENTRIC BUSHINGS
#352170 0° - STEEL
INCLUDED
#352174 1° - STEEL
OPTION
#352175 2° - STEEL
OPTION
Graphite Grease
(HUDY #106210)
8x16x5
13x19x4
