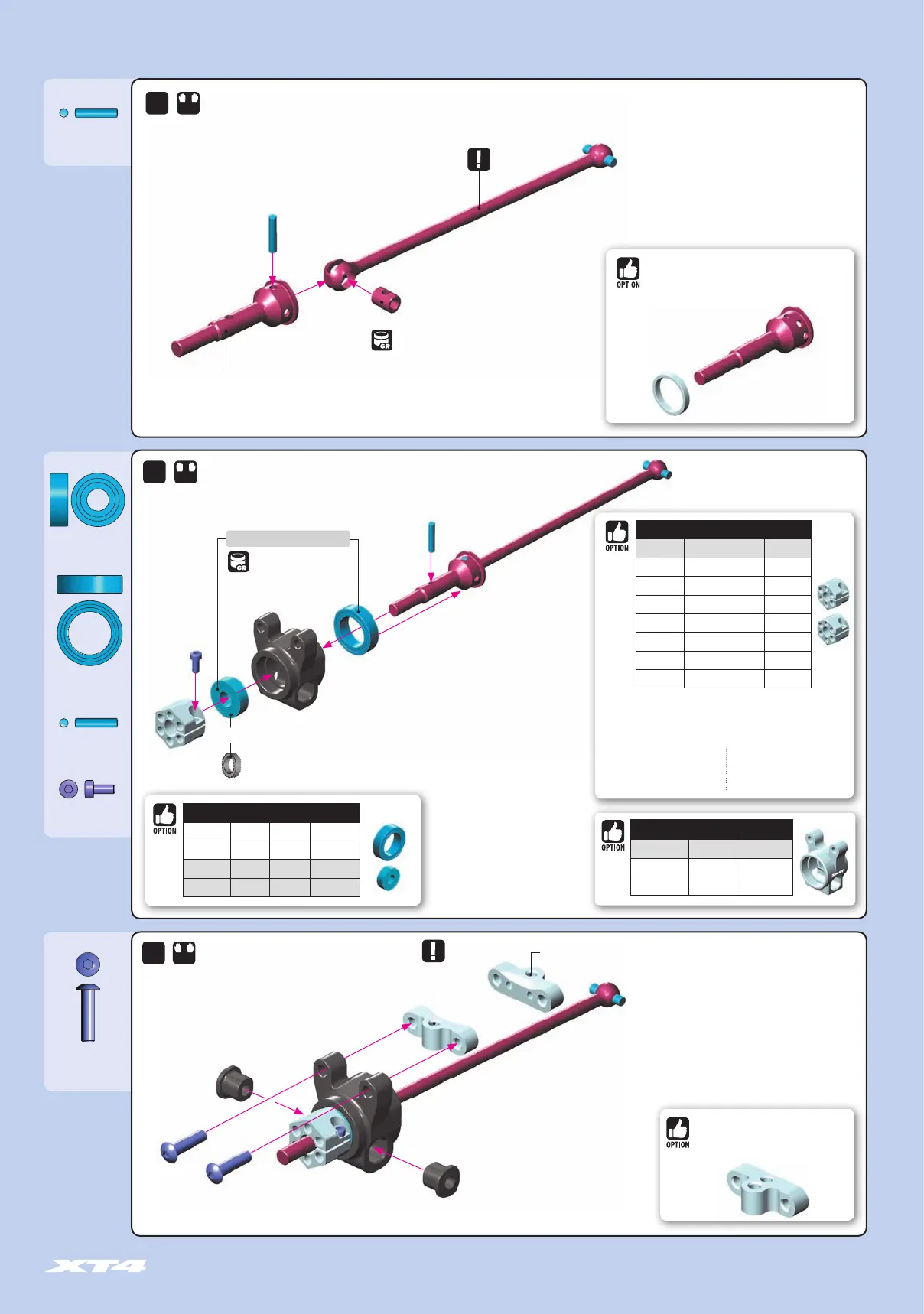

4. REAR TRANSMISSION
INITIAL SETTING
ALTERNATIVE ORIENTATION
902312
SH M3x12
#323381
ALU REAR HUB PLATE FOR MULTI ADJ.
UPRIGHT - 2-HOLE - SWISS 7075 T6
NOTE ORIENTATION
2x
2x
2x
L=R
L=R
L=R
LONG AXLE
➊
➊
➋
➌
➍
➎
➏
➋
➌
940513
BB 5x12x4
902205
SH M2x5
980210
P 2x10
980210
P 2x10
10x15x4mm
5x12x4mm
DRIVE SHAFT (92mm)
#106210 HUDY GRAPHITE GREASE
#106213 HUDY JOINT GREASE - OPTION
REAR UPRIGHTS
#323354-H HARD INCLUDED
#323354-G GRAPHITE OPTION
#323355 ALU OPTION
941014
BB 10x15x4
Use HUDY Ball-Bearing Grease
#106220 - STANDARD
#106221 - BLUE
#106222 - RED
XRAY BALL-BEARINGS
#940512 5x12x4 OIL OPTION
#941015 10x15x4 OIL OPTION
#940513 5x12x4 GREASE INCLUDED
#941014 10x15x4 GREASE INCLUDED
OPTIONAL HEX HUB EFFECTS
Different offset hex hubs are used to increase or
decrease the track-width.
LESS OFFSET
Rear - more traction
Front - more steering
MORE OFFSET
Rear - less traction
Front - less steering
WHEEL HUBS 12MM
#365360 +4.5mm - 6 slots INCLUDED
#365359 +3.75mm - 5 slots OPTION
#365358 +3.0mm - 4 slots OPTION
#365357 +2.25mm - 3 slots OPTION
#365356 +1.5mm - 2 slots OPTION
#365355 +0.75mm - 1 slot OPTION
#365353 0mm - 0 slots OPTION
#365354 -0.75mm - Lightw. OPTION
Bearing with BLACK
rubber covers
#325341
REAR ADJUSTABLE DRIVE AXLE LB - HUDY SPRING
STEEL™ + 325390 ALU SHIM 10x12x2MM (2)
