39
902312
SH M3x12
902312
SH M3x12
ALU NUTS M3
#296530-B BLUE OPTION
#296530-K BLACK OPTION
#296530-O ORANGE OPTION
#960030 STEEL INCLUDED
#960031 SILVER OPTION

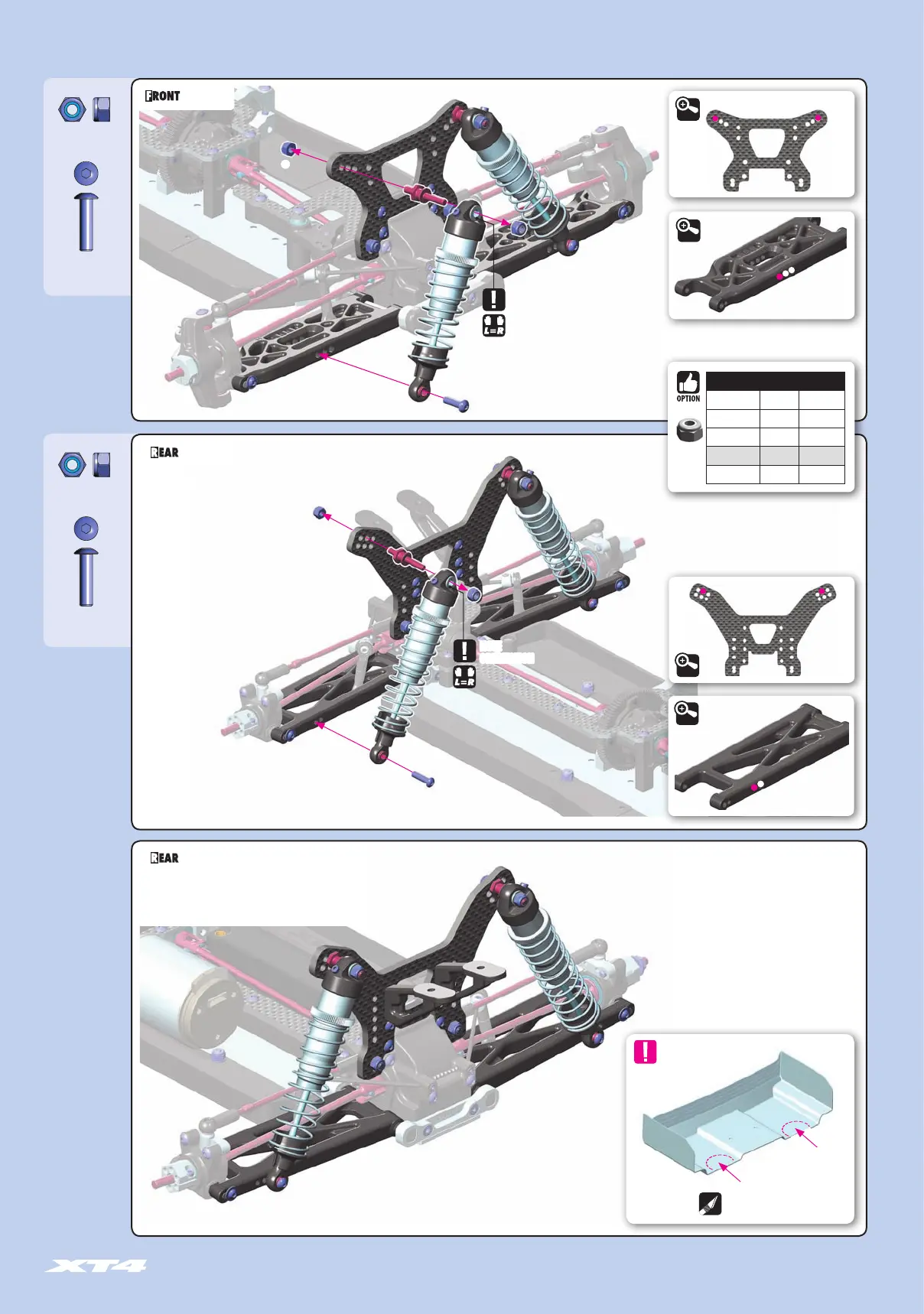

8. FINAL ASSEMBLY
960030
N M3
960030
N M3
➊
➍
➌
NOTE
ORIENTATION
➊
➌
➋
➍
NOTE
ORIENTATION
➋
SHOCKS
For the rear shock position cut
holes into the Lexan rear wing.
SHOCKS
SHOCKS
(INITIAL SETTING)
SHOCKS MOUNTED IN FRONT OF REAR SHOCK TOWER
ALTERNATIVE 1
DO NOT USE FOR BASIC SET-UP
SHOCKS MOUNTED BEHIND REAR SHOCK TOWER
ALTERNATIVE 2
INITIAL POSITION
DETAIL
INITIAL POSITION
DETAIL
INITIAL POSITION
DETAIL
INITIAL POSITION
DETAIL
