Xray XT4 User Manual

40

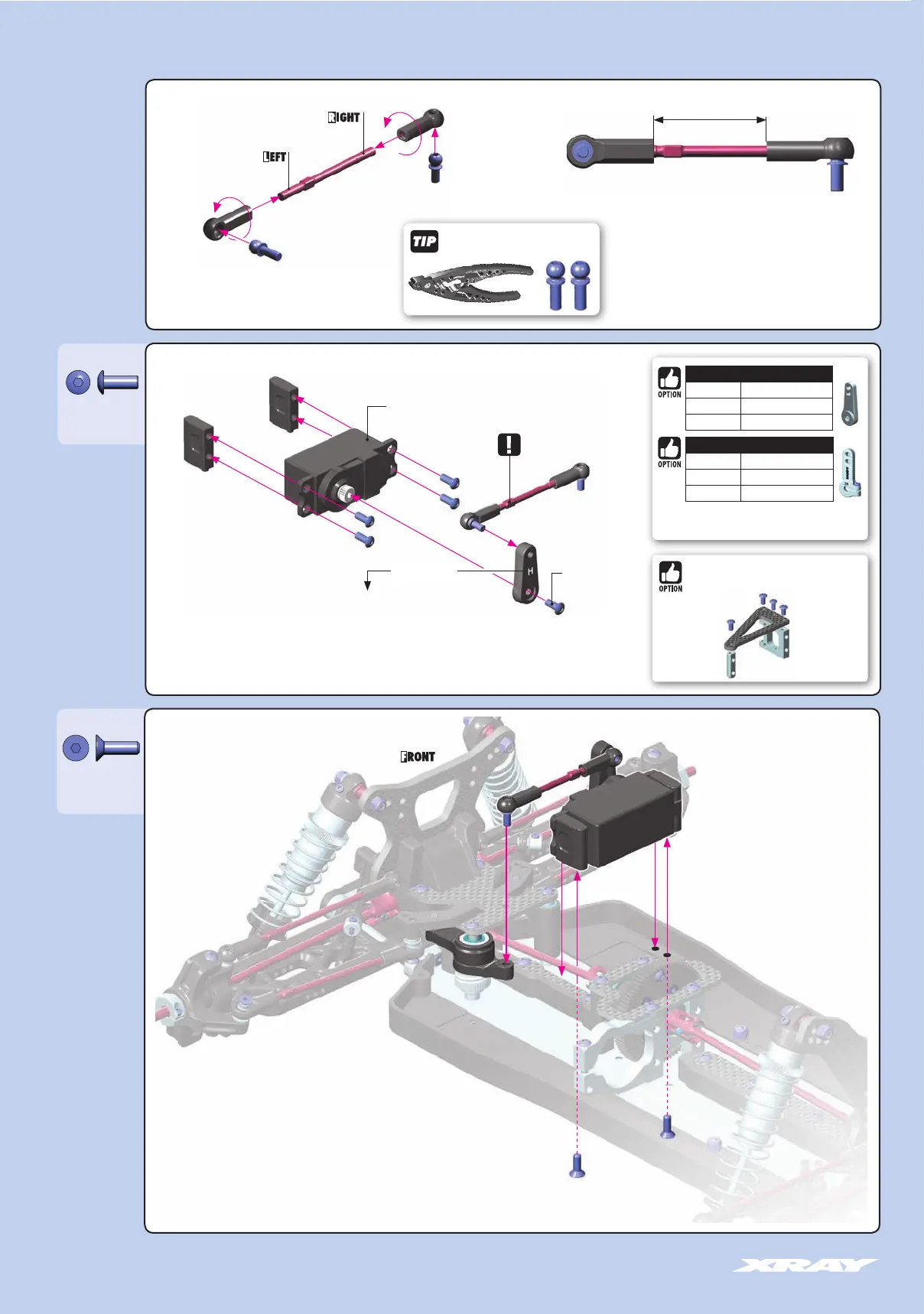

8. FINAL ASSEMBLY
903310
SFH M3x10
902308
SH M3x8
NOTE
ORIENTATION
Use appropriate servo arm:
K - (23T) KO Propo / JR / Sanwa / Multiplex
H - (24T) Hitec
F - (25T) Futaba / Savox
Servo screw
(NOT INCLUDED)
Servo
(NOT INCLUDED)
HUDY ALU SERVO HORNS
#293497 23T
#293498 24T
#293499 25T
HUDY CLAMP ALU SERVO HORNS
#293404 23T
#293405 24T
#293406 25T
For more in-corner steering and better steering
response, aluminum servo horns may be used.
#366220
INDEPENDENT SERVO MOUNT - SET
28mm
Market "K-H-F"
THREAD
THREAD
6mm THREAD
6mm THREAD
SERVO LINK
Adjust servo link to fit your servo.
Install the pivot balls with Professional
Multi Tool (HUDY #183011)
