3. REAR SUSPENSION
909395
SS 3.5x45
909372
SS 3.5x22
901408
SB M4x8
353371
SHIM 4x10x2
Check for free movement.
➊
➊
➋
➌
➌
➍
➍
➎
2mm
RR
RF
All possible mounting
alternatives of eccentric bushings.
Push the arm from both sides to create play.
INITIAL SETTING
RF
0.5°
1°
INITIAL SETTING
RR
0.5°
1°
DETAIL DETAIL
(HUDY #107644)
ARM REAMER
If the suspension arm does not move
freely use a HUDY Arm Reamer to
resize the holes of the arms.
DETAIL
ECCENTRIC BUSHINGS HAVE TWO DIFFERENT OFFSETS FROM THE CENTER.
Middle position = 0.5 mm or 0.5° from center
Outer position = 1mm or 1° from center

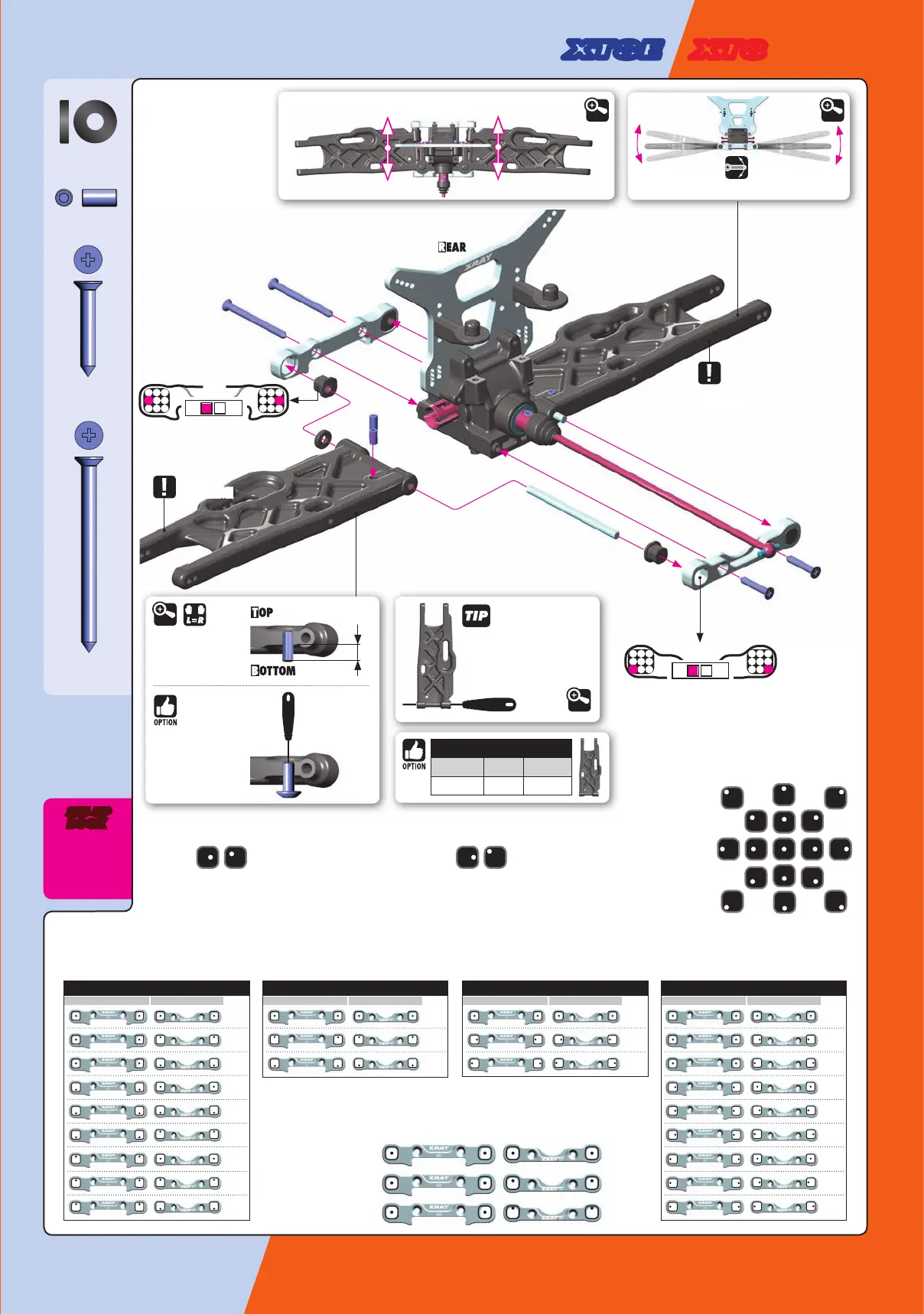

The XRAY rear alu lower suspension holders provide even greater range of adjustment for the rear suspension. Using different combinations of eccentric bushings, fine adjustment of rear anti-squat, rear
toe-in, rear roll center, and rear track-width can be obtained. For more information about the influence of rear anti-squat, rear toe-in, rear roll center and rear track-width on car handling, please refer to
HUDY Off-Road Set-up Book (#209099).
The tables describe the amounts of rear anti-squat, rear toe-in, rear track-width change depending
on the combinations of eccentric bushings used with 0 and 1mm, 1° offset. The 0.5mm, 0.5° represents
the half change.
Anti-Squat Example:
0(RR) - 0 (RF) = 3°
0(RR) - 0.5 (RF) = 3.5°
0(RR) - 1 (RF) = 4°
ANTI-SQUAT ROLL CENTER TRACK-WIDTH TOE-IN
RR RR RR RRRF RF RF RF(°) (mm) (mm) (°)
=3°
=4°
=2°
=4°
=3°
=5°
=2°
=3°
=1°
= 3°
= 3.5°
= 4°
=0
mm
=1mm
=-1mm
=0
=-2
=+2
=3°
=4°
=2°
=2°
=3°
=1°
=4°
=5°
=3°
3.5x45mm
3.5x22mm
BOOK
SET-UP
REAR SUSPENSION ARMS
#353129 MEDIUM INCLUDED
#353129-H HARD OPTION
NOTE
ORIENTATION
NOTE
ORIENTATION
3.0mm
DOWNSTOP SETTING
DETAIL
2.0mm Allen
#902407
Downstop screw
for fine tuning.
To Next Page
