20
XT8XT8E

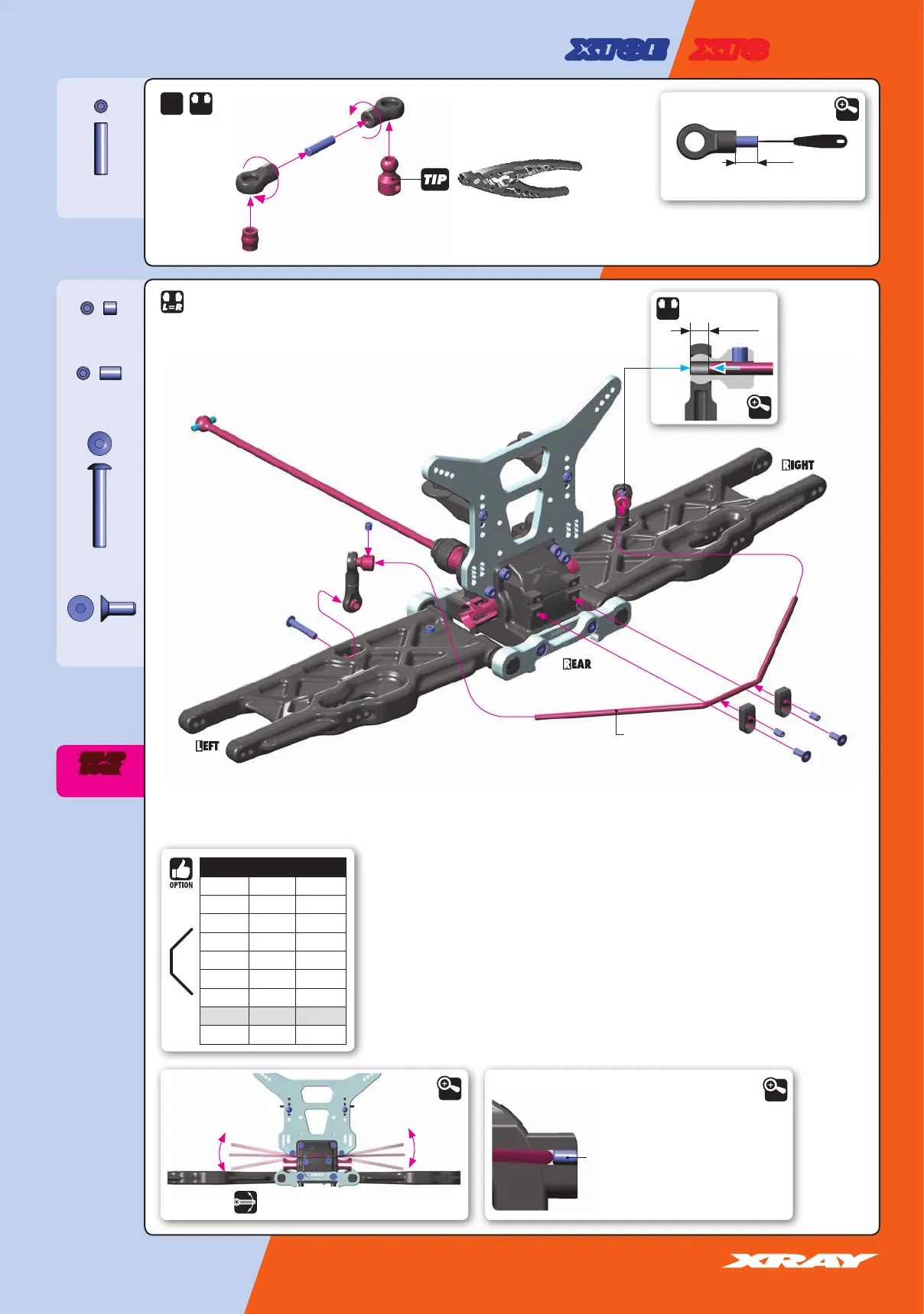

3. REAR SUSPENSION
ANTI-ROLL BAR
901303
SB M3x3
901305
SB M3x5
901312
SB M3x12
902318
SH M3x18
903308
SFH M3x8
1.5mm
6mm
DETAIL
-1~ -3mm
L=R
STEP DETAIL
DETAIL
Loosen the 3x5 setscrew if the
anti-roll bar does not turn freely.
Step
DETAIL
Step check for free movement.
DETAIL
REAR ANTI-ROLL BARS
#353418 ø1.8mm OPTION
#353420 ø2.0mm OPTION
#353422 ø2.2mm OPTION
#353424 ø2.4mm OPTION
#353425 ø2.5mm OPTION
#353426 ø2.6mm OPTION
#353428 ø2.8mm OPTION
#353430 ø3.0mm INCLUDED
#353432 ø3.2mm OPTION
L=R
2x
3x5mm
3x8mm
ø3.0mm
3x3mm
3x18mm
BOOK
SET-UP
Install the pivot balls with Professional
Multi Tool (HUDY #183011).
