21
XT8XT8E
355292
P 3x16.8
901504
SB M5x4
940816
BB 8x16x5
941318
BB 13x19x4
941318
BB 13x19x4
➊
➋
➌
➏
➍
➎
➎
➐
➑
To tighten the setscrew you can also use the
HUDY 17mm Wheel Nut Tool #107570.
2.5mm
DETAIL
8x16x5mm
13x19x4mm
980263
P 2.5x13
3x16.8mm
2.5x13mm

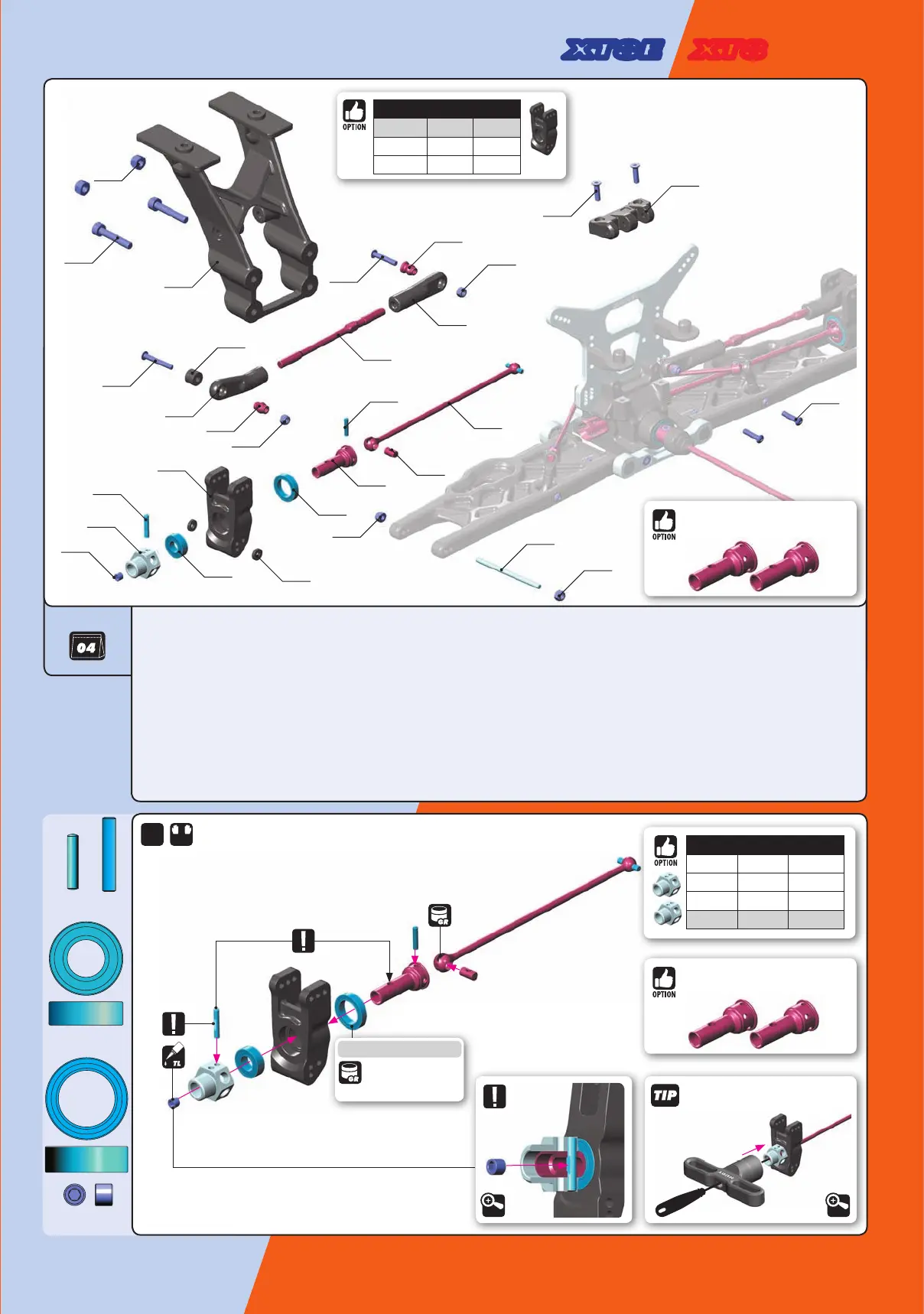

4. REAR SUSPENSION
352638 ADJ. TURNBUCKLE M5 L/R 91 MM - HUDY SPRING STEEL™ (2)
353020 COMPOSITE REAR BRACE HOLDER
353130 REAR UPPER INNER CAMBER LINK BALL JOINT (2)
353151 RELIEF REAR UPPER OUTER CAMBER LINK BALL JOINT (2)
353160 MOUNTING BALL 6.8 (4)
353170 PIVOT BALL 6.8 (4)
353370 SET OF COMPOSITE REAR HUB CARRIER SHIMS
353354 COMPOSITE REAR UPRIGHT LB
353524 COMPOSITE REAR WING HOLDER
355211 CVD DRIVE AXLE - HUDY SPRING STEEL™
355237 CVD DRIVE SHAFT COUPLING - HUDY SPRING STEEL™
355255 ALU WHEEL AXLE OFFSET "+5MM" - HARDCOATED (2)
355283 CVD DRIVE SHAFT 138MM - HUDY SPRING STEEL™
BAG
2x
L=R
355292 PIN WITH FLAT SPOT 3x16.8 (2)
357332 REAR LOWER OUTER PIVOT PIN (2)
901504 HEX SCREW SB M5x4 (10)
902314 HEX SCREW SH M3x14 (10)
902318 HEX SCREW SH M3x18 (10)
902330 HEX SCREW SH M3x30 (10)
903312 HEX SCREW SFH M3x12 (10)
908318 HEX SCREW SOCKET HEAD CAP M3x18 (10)
940816 BALL-BEARING 8x16x5 RUBBER SEALED - GREASE (2)
941318 BALL-BEARING 13x19x4 RUBBER SEALED - GREASE (2)
960030 NUT M3 (10)
980263 PIN 2.5x13 (10)
353130
355283
355237
355211
941318
353370
940816
357332
960030
353020
902314
355292
353354
355255
901504
960030
352638
908318
960030
353524
353151
903312
902330
353170
960030
902318
353354
353160
960030
980263
NOTE ORIENTATION
NOTE
ORIENTATION
NOTE
ORIENTATION
Use HUDY Ball-Bearing Grease
#106220 - STANDARD
#106221 - BLUE
#106222 - RED
DETAIL
OFFSET WHEEL AXLES
#355251 0mm OPTION
#355251 +1mm OPTION
#355252 +2mm OPTION
#355255 +5mm INCLUDED
#355215 CVD ADJUSTABLE DRIVE AXLE -
HUDY SPRING STEEL™ (2)
#355215 CVD ADJUSTABLE DRIVE AXLE -
HUDY SPRING STEEL™ (2)
REAR UPRIGHTS
#353354 MEDIUM INCLUDED
#353354-H HARD OPTION
#353354-G GRAPHITE OPTION
