Xray XT8 User Manual

22
XT8XT8E

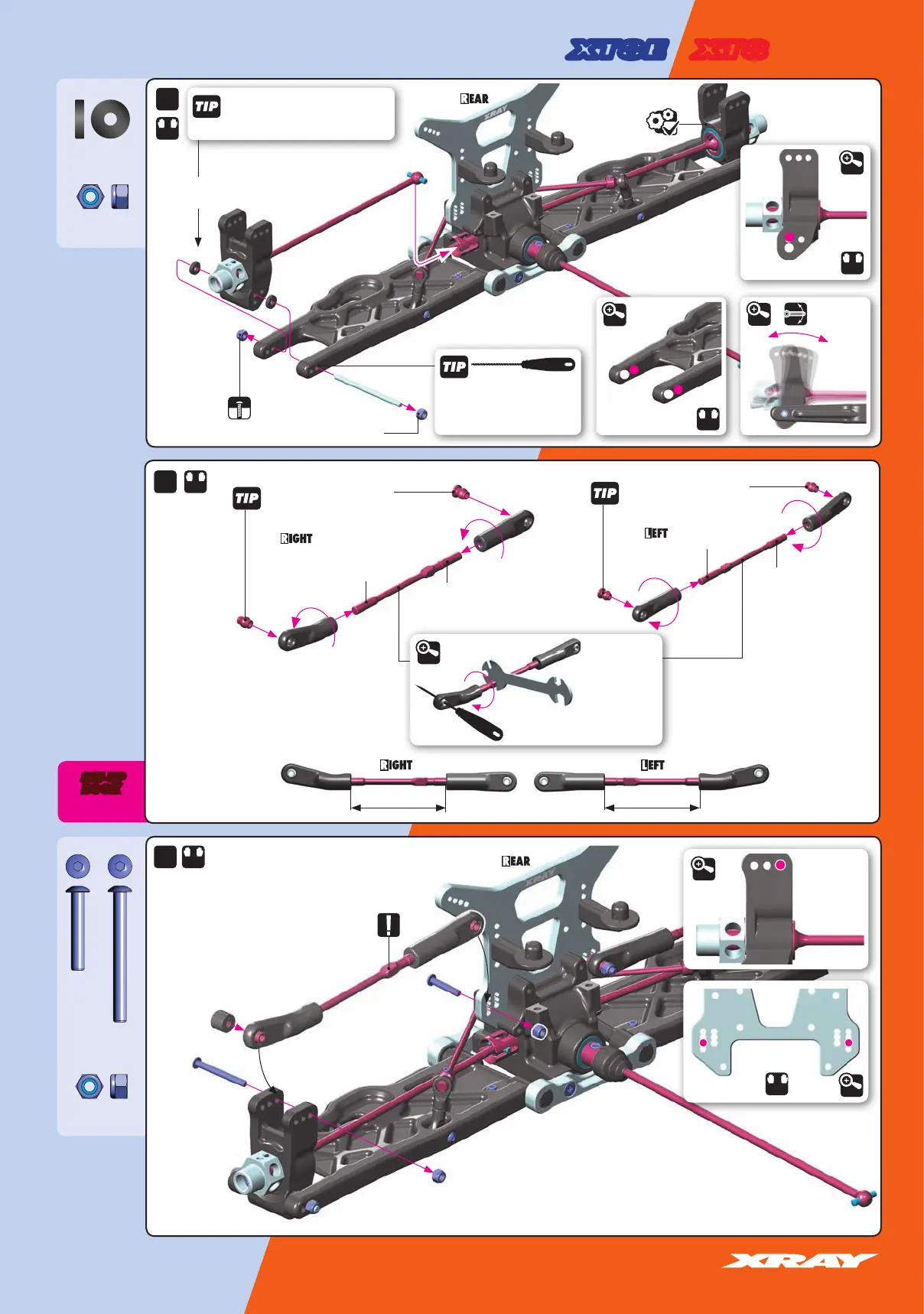

4. REAR SUSPENSION
CAMBER
960030
N M3
902318
SH M3x18
902330
SH M3x30
960030
N M3
Ensure that the rear upright moves freely.
If it does not move freely, use sandpaper
to thin both wheelbase adjustment shims.
Do not overtighten the
self-locking nut. Overtightening
may result in suspension binding.
If the rear upright does not move
freely, use a HUDY Arm Reamer to
resize the hole (HUDY #107643).
ARM REAMER
2x
L=R
Check for free
movement.
2x
2x
L=R
L=R
NOTE
ORIENTATION
DETAIL
INITIAL SETTING
L=R
INITIAL SETTING
L=R
DETAIL
Follow the TECH TIP on page 5
to install the pivot balls.
Use tools to
tighten as shown.
Special Tool for all
turnbuckles, nuts
(HUDY #108090).
56.5mm
RIGHT
THREAD
LEFT
THREAD
Right threadLeft thread
56.5mm
RIGHT
THREAD
LEFT
THREAD
Follow the TECH TIP on page 5
to install the pivot balls.
DETAIL
DETAIL
INITIAL
SETTING
DETAIL
INITIAL SETTING
L=R
DETAIL
Right thread Left thread
353370
SHIM 3x9x2
2mm
2mm
Shims for wheelbase
adjustment
3x18mm
3x30mm
BOOK
SET-UP

Xray XT8 Specifications

General

Scale	1/8
4WD/2WD	4WD
Width	300 mm
Chassis Material	Aluminum
Shock Type	Oil-filled
Height	180mm
Gear Type	Spur Gear
